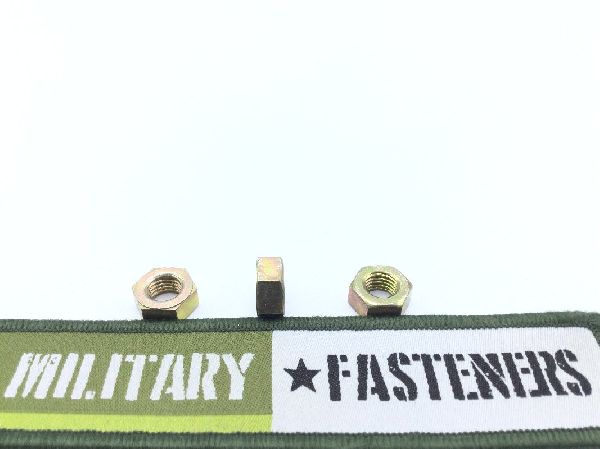

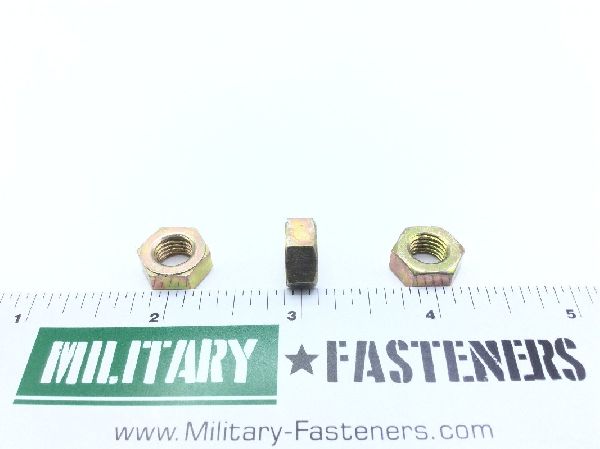

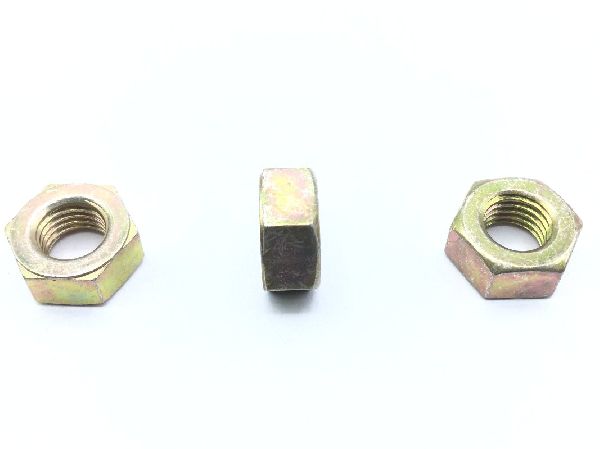

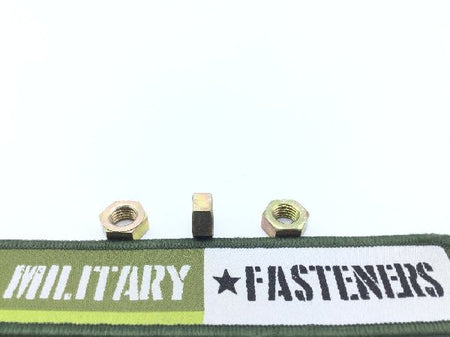

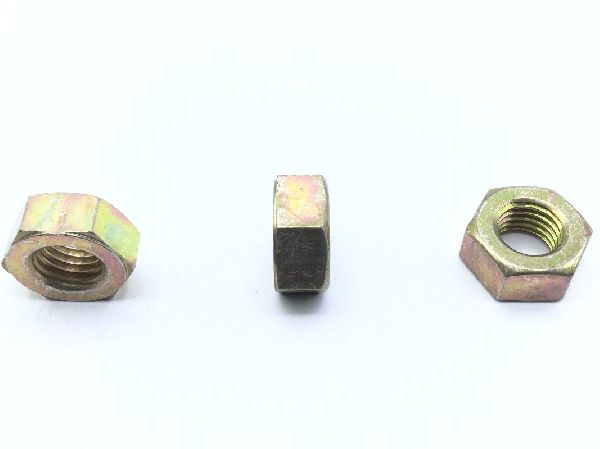

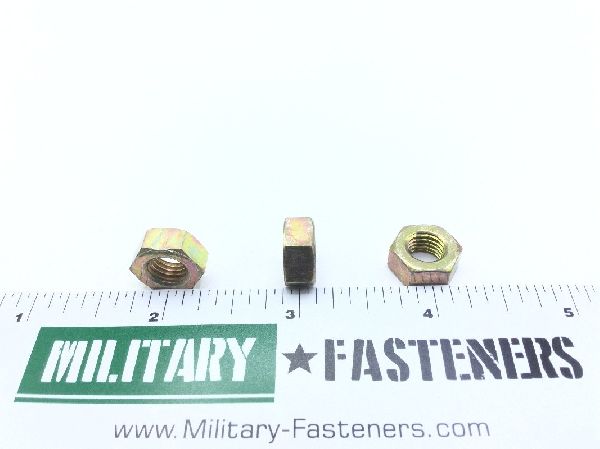

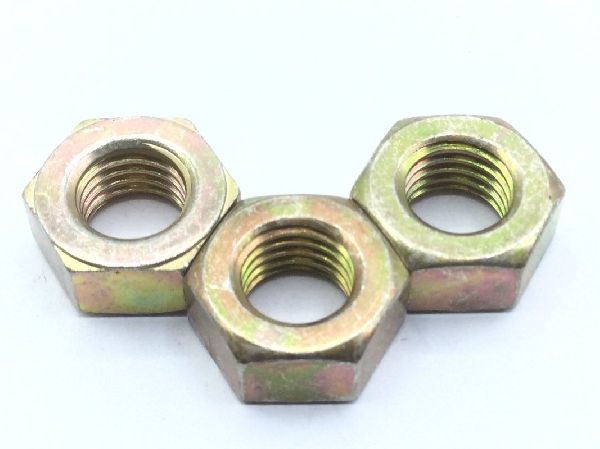

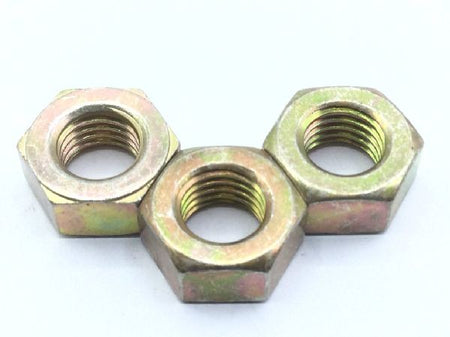

AN315-5R Plain Hexagon Nut

AN315-5R Plain Hexagon Nut (2)

AN315-5R Plain Hexagon Nut (3)

AN315-5R Plain Hexagon Nut (4)

AN315-5R Plain Hexagon Nut (5)

AN315-5R Plain Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN315-5R Plain Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $0.36

Units per Pack 100

Price per Pack $36.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $36.00

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.312 inches

Bearing Surface Type: Washer faced
Countersink Angle: 110.0 degrees nut
Nondefinitive Specification/std Data: 2 type
Nut Height: 0.234 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.490 inches and 0.502 inches
