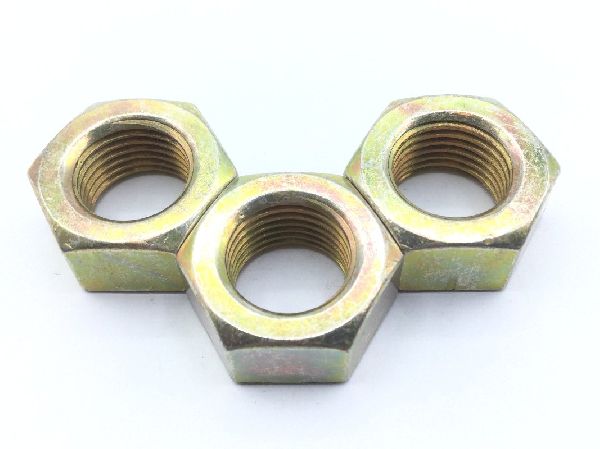

AN315-8R Plain Hexagon Nut

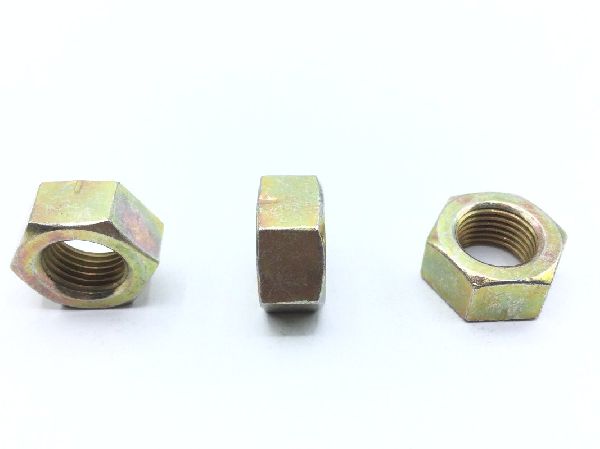

AN315-8R Plain Hexagon Nut (2)

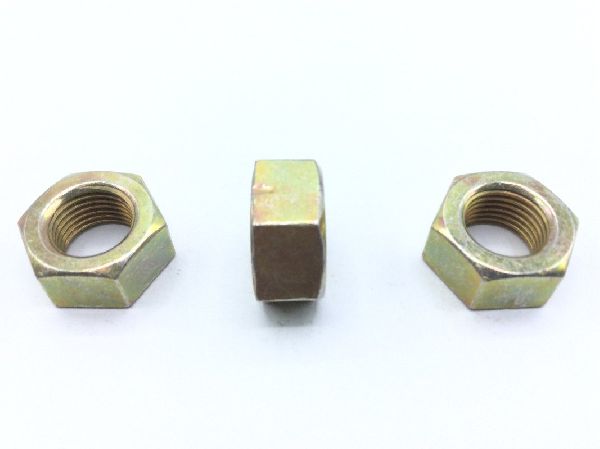

AN315-8R Plain Hexagon Nut (3)

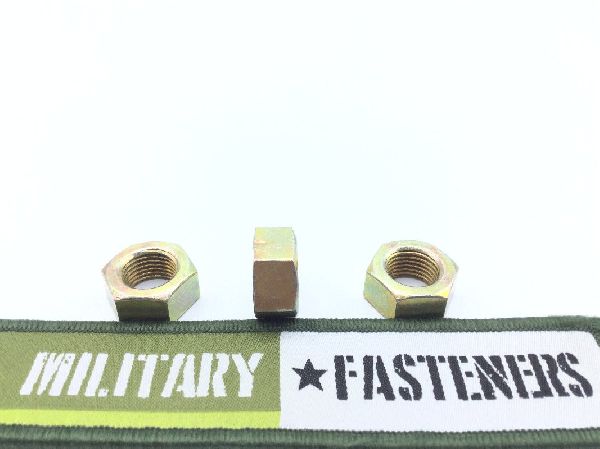

AN315-8R Plain Hexagon Nut (4)

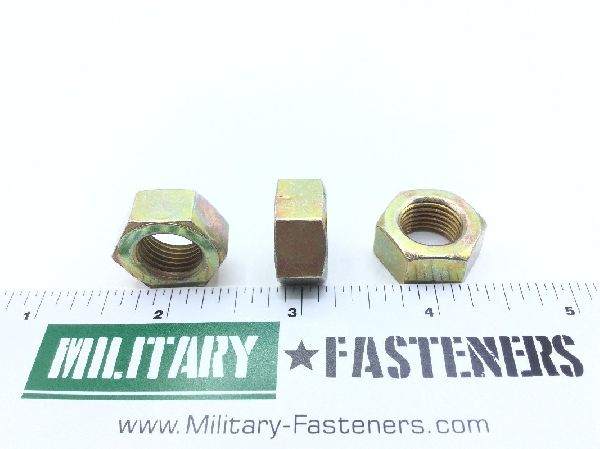

AN315-8R Plain Hexagon Nut (5)

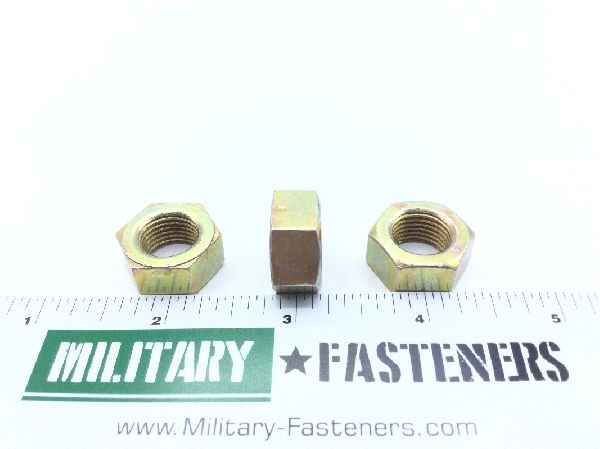

AN315-8R Plain Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN315-8R Plain Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.500 inches

Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 109.0 degrees nut and 111.0 degrees nut
Material Specification: 66 federal standard single material response
Nut Height: Between 0.359 inches and 0.391 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.738 inches and 0.752 inches
