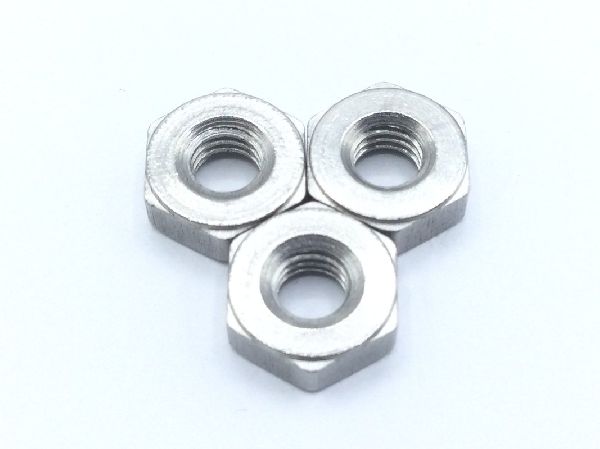

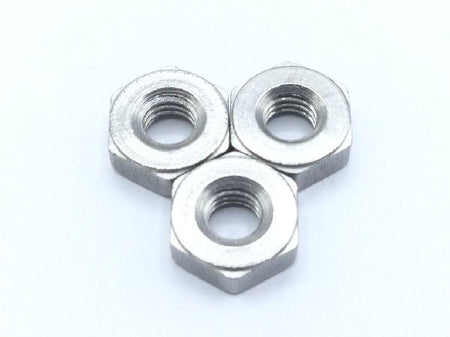

AN315C3R Plain Hexagon Nut

AN315C3R Plain Hexagon Nut (2)

AN315C3R Plain Hexagon Nut (3)

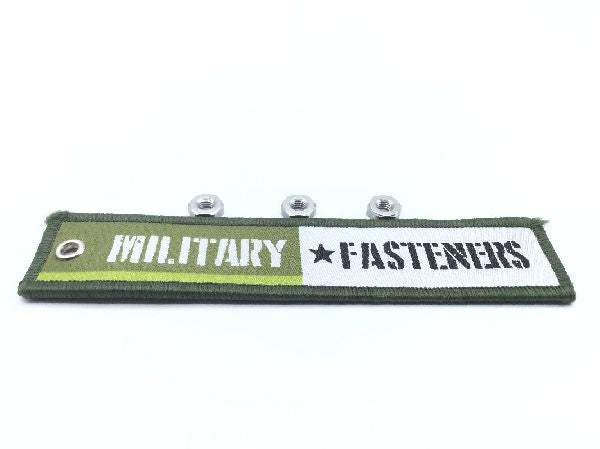

AN315C3R Plain Hexagon Nut (4)

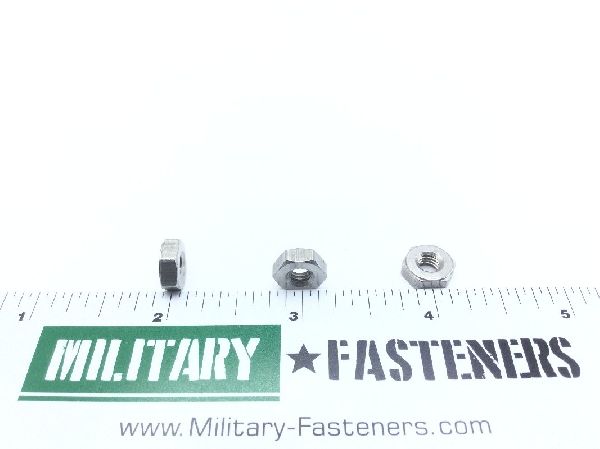

AN315C3R Plain Hexagon Nut (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN315C3R Plain Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316 or steel comp 317 or steel comp 347 or steel comp 410 or steel comp 414 or steel comp 416

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

Bearing Surface Type: Washer faced
Countersink Angle: 110.0 degrees nut
Material Specification: 66 federal standard all material responses
Nondefinitive Specification/std Data: 2 type
Nut Height: Between 0.125 inches and 0.156 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.365 inches and 0.377 inches
