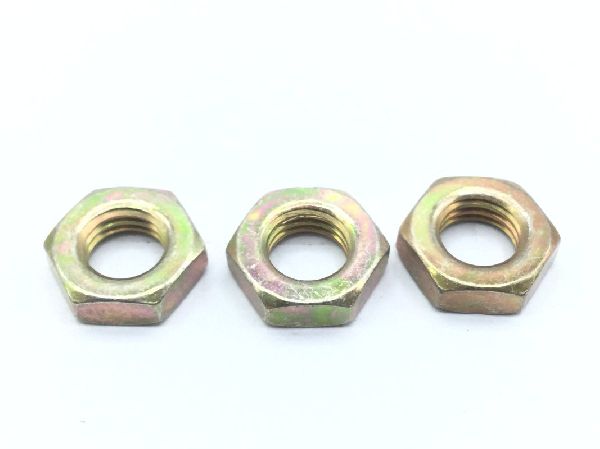

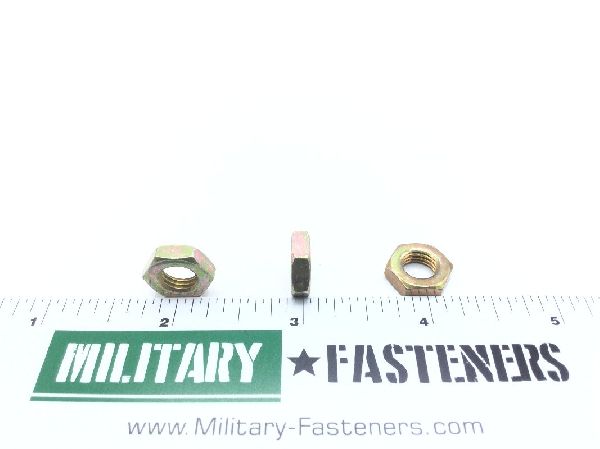

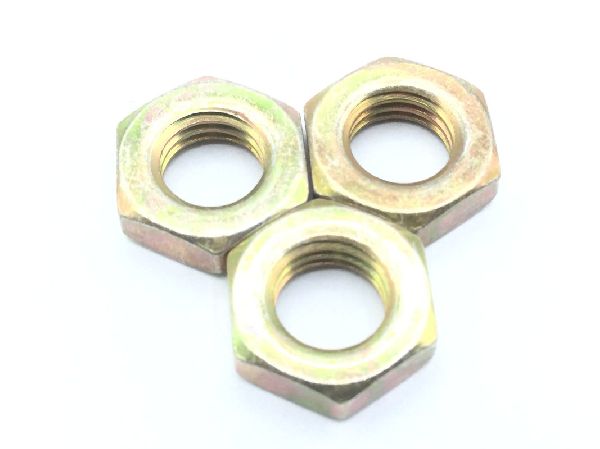

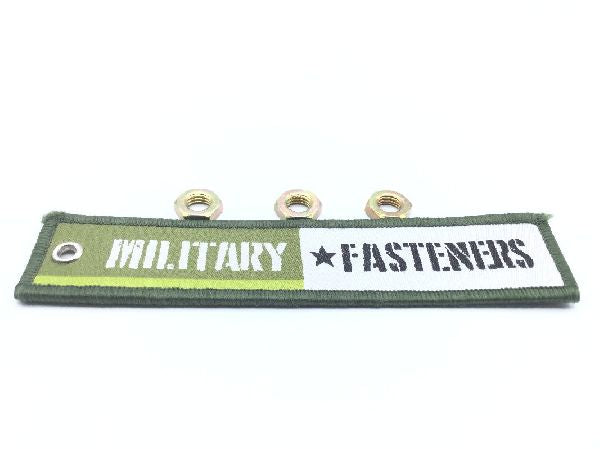

AN316-5R Plain Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $0.79

Units per Pack 50

Price per Pack $39.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $39.50

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.312 inches

Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 109.0 degrees nut and 111.0 degrees nut
Material Specification: 66 federal standard single material response
Nut Height: Between 0.141 inches and 0.172 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.490 inches and 0.502 inches
