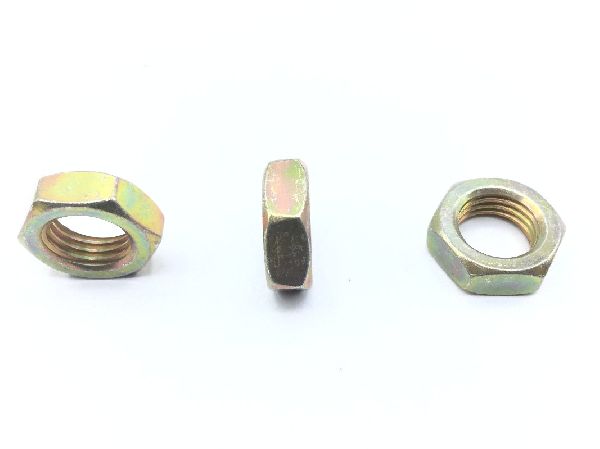

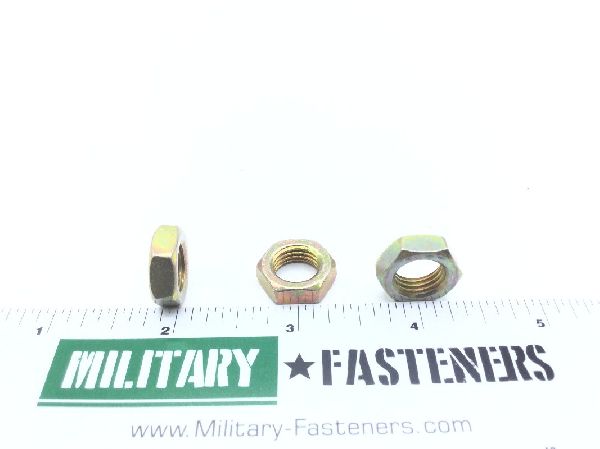

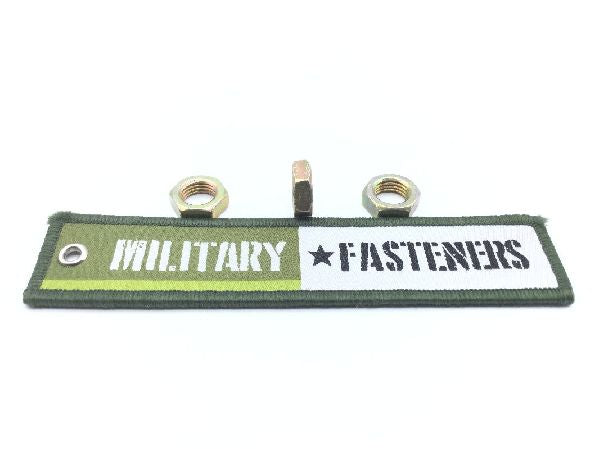

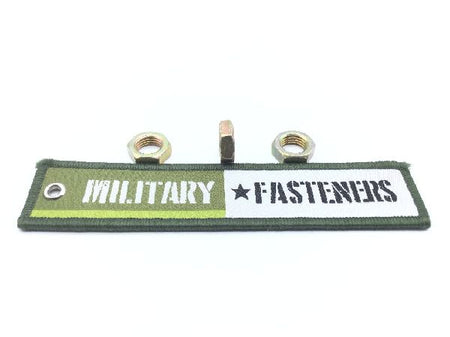

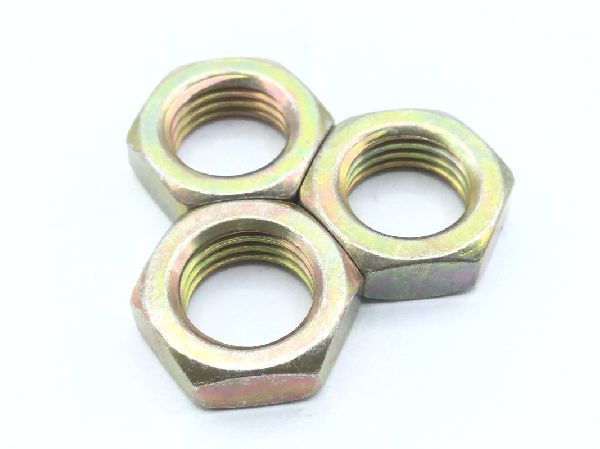

AN316-7L Plain Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.11

Units per Pack 50

Price per Pack $55.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $55.50

Add item to quote

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.438 inches

Bearing Surface Type: Chamfered
Countersink Angle: 110.0 degrees nut
Hardness Rating: Between 80.0 rockwell b and 32.0 rockwell c
Nondefinitive Specification/std Data: 2 type and a grade
Nut Height: Between 0.703 inches and 0.735 inches
Nut Style: Hexagon
Thread Direction: Left-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.614 inches and 0.627 inches
