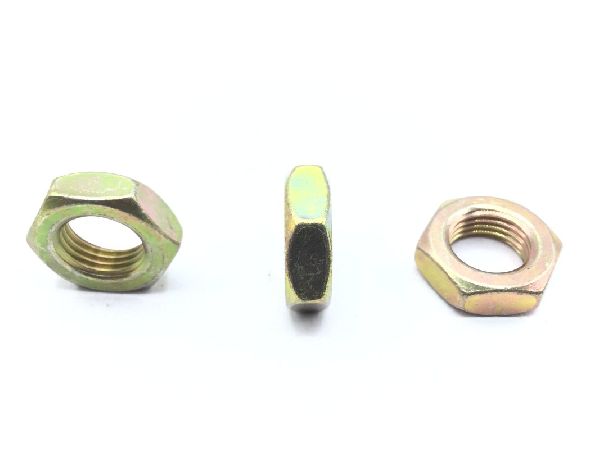

AN316-8L Plain Hexagon Nut

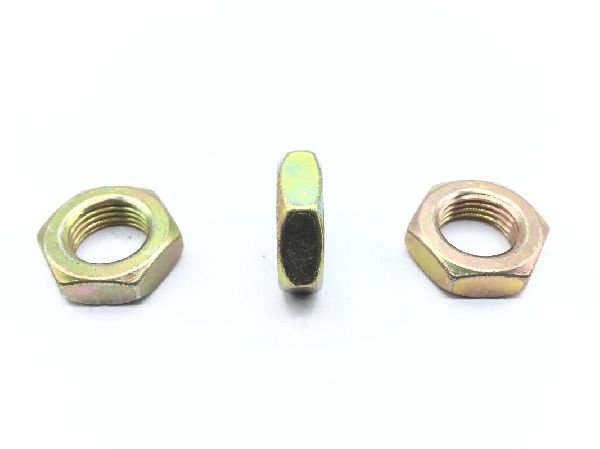

AN316-8L Plain Hexagon Nut (2)

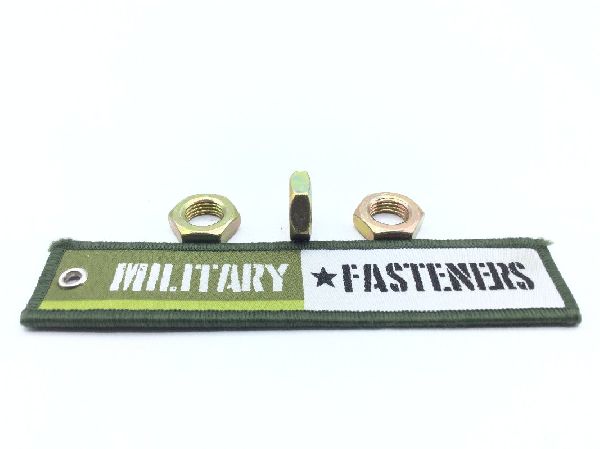

AN316-8L Plain Hexagon Nut (3)

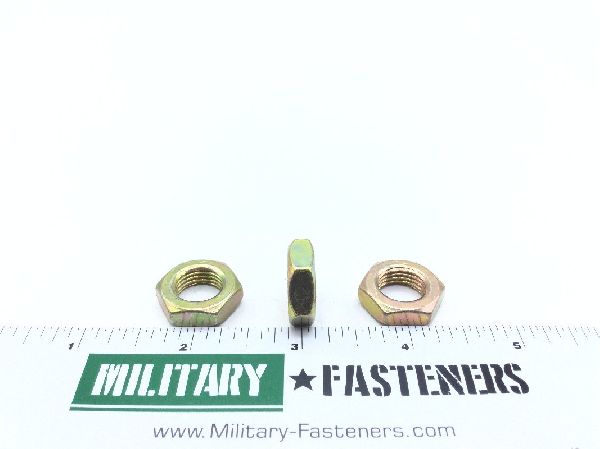

AN316-8L Plain Hexagon Nut (4)
AN316-8L Plain Hexagon Nut
AN316-8L Plain Hexagon Nut (2)
AN316-8L Plain Hexagon Nut (3)
AN316-8L Plain Hexagon Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN316-8L Plain Hexagon Nut

Product Series
AN
ECCN
EAR99
Schedule
7318.16.0085
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel
Surface Treatment
Cl 2 federal specification single treatment response type 2 qq-p-416
Thread Class
3b
Thread Series
Unf (fine thread)
Thread Size
0.500 inches
Bearing Surface Type
Chamfered
Countersink Angle
110.0 degrees nut
Hardness Rating
Between 80.0 rockwell b and 32.0 rockwell c
Nondefinitive Specification/std Data
2 type and a grade
Nut Height
0.250 inches
Nut Style
Hexagon
Thread Direction
Left-hand
Thread Qty Per Inch (tpi)
20
Width Across Flats
Between 0.738 inches and 0.752 inches
