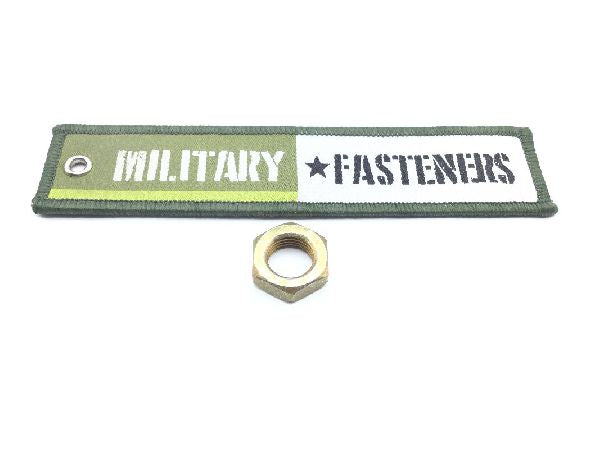

AN316-8R Plain Hexagon Nut

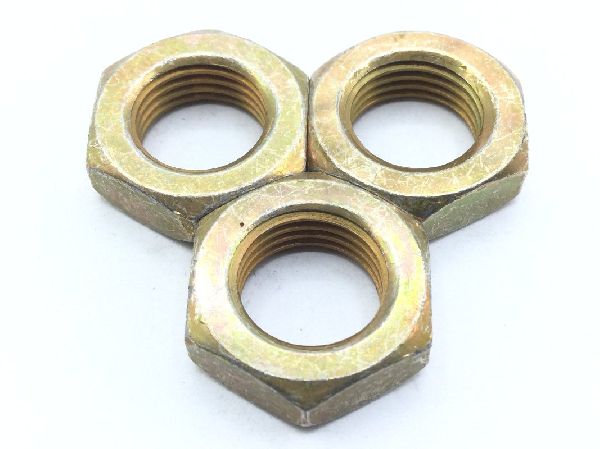

AN316-8R Plain Hexagon Nut (2)

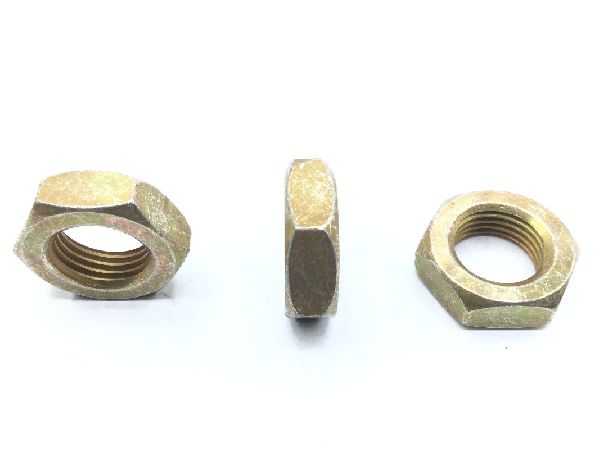

AN316-8R Plain Hexagon Nut (3)

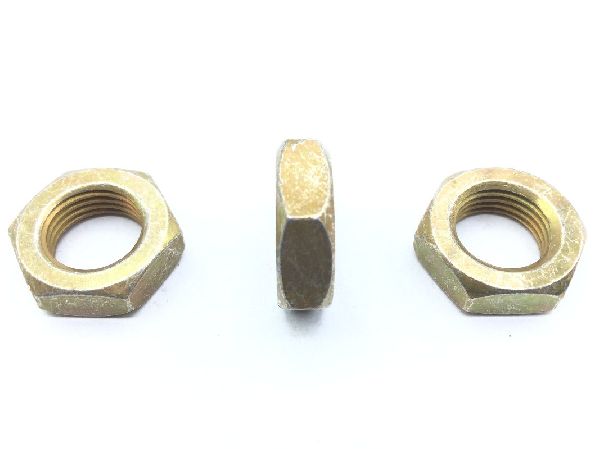

AN316-8R Plain Hexagon Nut (4)

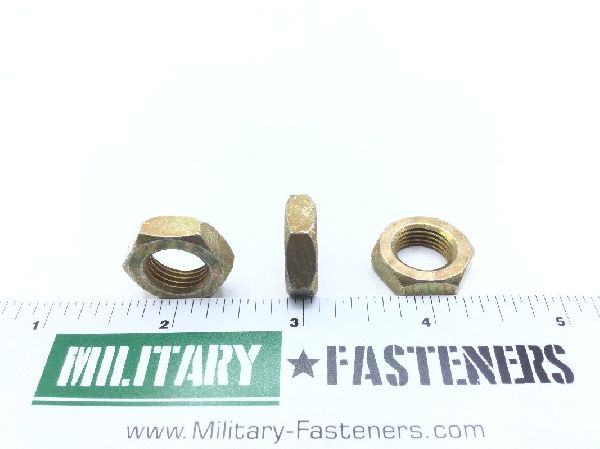

AN316-8R Plain Hexagon Nut (5)

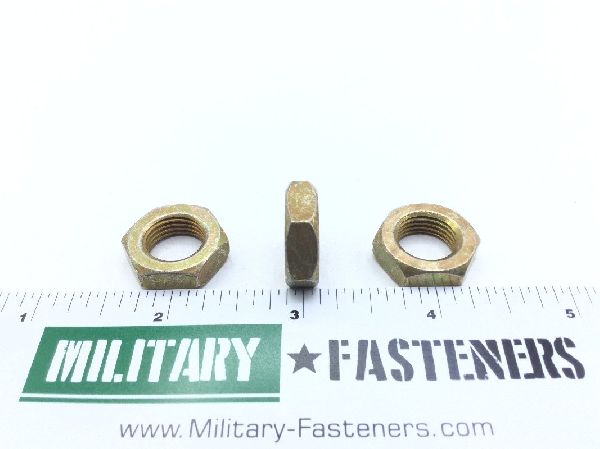

AN316-8R Plain Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN316-8R Plain Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $2.26

Units per Pack 20

Price per Pack $45.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $45.20

Add item to quote

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.500 inches

Bearing Surface Type: Chamfered
Countersink Angle: 110.0 degrees nut
Hardness Rating: Between 80.0 rockwell b and 32.0 rockwell c
Nondefinitive Specification/std Data: 2 type and a grade
Nut Height: 0.250 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.738 inches and 0.752 inches
