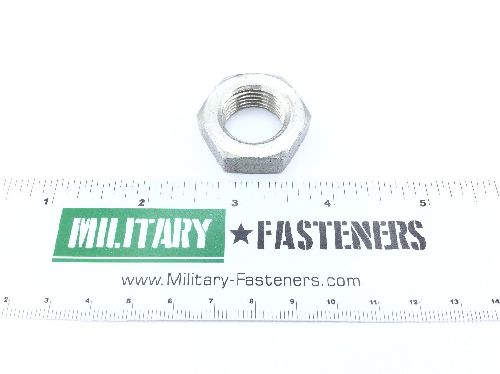

AN316C12R Plain Castellated Hexagon Nut
AN316C12R Plain Castellated Hexagon Nut (2)

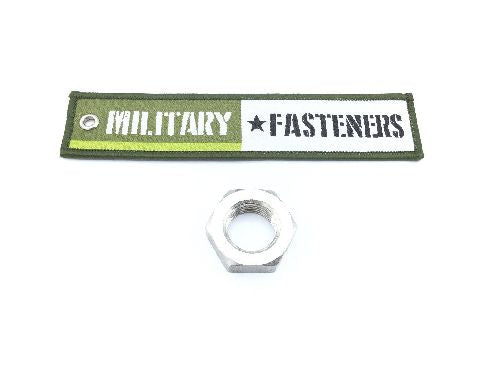

AN316C12R Plain Castellated Hexagon Nut (3)
AN316C12R Plain Castellated Hexagon Nut
AN316C12R Plain Castellated Hexagon Nut (2)
AN316C12R Plain Castellated Hexagon Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN316C12R Plain Castellated Hexagon Nut

Product Series
AN
ECCN
EAR99
Schedule
7318.16.0085
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316 or steel comp 317 or steel comp 347 or steel comp 410 or steel comp 414 or steel comp 416
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
3b
Thread Series
Unf (fine thread)
Thread Size
0.750 inches
Bearing Surface Type
Chamfered
Countersink Angle
110.0 degrees nut
Material Specification
66 federal standard all material responses
Nondefinitive Specification/std Data
2 type
Nut Height
0.375 inches
Nut Style
Hexagon
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
16
Width Across Flats
Between 1.109 inches and 1.127 inches
