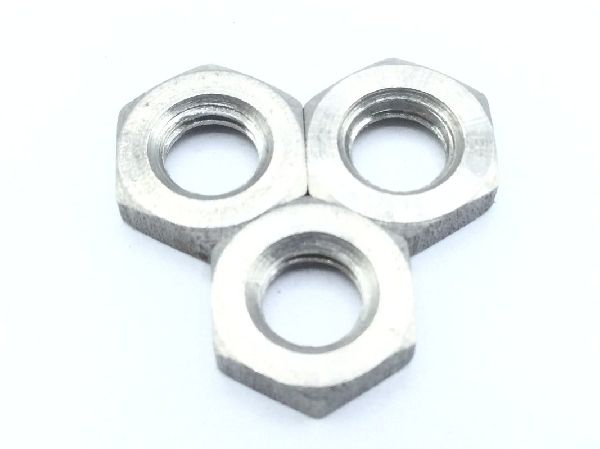

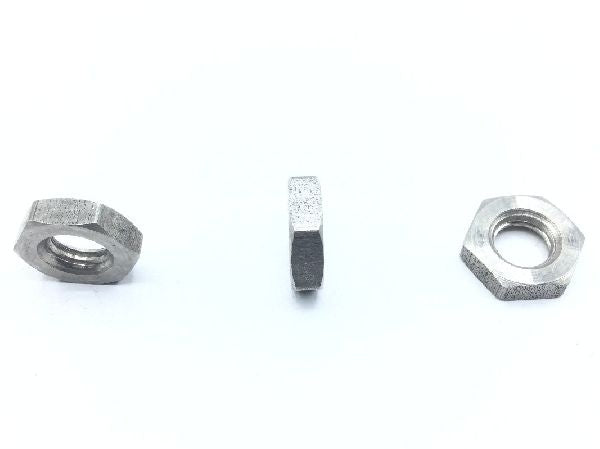

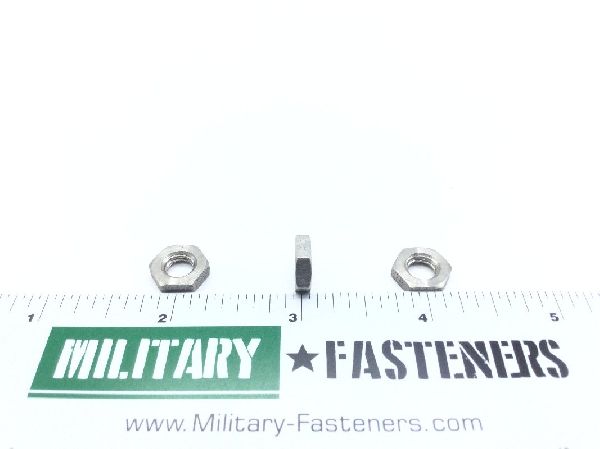

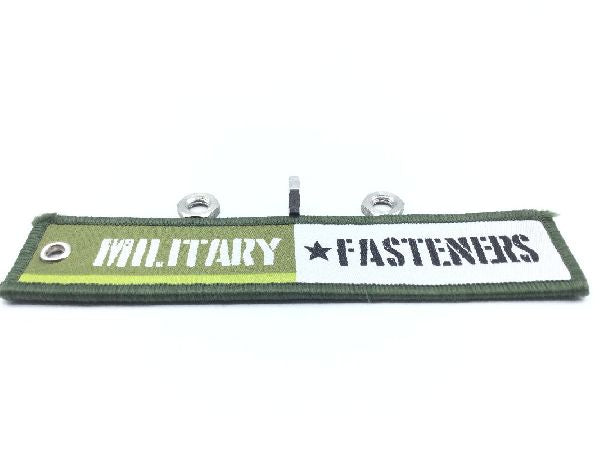

AN316C4R Plain Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.68

Units per Pack 25

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Material

Steel comp 301or steel comp 302 or steel comp 303 or steel comp 303se or steel comp 304 or steel comp 304l or steel comp 305 or steel comp 308 or steel comp 309 or steel comp 309s or steel comp 310 or steel comp 310s or steel comp 314 or

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.250 inches

Bearing Surface Type: Chamfered
Countersink Angle: 110.0 degrees
Material Specification: 66 federal standard all material responses
Nut Height: 0.125 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Width Across Flats: Between 0.428 inches and 0.440 inches
