Home » AN316C5L Plain Hexagon Nut

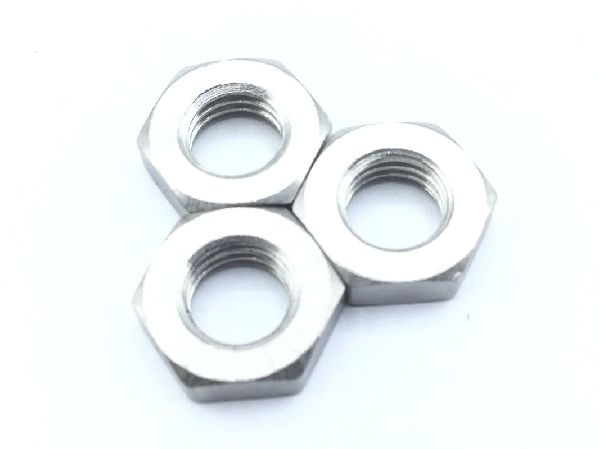

AN316C5L Plain Hexagon Nut

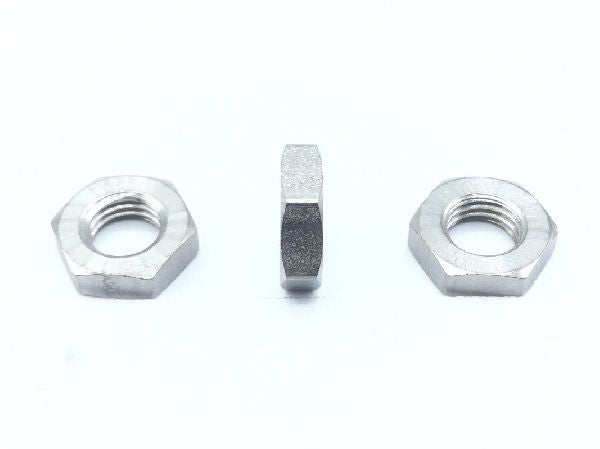

AN316C5L Plain Hexagon Nut (2)

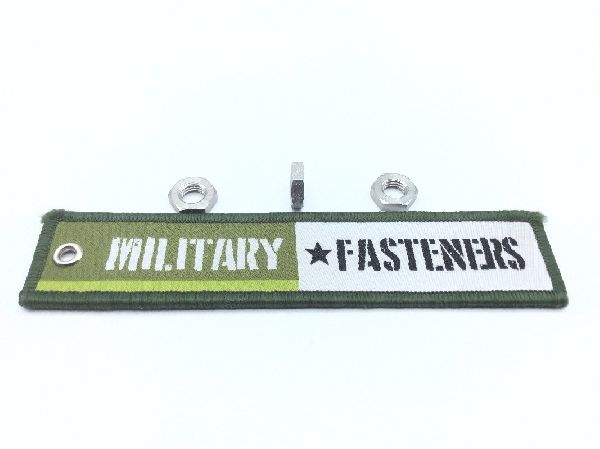

AN316C5L Plain Hexagon Nut (3)

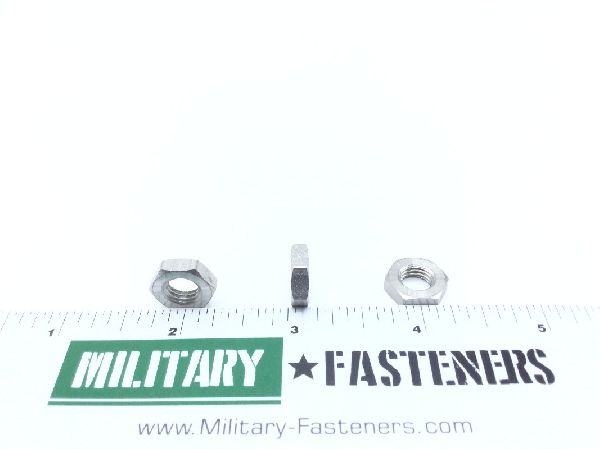

AN316C5L Plain Hexagon Nut (4)
AN316C5L Plain Hexagon Nut
AN316C5L Plain Hexagon Nut (2)
AN316C5L Plain Hexagon Nut (3)
AN316C5L Plain Hexagon Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN316C5L Plain Hexagon Nut

Product Series
AN
ECCN
EAR99
Schedule
7318.16.0000
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Stainless Steel
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
3b
Thread Series
Unf (fine thread)
Thread Size
0.312 inches
Bearing Surface Type
Chamfered
Countersink Angle
110.0 degrees nut
Nondefinitive Specification/std Data
2 type
Nut Height
Between 0.141 inches and 0.172 inches
Nut Style
Hexagon
Thread Direction
Left-hand
Thread Qty Per Inch (tpi)
24
Width Across Flats
Between 0.490 inches and 0.502 inches
