Home » AN320-1 Plain Slotted Hexagon Nut

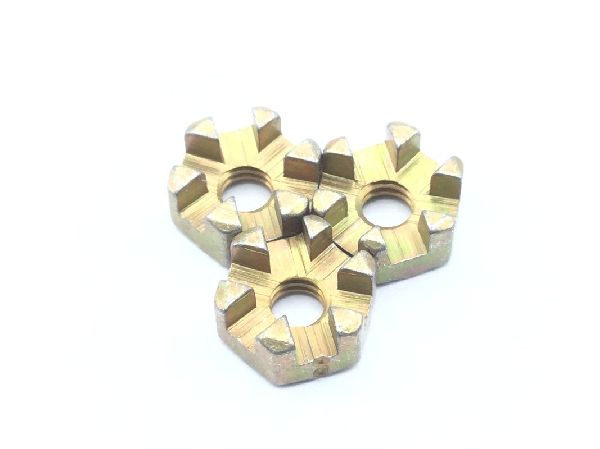

AN320-1 Plain Slotted Hexagon Nut
AN320-1 Plain Slotted Hexagon Nut (2)

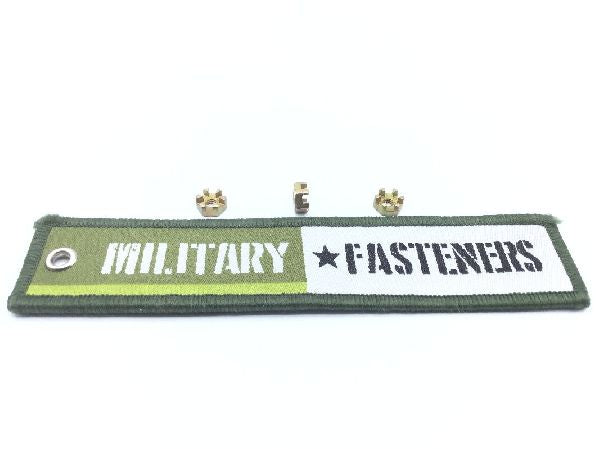

AN320-1 Plain Slotted Hexagon Nut (3)

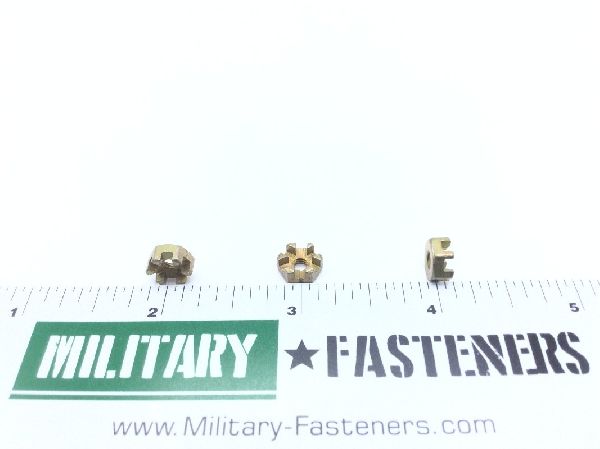

AN320-1 Plain Slotted Hexagon Nut (4)
AN320-1 Plain Slotted Hexagon Nut
AN320-1 Plain Slotted Hexagon Nut (2)
AN320-1 Plain Slotted Hexagon Nut (3)
AN320-1 Plain Slotted Hexagon Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN320-1 Plain Slotted Hexagon Nut

Product Series
AN
ECCN
EAR99
Schedule
7318.16.0000
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel
Surface Treatment
Cl 3 federal specification single treatment response type 2 qq-p-416
Thread Class
3b
Thread Series
Unf (fine thread)
Thread Size
0.138 inches
Bearing Surface Finish
125.0 microinches
Bearing Surface Type
Chamfered or washer faced
Nut Height
Between 0.141 inches and 0.172 inches
Nut Style
hexagon slotted
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
40
Width Across Flats
Between 0.303 inches and 0.315 inches
