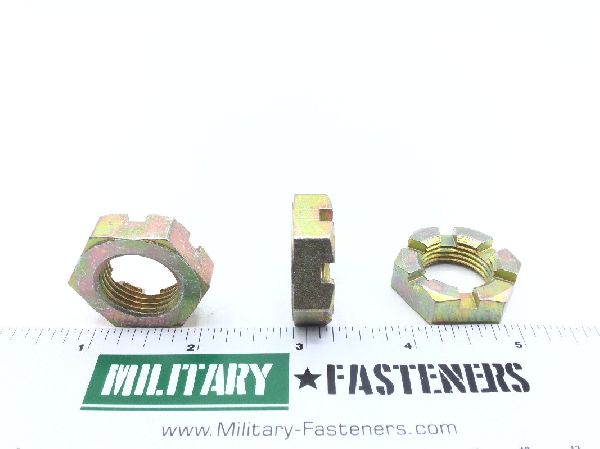

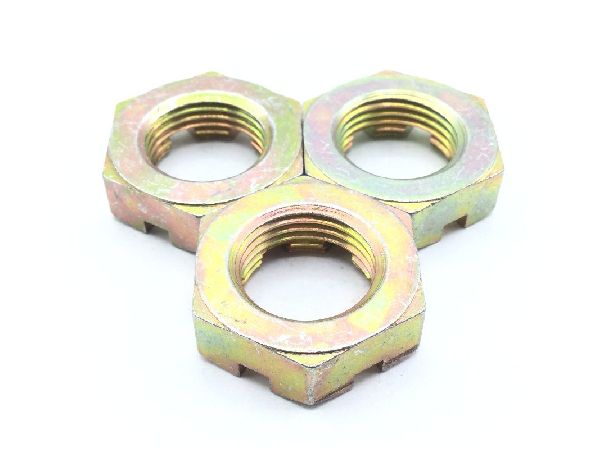

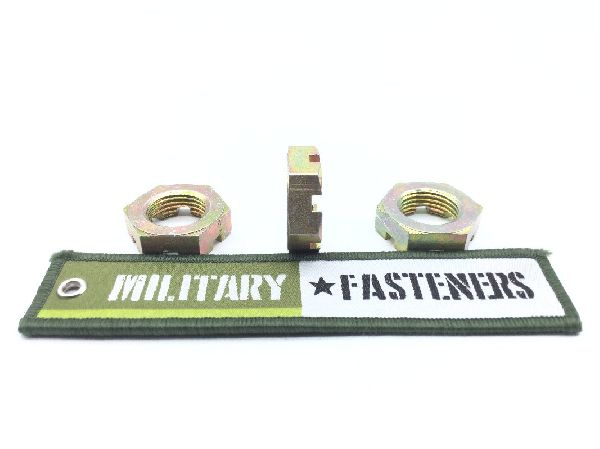

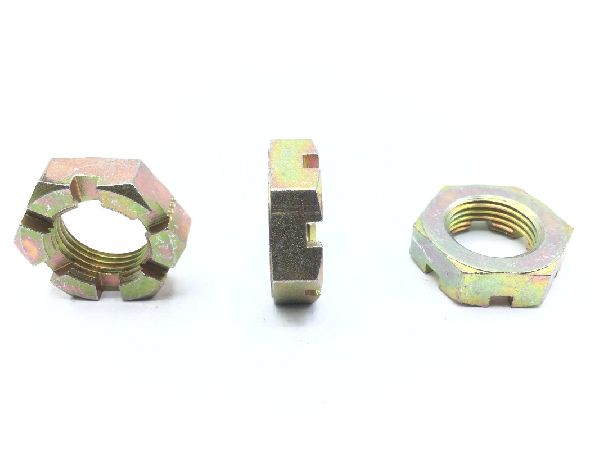

AN320-12 Plain Slotted Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $6.98

Units per Pack 10

Price per Pack $69.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $69.80

Add item to quote

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.750 inches

Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 110.0 degrees nut
Material Specification: Grade c federal specification single material response ff-n836
Nondefinitive Specification/std Data: 4 type and c grade
Nut Height: 0.375 inches
Nut Style: hexagon slotted
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 16
Width Across Flats: Between 1.109 inches and 1.127 inches
