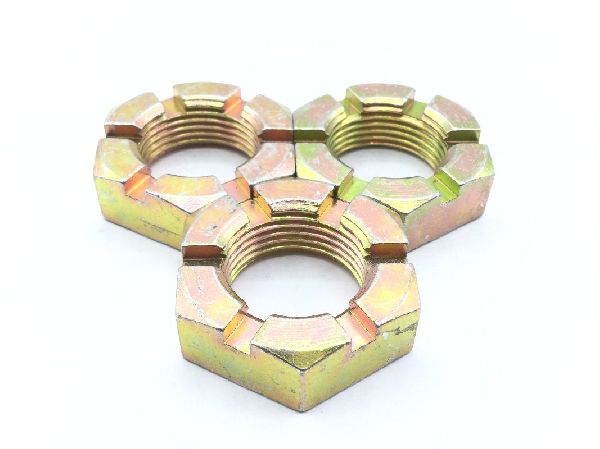

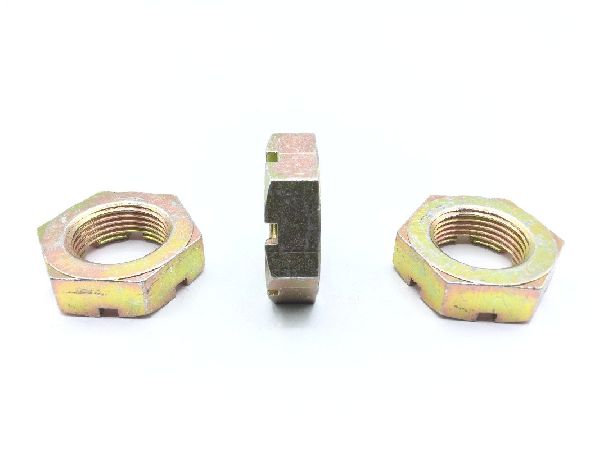

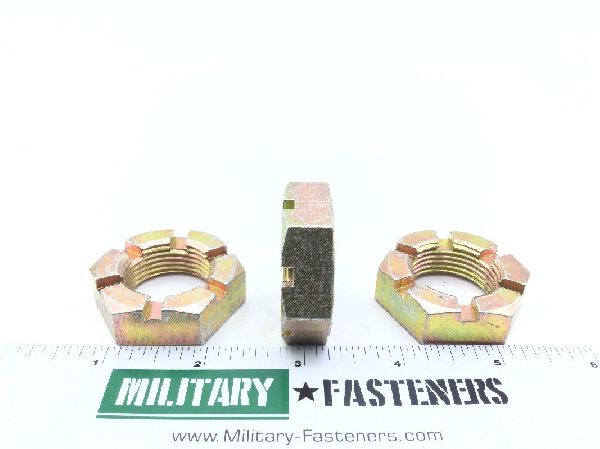

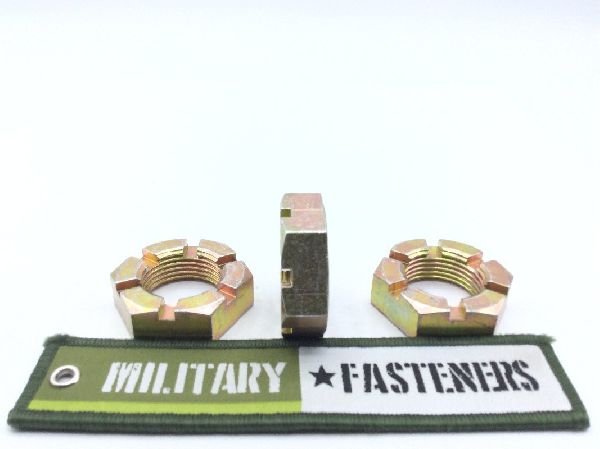

AN320-16 Plain Slotted Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $26.26

Units per Pack 5

Price per Pack $131.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $131.30

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Uns

Thread Size

1.000 inches

Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 110.0 degrees nut
Hardness Rating: Between 69.0 rockwell b and 32.0 rockwell c
Nondefinitive Specification/std Data: 4 type and 16 style and b grade
Nut Height: Between 0.490 inches and 0.510 inches
Nut Style: hexagon slotted
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 14
Width Across Flats: Between 1.481 inches and 1.502 inches
