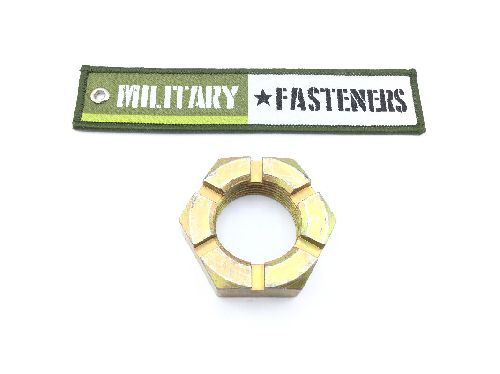

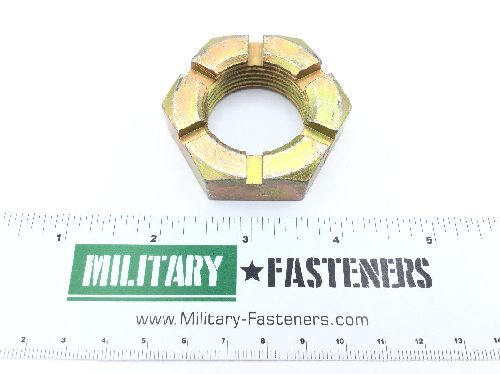

AN320-20 Plain Slotted Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

1.250 inches

Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 110 degree
Material Specification: Grade c federal specification single material response ff-n-836
Nondefinitive Specification/std Data: 4 type and c grade
Nut Height: 0.625 inches
Nut Style: hexagon slotted
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 12
Width Across Flats: Between 1.852 inches and 1.877 inches
