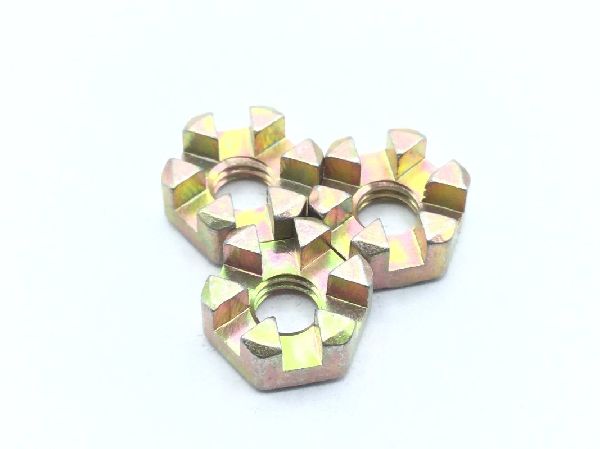

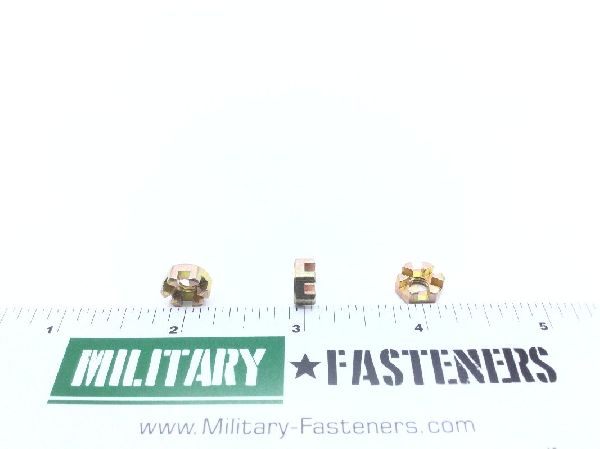

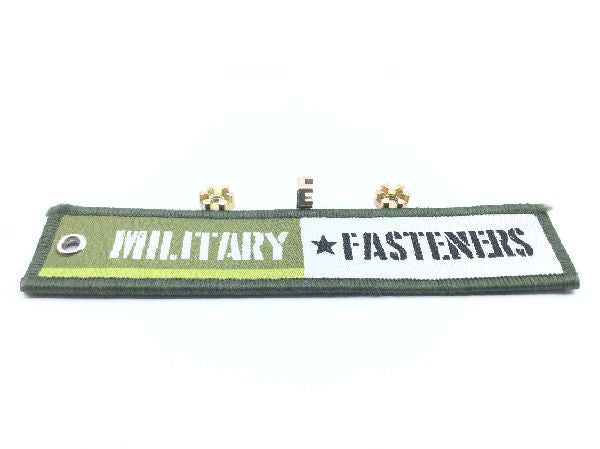

AN320-3 Plain Castellated Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.89

Units per Pack 25

Price per Pack $47.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $47.25

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Washer faced
Nut Height: 0.188 inches
Nut Style: hexagon slotted
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.365 inches and 0.377 inches
