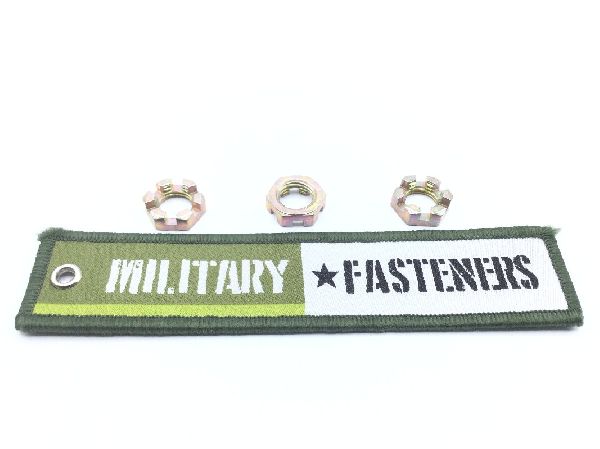

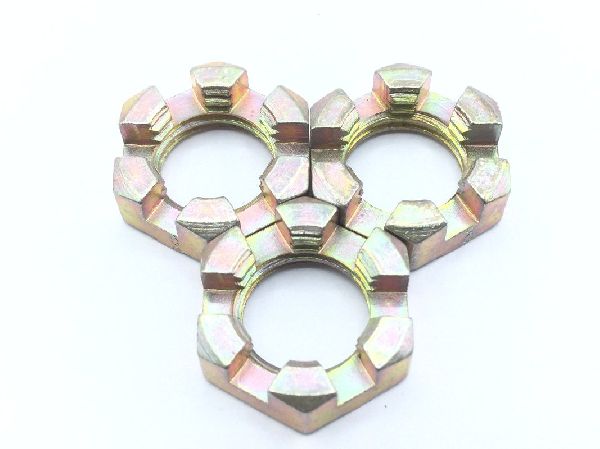

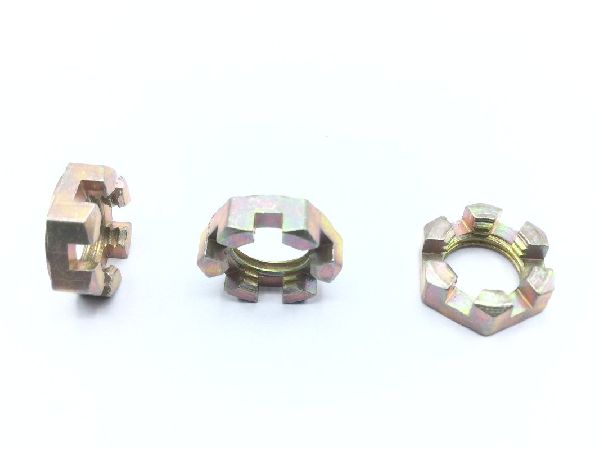

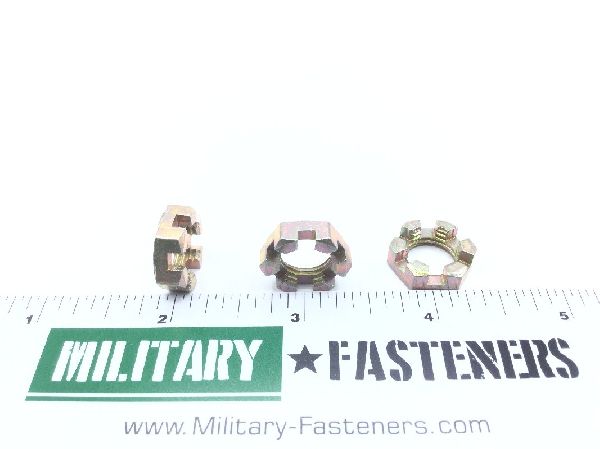

AN320-7 Plain Slotted Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $2.05

Units per Pack 25

Price per Pack $51.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $51.25

Add item to quote

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.438 inches

Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 110.0 degrees nut
Material Specification: Grade b national specification single material response
Nondefinitive Specification/std Data: 4 type and b grade
Nut Height: 0.219 inches
Nut Style: hexagon slotted
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.614 inches and 0.627 inches
