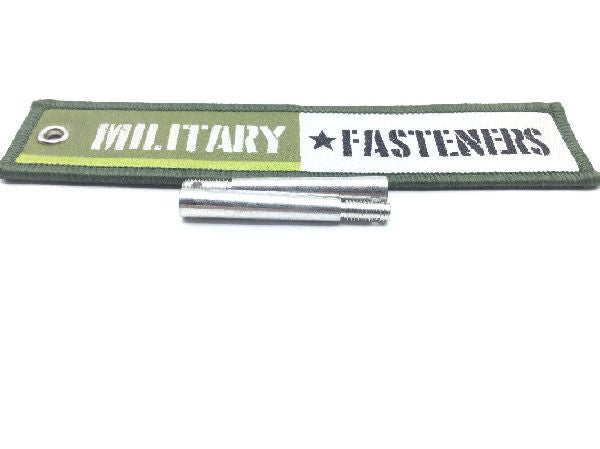

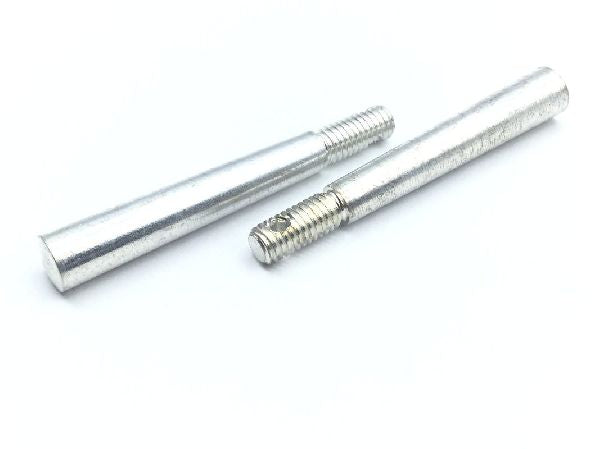

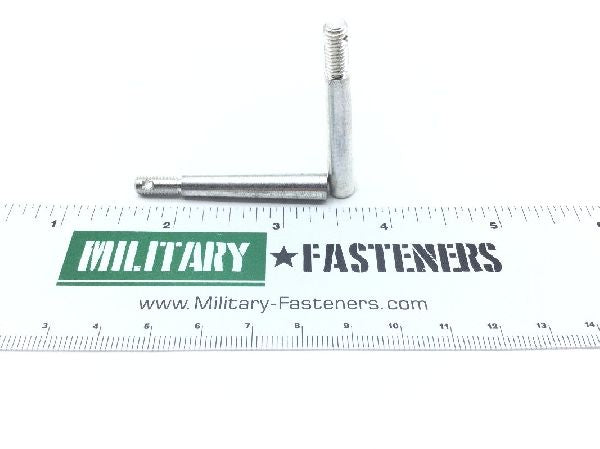

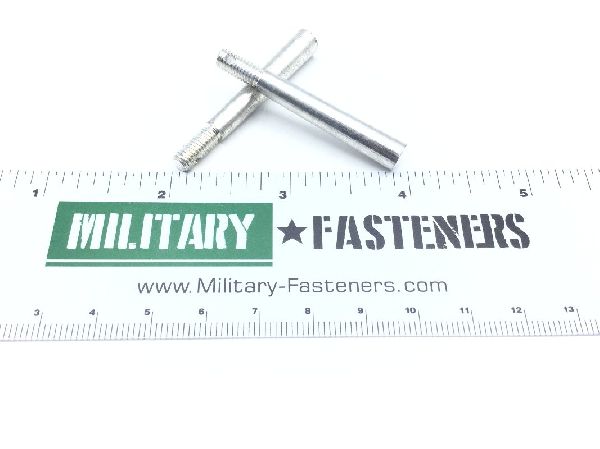

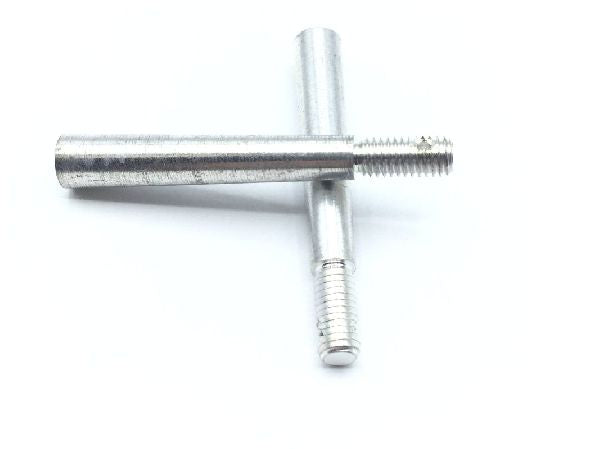

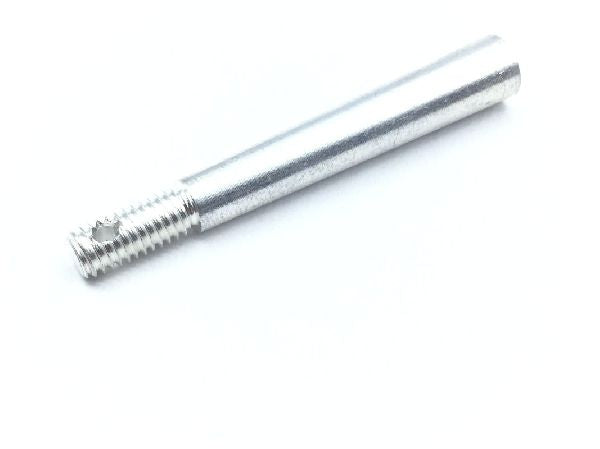

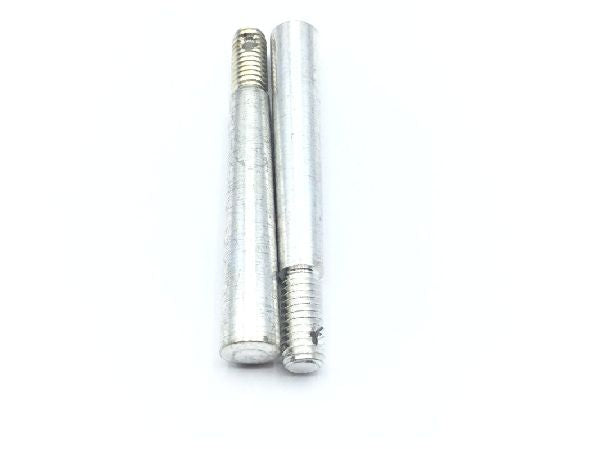

AN386-1-10 Threaded Tapered Pin
- Product Series
- AN
- ECCN
- EAR99
- Schedule
- 7318.29.0000
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Distance From Centerline Of Hole To End Of Pin
- 1.562 inches
- First End Location
- Unthreaded end
- First End Outer Radius
- 0.015 inches
- First End Style
- Oval
- First Hole Diameter
- Between 0.070 inches and 0.080 inches
- Grip Length
- 1.250 inches
- Hole Arrangement Style
- Drilled shank threaded pin
- Second End Outer Radius
- 0.015 inches
- Second End Relationship With First End
- Not identical
- Second End Style
- Oval
- Style Designator
- Threaded at small end
- Taper
- 0.500 per foot in inches
- Taper Length
- Between 1.250 inches and 1.375 inches
- Taper Major Diameter
- 0.207 inches
- Taper Minor Diameter
- 0.203 inches
- Thread Direction
- Right-hand
- Thread Length
- 0.562 inches
- Thread Series Designator
- Unf (fine thread)
