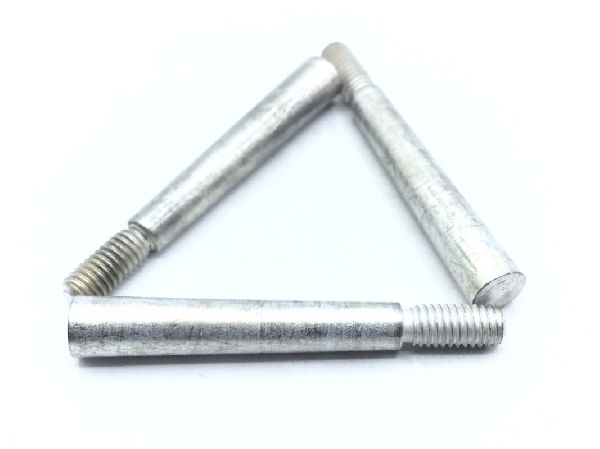

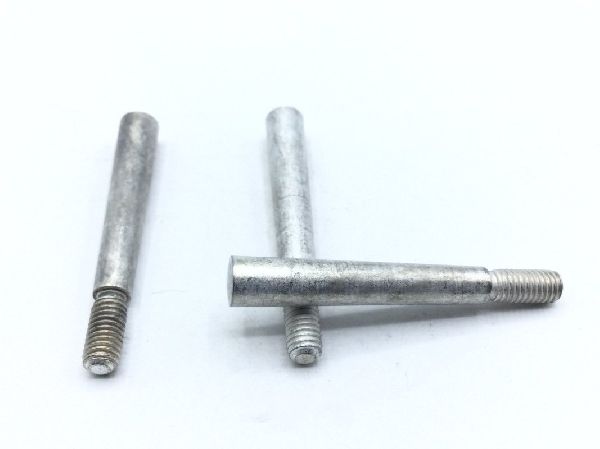

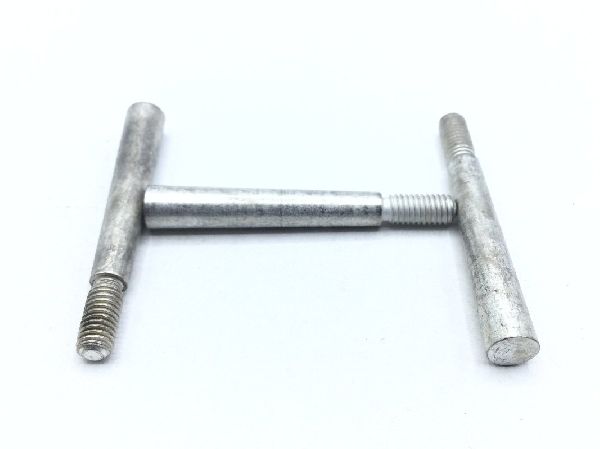

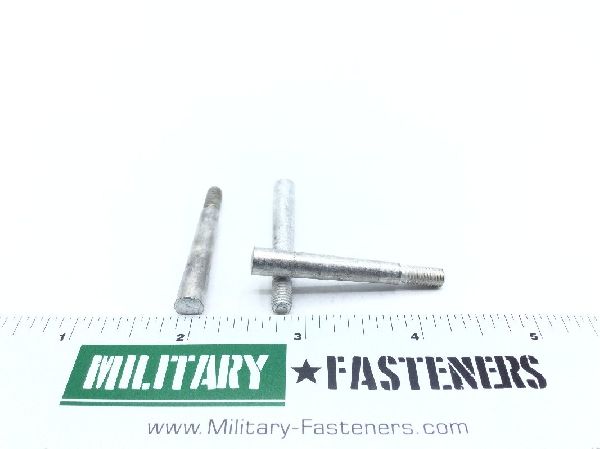

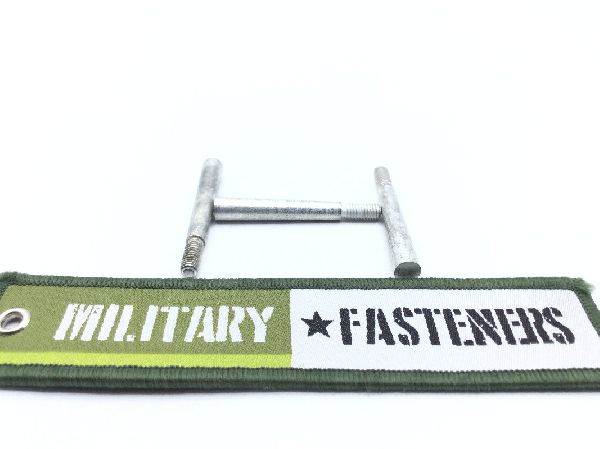

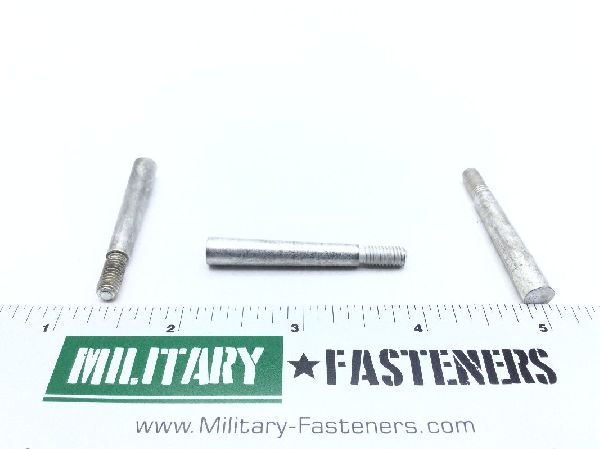

AN386-1-10A Threaded Tapered Pin
- Product Series
- AN
- ECCN
- EAR99
- Schedule
- 7318.29.0000
Price per Unit
$9.63
Units per Pack
5
Price per Pack
$48.15
Unit of Measure:
EA
Couldn't load pickup availability
- First End Location
- Threaded end
- First End Style
- Chamfered
- First End Taper Angle
- 45.0 degrees
- First End Taper Length
- 0.015 inches
- Grip Length
- 1.25 inches
- Second End Outer Radius
- 1.250 inches
- Second End Relationship With First End
- Not identical
- Second End Style
- Oval
- Style Designator
- Threaded at small end
- Taper
- 0.516 per foot in inches
- Taper Length
- Between 1.250 inches and 1.375 inches
- Taper Major Diameter
- 0.207 inches
- Taper Minor Diameter
- 0.203 inches
- Thread Direction
- Right-hand
- Thread Length
- 0.562 inches
- Thread Series Designator
- Unf (fine thread)
