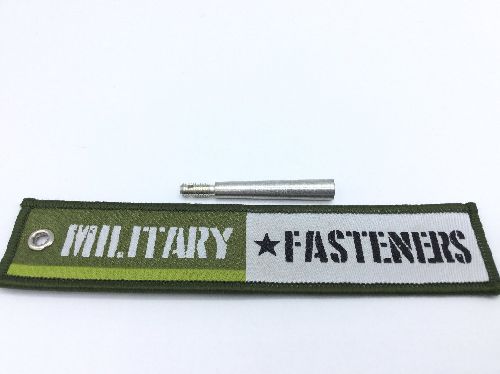

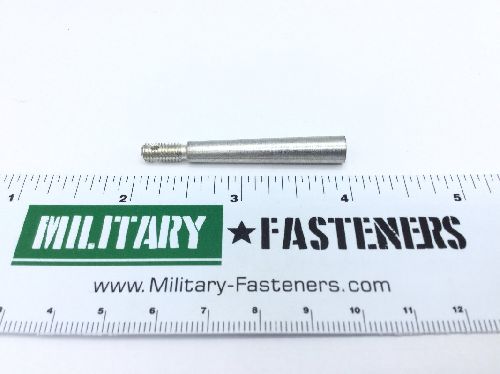

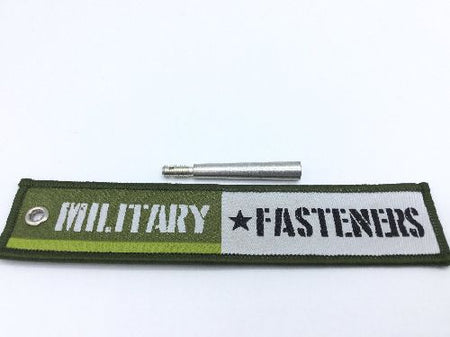

AN386-1-11 Threaded Tapered Pin

Product Series: AN
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $17.94

Units per Pack 5

Price per Pack $89.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $89.70

Add item to quote

Material

Steel comp 2330 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130

Surface Treatment

Cl 3 federal specification single treatment response type 1 qq-p-416

Thread Class

Thread Size

0.190 inches

Distance From Centerline Of Hole To End Of Pin: Between 0.109 inches and 0.141 inches
First End Location: Both ends
First End Style: Square
First Hole Diameter: Between 0.070 inches and 0.080 inches
Grip Length: Between 1.359 inches and 1.391 inches
Hole Arrangement Style: One end drilled
Second End Relationship With First End: Identical
Style Designator: Threaded at small end
Taper: 0.500 per foot in inches
Taper Length: Between 1.484 inches and 1.516 inches
Taper Major Diameter: 0.259 inches
Taper Minor Diameter: Between 0.203 inches and 0.207 inches
Thread Direction: Right-hand
Thread Length: Between 0.422 inches and 0.453 inches
Thread Series Designator: Unf (fine thread)
