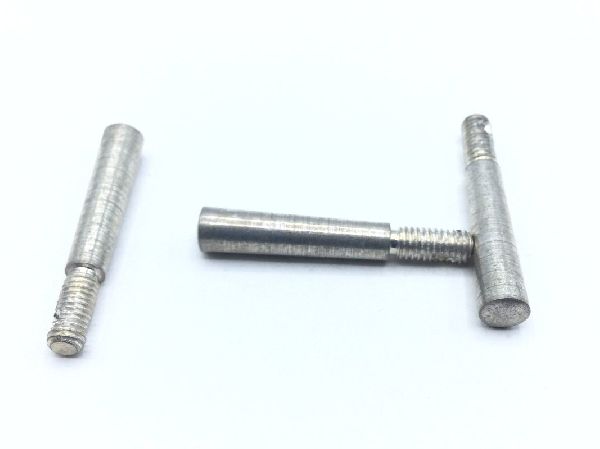

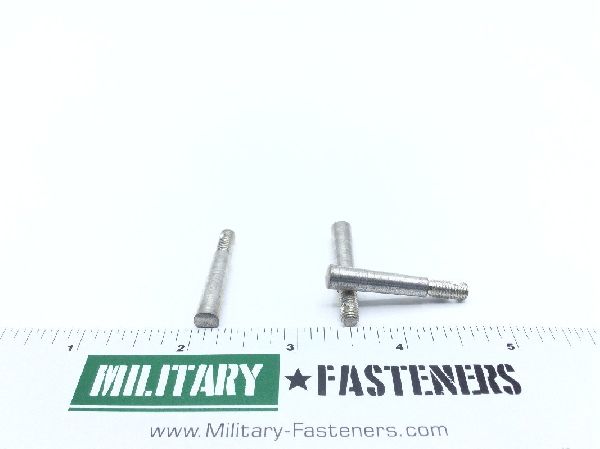

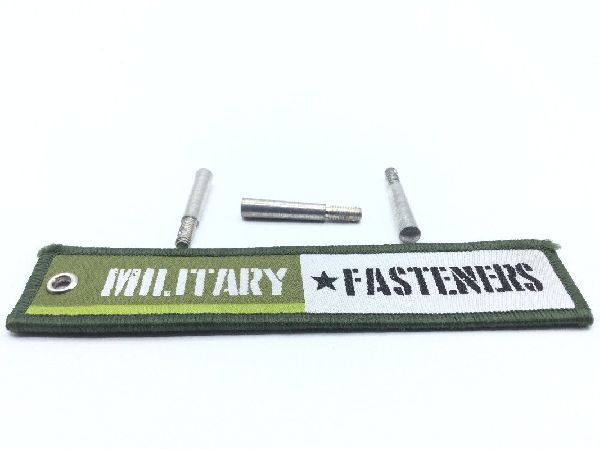

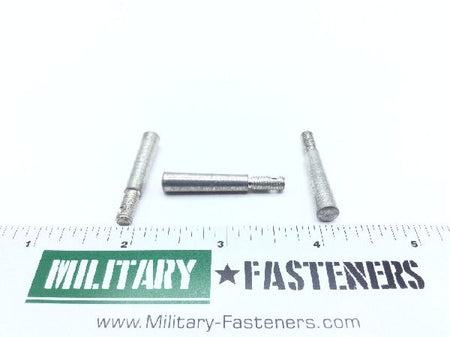

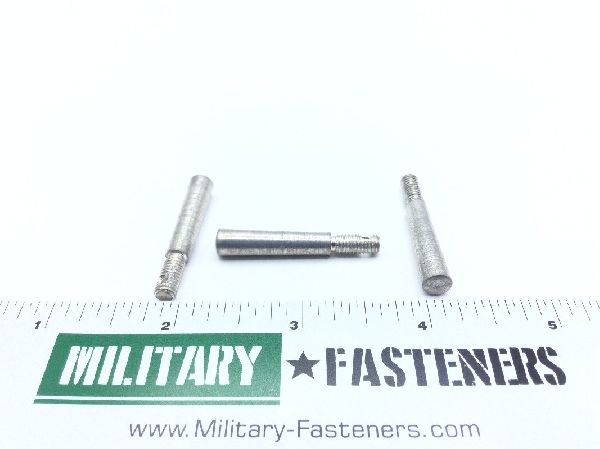

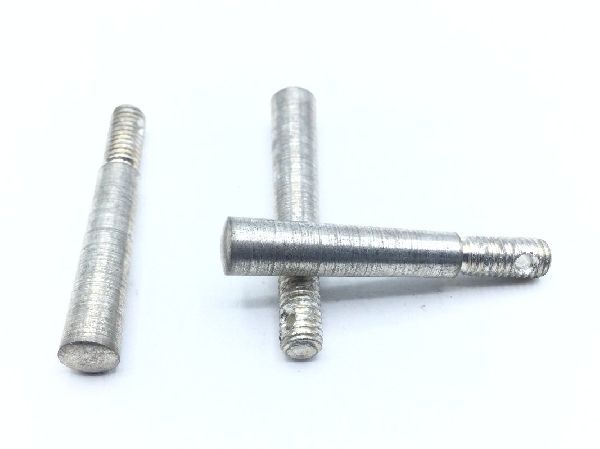

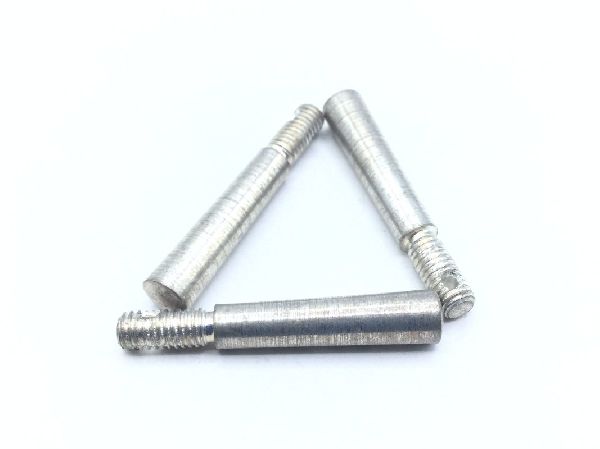

AN386-1-7 Threaded Tapered Pin

Product Series: AN
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $21.00

Units per Pack 2

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 1 qq-p-416

Thread Class

Thread Size

0.190 inches

Distance From Centerline Of Hole To End Of Pin: Between 0.109 inches and 0.141 inches
First End Location: Threaded end
First End Outer Radius: 0.50 inches
First End Style: Oval
First Hole Diameter: Between 0.070 inches and 0.080 inches
Grip Length: Between 0.859 inches and 0.891 inches
Hole Arrangement Style: One end drilled
Second End Relationship With First End: Not identical
Second End Style: Square
Style Designator: Threaded at small end
Taper: 0.500 per foot in inches
Taper Length: Between 0.984 inches and 1.016 inches
Taper Major Diameter: 0.240 inches
Taper Minor Diameter: Between 0.203 inches and 0.207 inches
Thread Direction: Right-hand
Thread Length: Between 0.422 inches and 0.453 inches
Thread Series Designator: Unf (fine thread)
