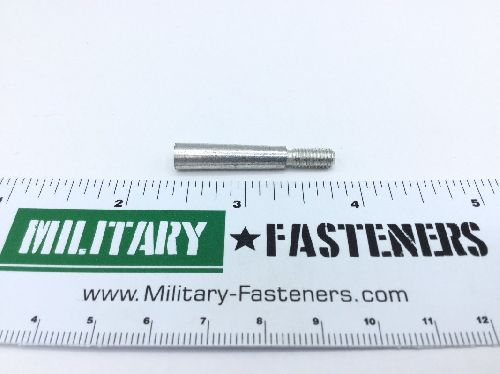

AN386-1-7A Threaded Tapered Pin

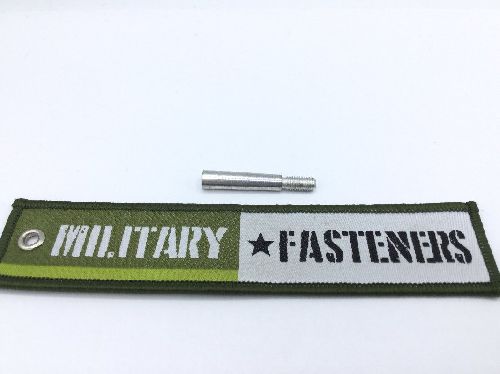

AN386-1-7A Threaded Tapered Pin (2)
AN386-1-7A Threaded Tapered Pin (3)
AN386-1-7A Threaded Tapered Pin
AN386-1-7A Threaded Tapered Pin (2)
AN386-1-7A Threaded Tapered Pin (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN386-1-7A Threaded Tapered Pin

Product Series
AN
ECCN
EAR99
Schedule
7318.29.0000
Price per Unit $8.66
Units per Pack 5
Price per Pack $43.30
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:
Total Packs 1
Total Price $43.30
Add item to quote
Material
Steel
Thread Class
3a
Thread Size
0.190 inches
First End Location
Unthreaded end
First End Outer Radius
0.015 inches
First End Style
Oval
Grip Length
0.875 inches
Second End Outer Radius
0.015 inches
Second End Relationship With First End
Not identical
Second End Style
Oval
Style Designator
Threaded at small end
Taper
0.500 per foot in inches
Taper Length
Between 0.875 inches and 1.000 inches
Taper Major Diameter
0.207 inches
Taper Minor Diameter
0.203 inches
Thread Direction
Right-hand
Thread Length
0.563 inches
Thread Series Designator
Unf (fine thread)
