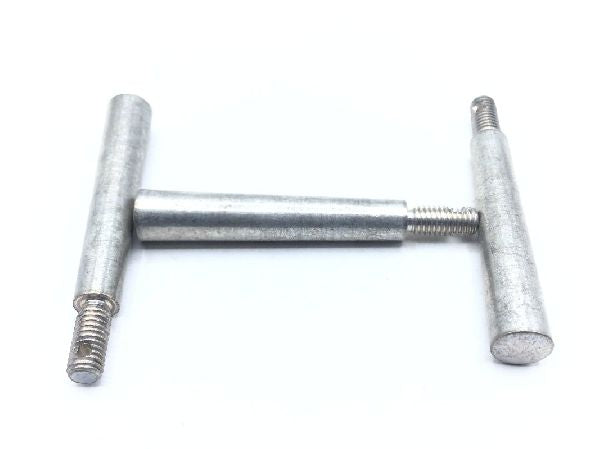

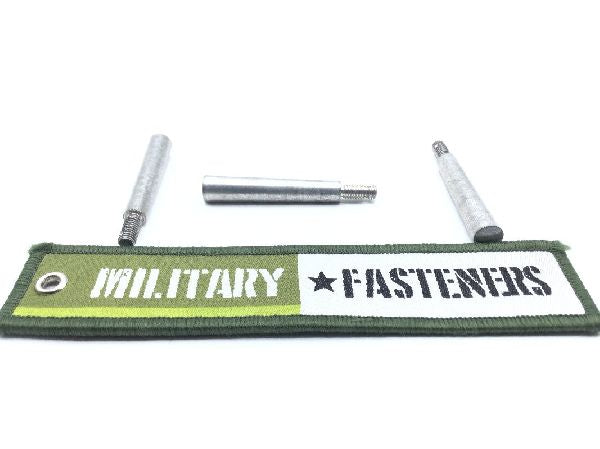

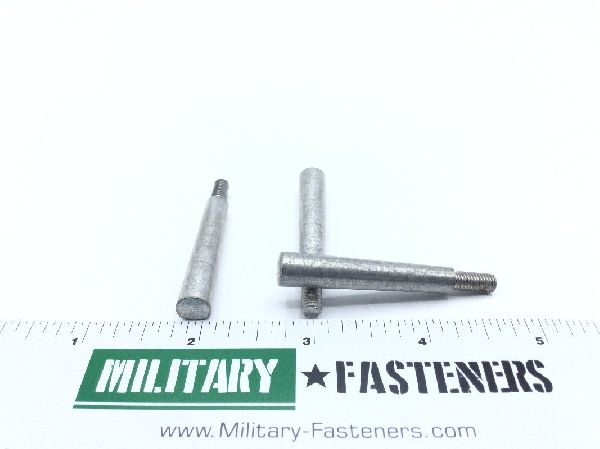

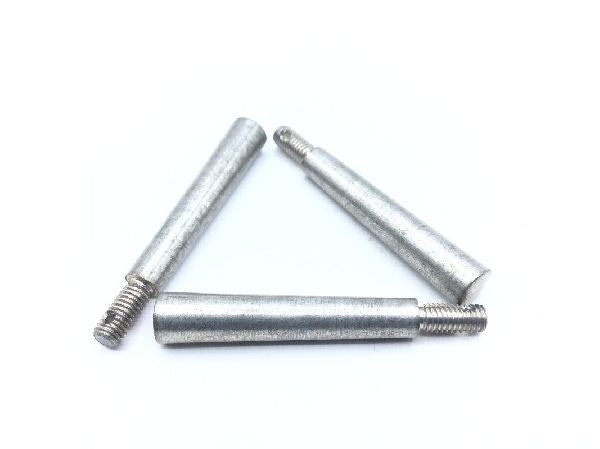

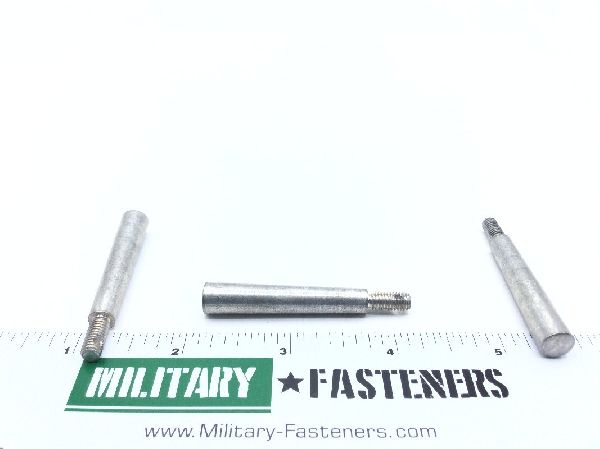

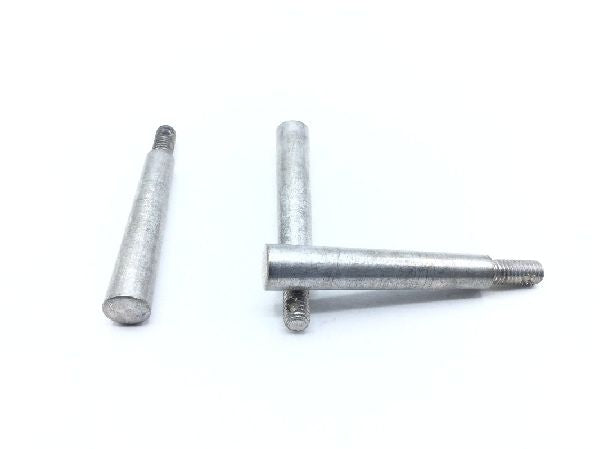

AN386-2-12 Threaded Tapered Pin

Product Series: AN
ECCN: EAR99
Schedule: 7318.29.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 2330 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130

Surface Treatment

Cl 3 federal specification single treatment response type 1 qq-p-416

Thread Class

Thread Size

0.190 inches

Distance From Centerline Of Hole To End Of Pin: Between 0.109 inches and 0.141 inches
First End Location: Oval end
First End Style: Oval
First Hole Diameter: Between 0.070 inches and 0.080 inches
Grip Length: Between 1.484 inches and 1.516 inches
Hole Arrangement Style: One end drilled
Second End Relationship With First End: Not identical
Second End Style: Square
Style Designator: Threaded at small end
Taper: 0.500 per foot in inches
Taper Length: Between 1.609 inches and 1.641 inches
Taper Major Diameter: 0.324 inches
Taper Minor Diameter: Between 0.253 inches and 0.257 inches
Thread Direction: Right-hand
Thread Length: Between 0.422 inches and 0.453 inches
Thread Series Designator: Unf (fine thread)
