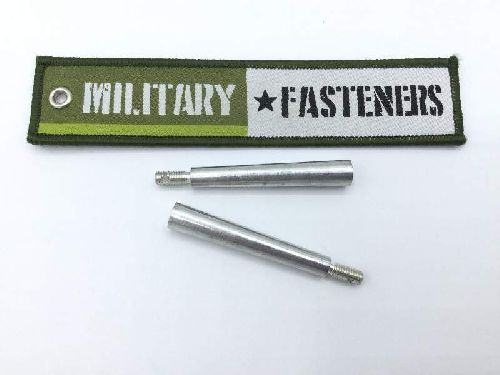

AN386-2-15 Threaded Tapered Pin

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Distance From Centerline Of Hole To End Of Pin: Between 0.109 inches and 0.141 inches
First Hole Diameter: Between 0.070 inches and 0.080 inches
Grip Length: Between 1.859 inches and 1.891 inches
Hole Arrangement Style: One end drilled
Style Designator: Threaded at small end
Taper: 0.500 per foot in inches
Taper Length: Between 1.984 inches and 2.016 inches
Taper Minor Diameter: Between 0.253 inches and 0.257 inches
Thread Direction: Right-hand
Thread Length: Between 0.422 inches and 0.453 inches
Thread Series Designator: Unf (fine thread)
