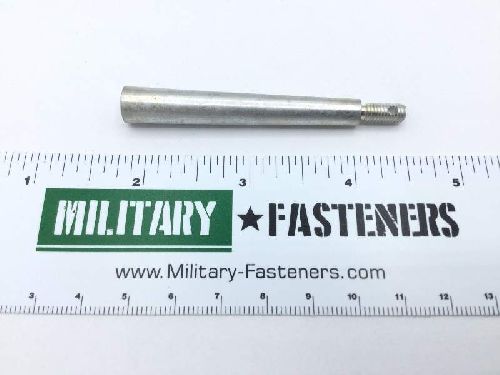

AN386-2-17 Threaded Tapered Pin

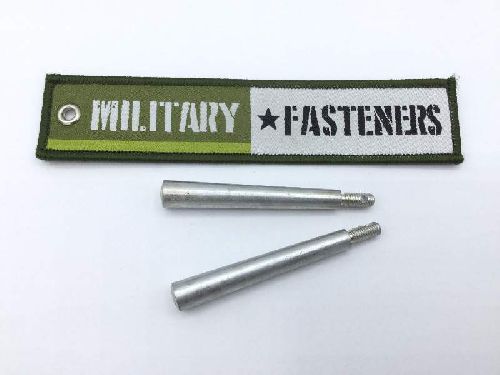

AN386-2-17 Threaded Tapered Pin (2)
AN386-2-17 Threaded Tapered Pin
AN386-2-17 Threaded Tapered Pin (2)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN386-2-17 Threaded Tapered Pin

Product Series
AN
ECCN
EAR99
Schedule
7318.29.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 2330 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130
Surface Treatment
Cl 3 federal specification single treatment response type 1 qq-p-416
Thread Class
3a
Thread Size
0.190 inches
Distance From Centerline Of Hole To End Of Pin
Between 0.109 inches and 0.141 inches
First End Location
Both ends
First End Style
Square
First Hole Diameter
Between 0.070 inches and 0.080 inches
Grip Length
Between 2.109 inches and 2.141 inches
Hole Arrangement Style
One end drilled
Second End Relationship With First End
Identical
Style Designator
Threaded at small end
Taper
0.500 per foot in inches
Taper Length
Between 2.234 inches and 2.266 inches
Taper Major Diameter
0.346 inches
Taper Minor Diameter
Between 0.253 inches and 0.257 inches
Thread Direction
Right-hand
Thread Length
Between 0.422 inches and 0.453 inches
Thread Series Designator
Unf (fine thread)
