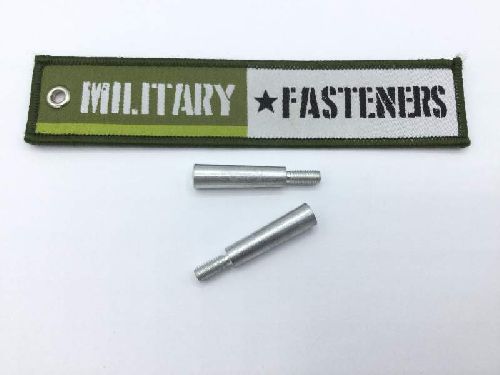

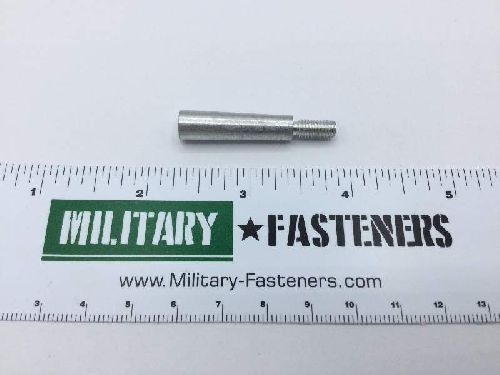

AN386-2-8A Threaded Tapered Pin

Product Series: AN
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $17.32

Units per Pack 5

Price per Pack $86.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $86.60

Add item to quote

Material

Steel or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130

Surface Treatment

Cl 3 federal specification single treatment response type 1 qq-p-416

Thread Class

3a

Thread Size

0.190 inches

Grip Length: Between 0.984 inches and 1.016 inches
Style Designator: Threaded at small end
Taper: 0.500 per foot in inches
Taper Length: Between 1.109 inches and 1.141 inches
Taper Minor Diameter: Between 0.253 inches and 0.257 inches
Thread Direction: Right-hand
Thread Length: Between 0.422 inches and 0.453 inches
Thread Series Designator: Unf (fine thread)
