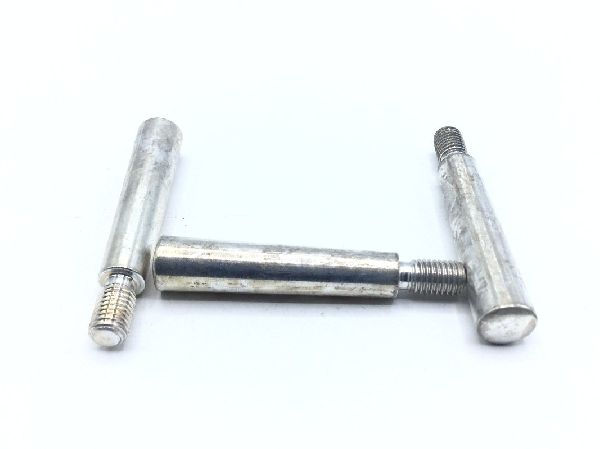

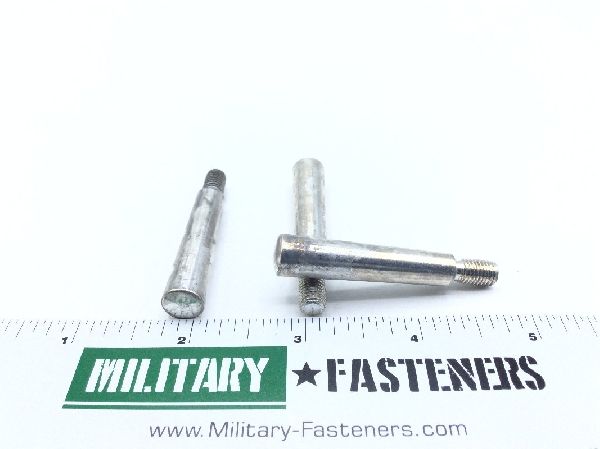

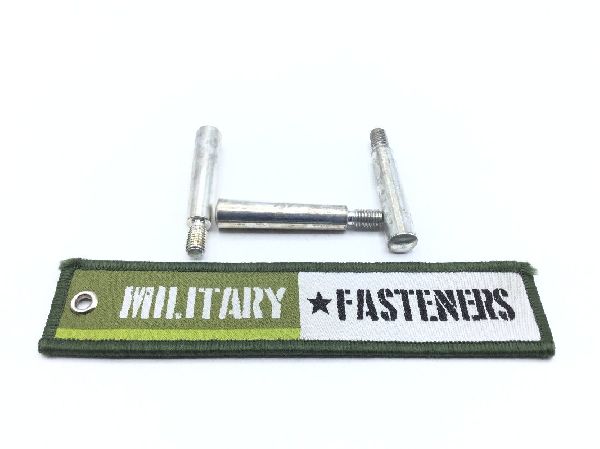

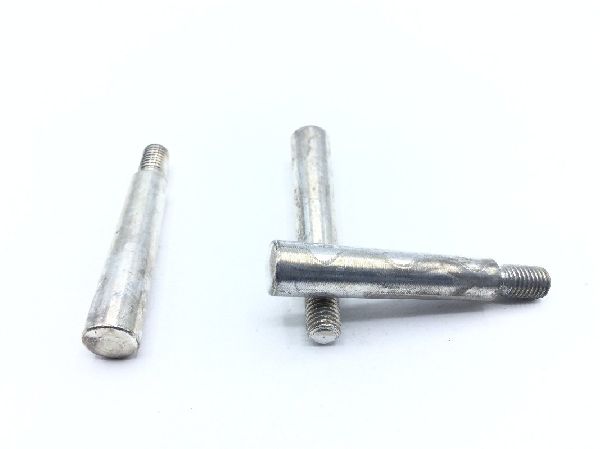

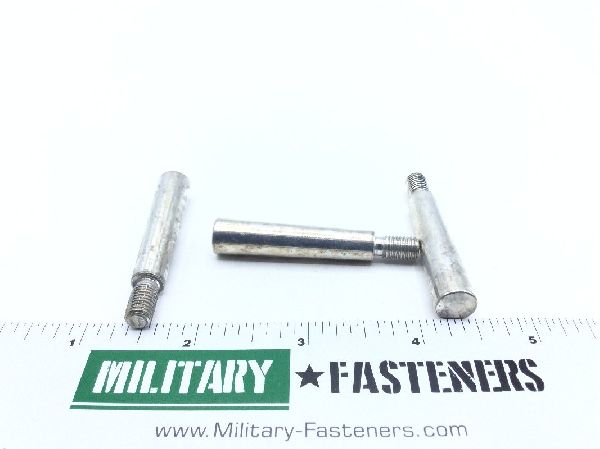

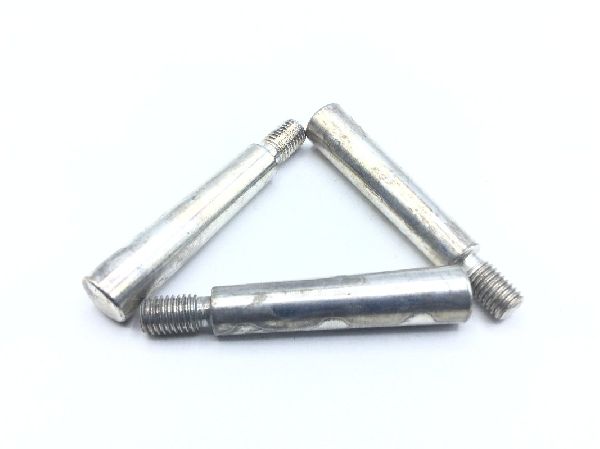

AN386-3-12A Threaded Tapered Pin

Product Series: AN
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $18.71

Units per Pack 5

Price per Pack $93.55

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $93.55

Add item to quote

Material

Steel or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130

Surface Treatment

Cl 3 federal specification single treatment response type 1 qq-p-416

Thread Class

Thread Size

0.250 inches

First End Location: Threaded end
First End Style: Square
Grip Length: Between 1.484 inches and 1.516 inches
Second End Relationship With First End: Not identical
Second End Style: Oval
Style Designator: Threaded at small end
Taper: 0.500 per foot in inches
Taper Length: Between 1.609 inches and 1.641 inches
Taper Major Diameter: 0.384 inches
Taper Minor Diameter: Between 0.315 inches and 0.319 inches
Thread Direction: Right-hand
Thread Length: Between 0.438 inches and 0.469 inches
Thread Series Designator: Unf (fine thread)
