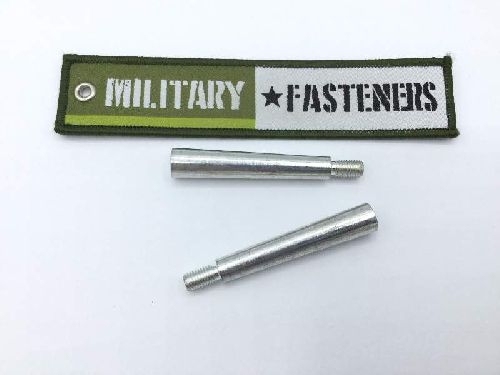

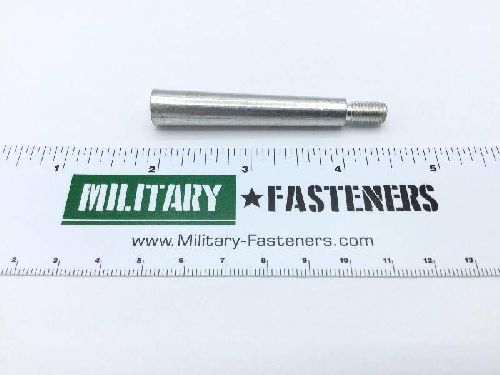

AN386-3-16A Threaded Tapered Pin

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

First End Location: Oval end
First End Style: Oval
Grip Length: Between 1.984 inches and 2.016 inches
Second End Relationship With First End: Not identical
Second End Style: Square
Style Designator: Threaded at small end
Taper: 0.500 per foot in inches
Taper Length: Between 2.000 inches and 2.125 inches
Taper Major Diameter: 0.408 inches
Taper Minor Diameter: Between 0.315 inches and 0.319 inches
Thread Direction: Right-hand
Thread Length: Between 0.438 inches and 0.469 inches
Thread Series Designator: Unf (fine thread)
