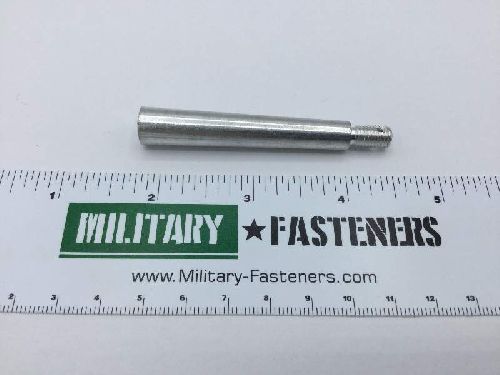

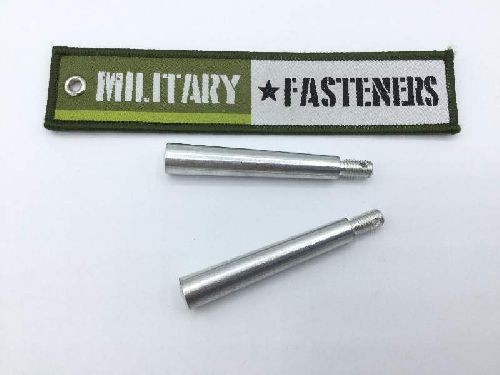

AN386-3-17 Threaded Tapered Pin

NSN: 5315-00-198-8133
Product Series: AN
ECCN: EAR99
Schedule: 7318.24.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 1 qq-p-416

Thread Class

Thread Size

0.250 inches

Distance From Centerline Of Hole To End Of Pin: 0.125 inches
First Hole Diameter: 0.076 inches
Grip Length: Between 2.109 inches and 2.141 inches
Hole Arrangement Style: One end drilled
Material Specification: Mil-s-6049 military specification 1st material response or mil-s-6050 military specification 2nd material response or mil-s-6098 military specification 3rd material response or mil-s-6758 military specification 4th material response
Style Designator: Threaded at small end
Taper: 0.500 per foot in inches
Taper Length: Between 2.234 inches and 2.266 inches
Taper Minor Diameter: Between 0.315 inches and 0.319 inches
Thread Direction: Right-hand
Thread Length: 0.382 inches
Thread Series Designator: Unf (fine thread)
