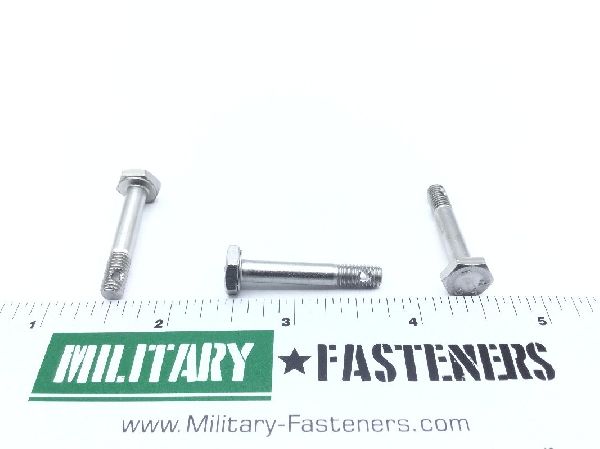

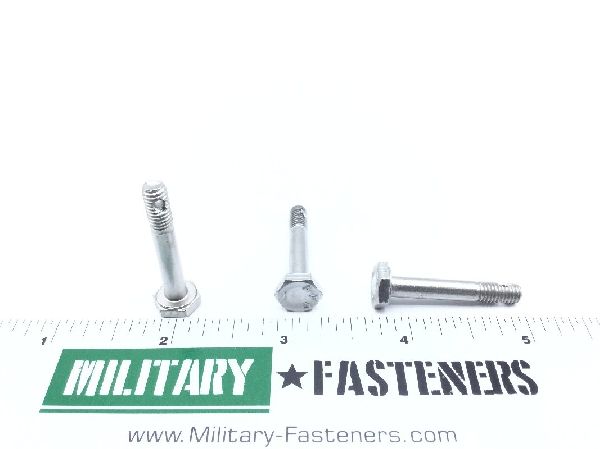

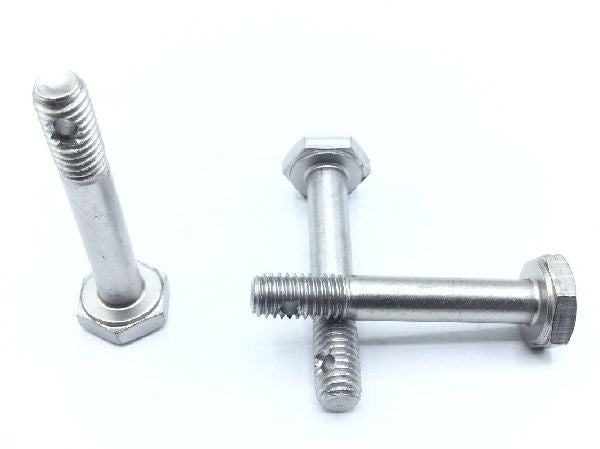

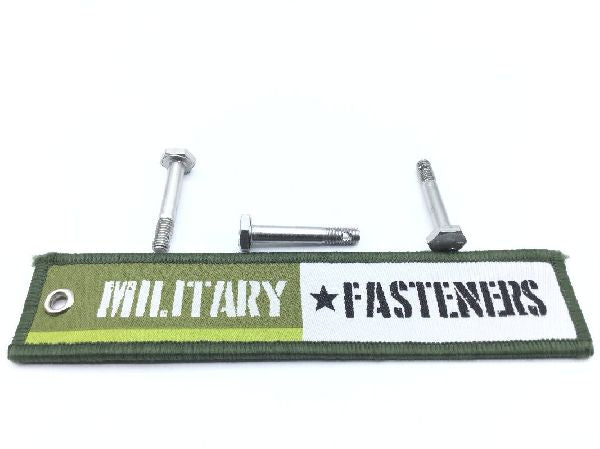

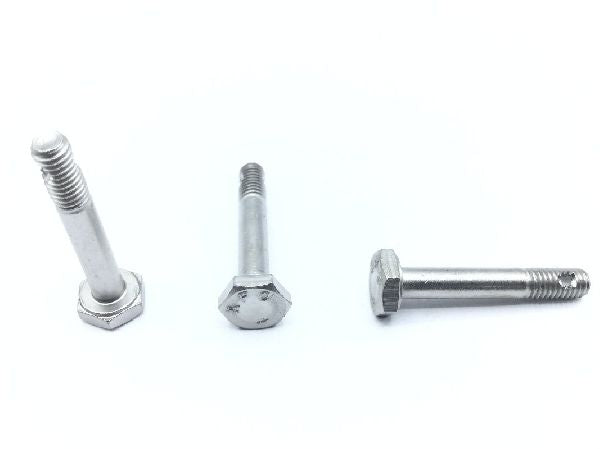

AN3C11 Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $1.66

Units per Pack 25

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Head Style

Hexagon

Material

Stainless Steel

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.016 inches first hole
Fastener Length: 1.156 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 0.750 inches
Head Height: Between 0.109 inches and 0.141 inches
Material Specification: Qq-s-770 federal specification single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.070 inches first hole
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.406 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.365 inches and 0.377 inches
