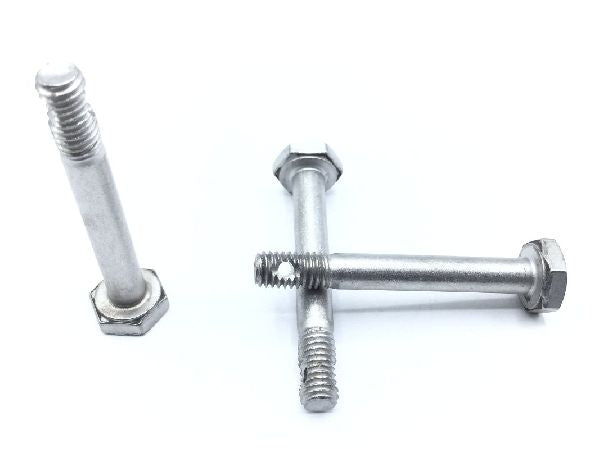

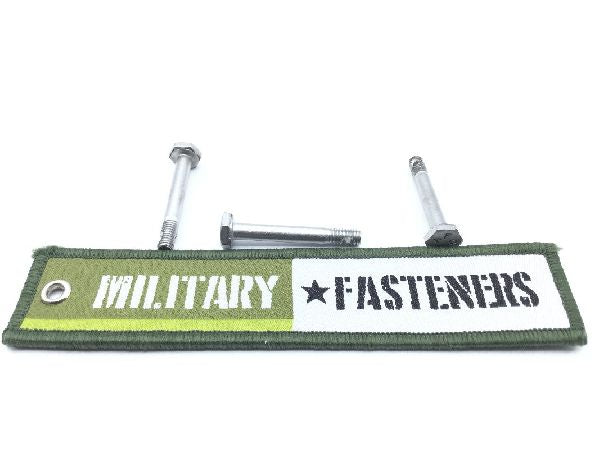

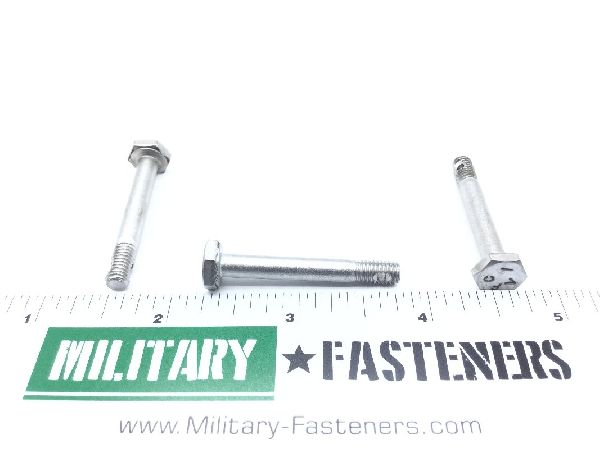

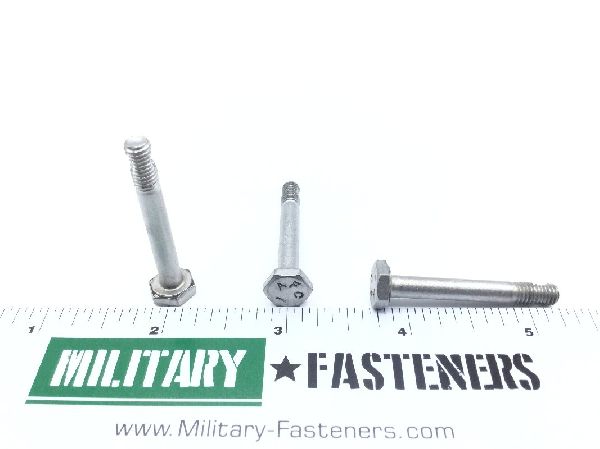

AN3C13 Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Stainless Steel

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.266 inches first hole
Fastener Length: 1.406 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 1.000 inches
Head Height: Between 0.109 inches and 0.141 inches
Material Specification: Qq-s-770 federal specification single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.070 inches first hole
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.406 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.365 inches and 0.377 inches
