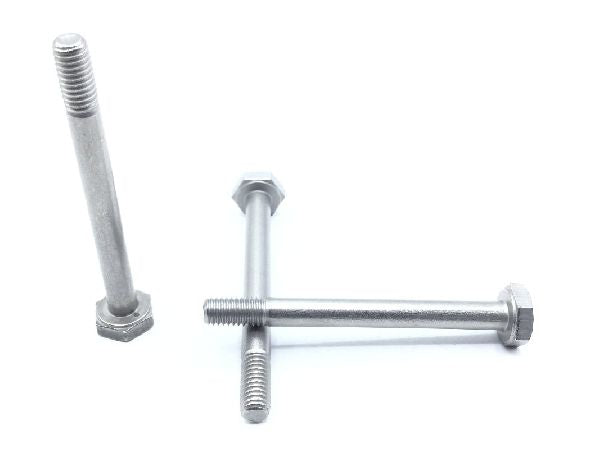

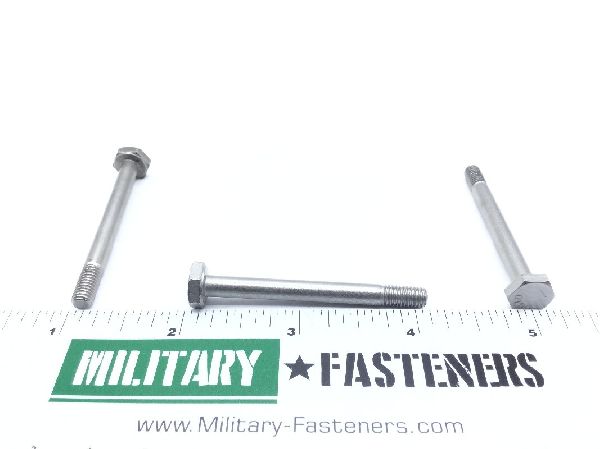

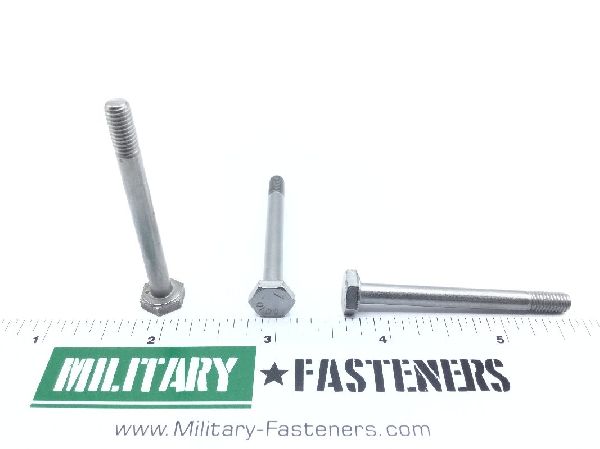

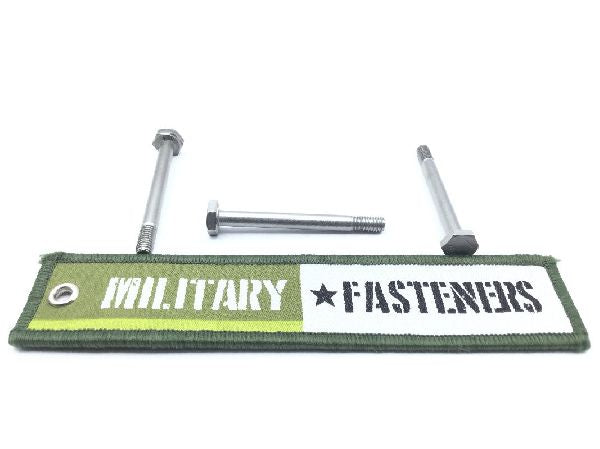

AN3C17A Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $2.64

Units per Pack 20

Price per Pack $52.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $52.80

Add item to quote

Head Style

Hexagon

Material

Stainless Steel

Thread Class

Fastener Length: Between 1.891 inches and 1.938 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 1.484 inches and 1.516 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.203 inches and 0.235 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.375 inches and 0.453 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.565 inches
