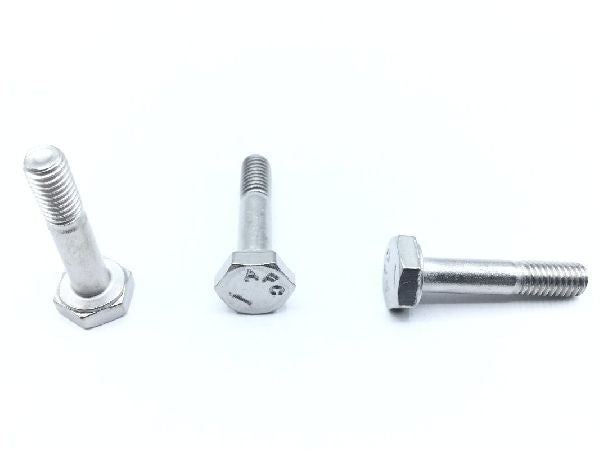

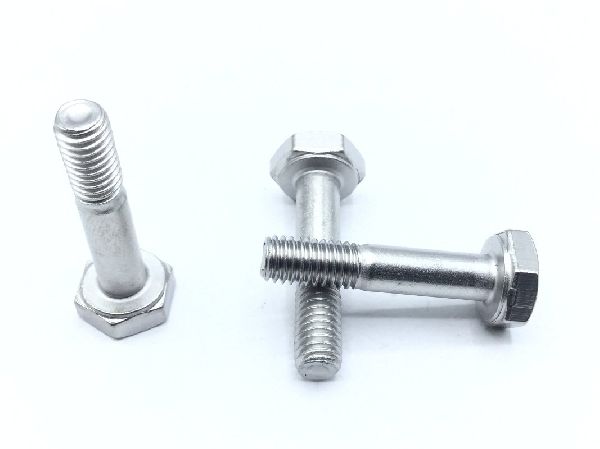

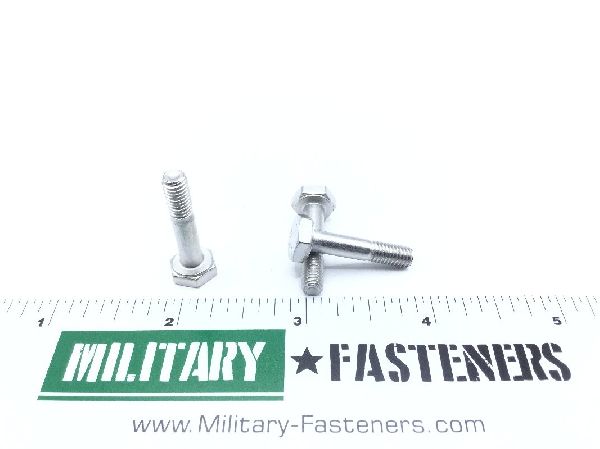

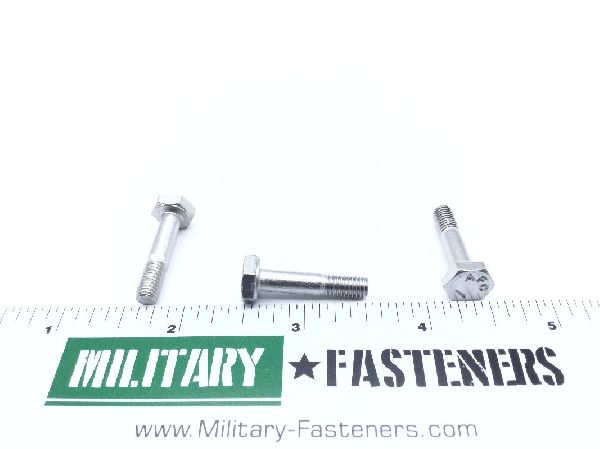

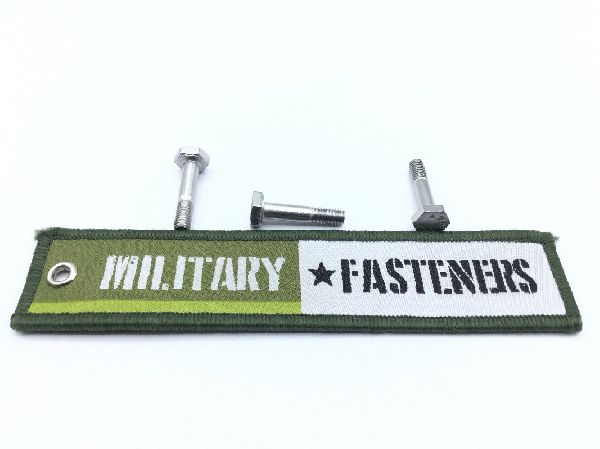

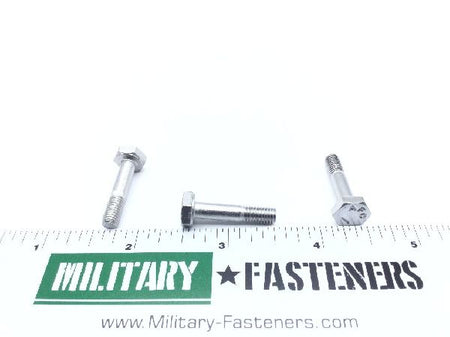

AN3C7A Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $2.00

Units per Pack 20

Price per Pack $40.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $40.00

Add item to quote

Head Style

Hexagon

Material

Steel comp 431

Thread Class

End Application: Joint stars target radar system;aircraft airlifter c-17a
Fastener Length: Between 0.891 inches and 0.938 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.484 inches and 0.516 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.109 inches and 0.141 inches
Material Specification: Mil-s-18732 military specification single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.374 inches and 0.453 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.365 inches and 0.377 inches
