Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

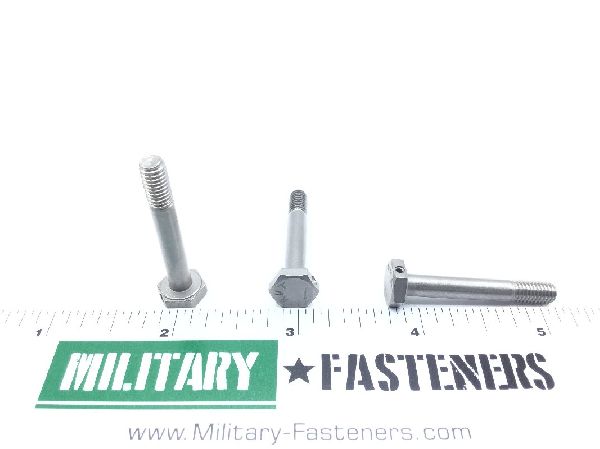

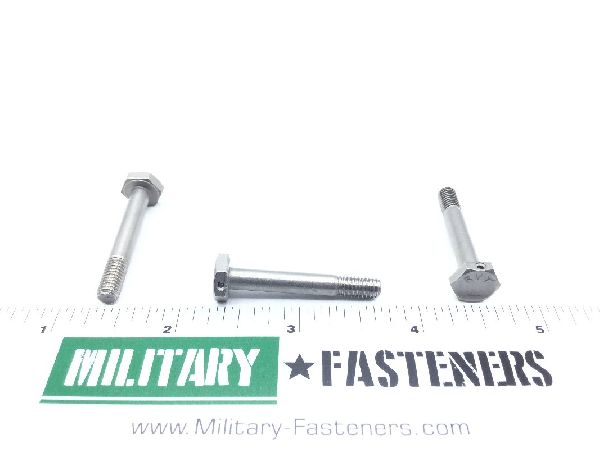

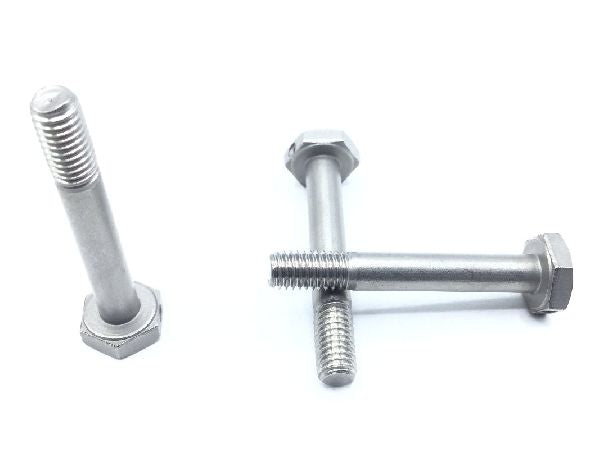

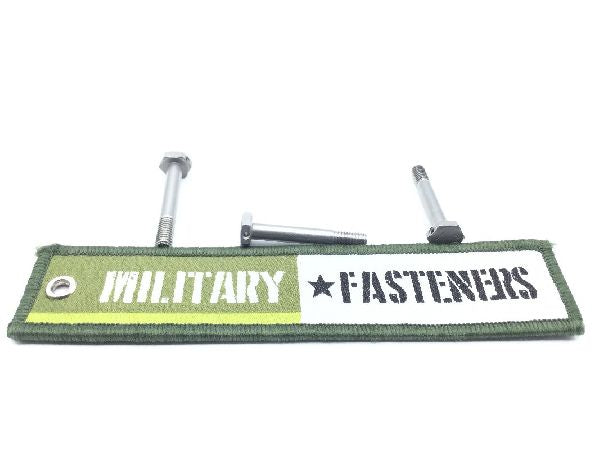

AN3CH12A Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $2.15

Units per Pack 20

Price per Pack $43.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $43.00

Add item to quote

Head Style

Hexagon

Material

Stainless Steel

Thread Class

Fastener Length: 1.281 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 0.875 inches
Head Height: Between 0.109 inches and 0.141 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 1
Hole Type: Drilled
Material Specification: Qq-s-770 federal specification single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.406 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.365 inches and 0.377 inches
Hole Diameter: 0.046 inches
