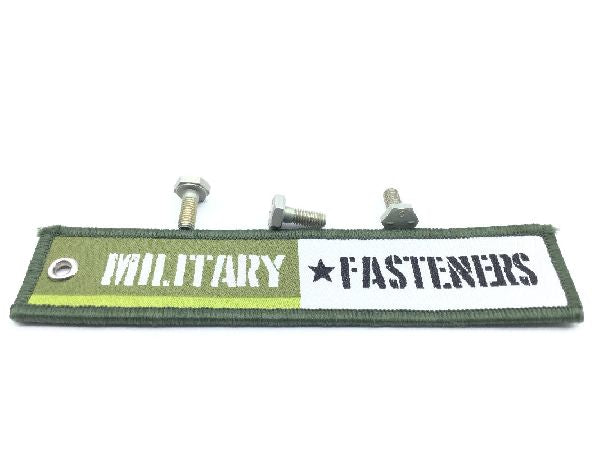

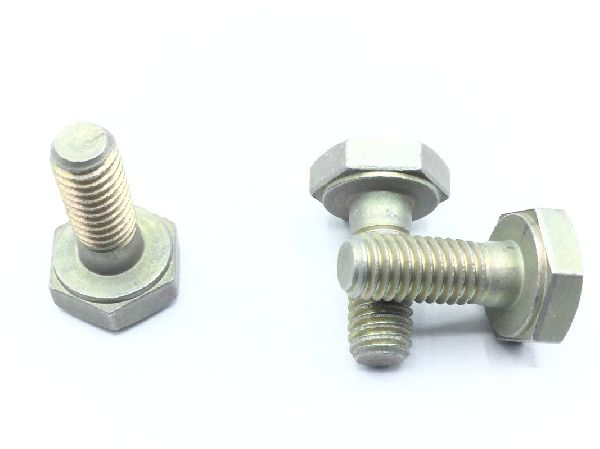

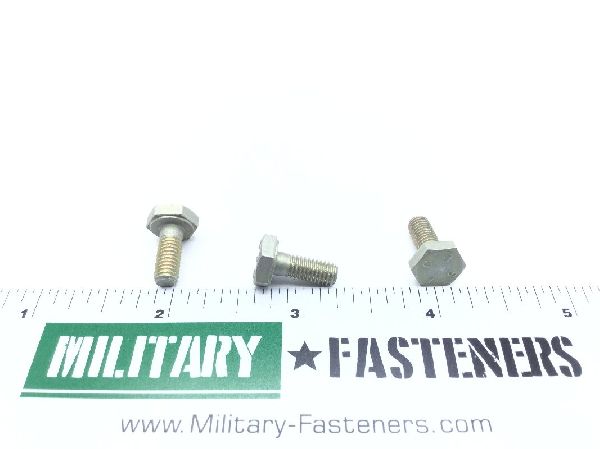

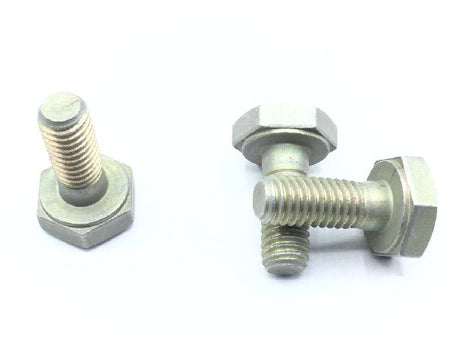

AN3DD3A Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $2.29

Units per Pack 20

Price per Pack $45.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $45.80

Add item to quote

Head Style

Hexagon

Material

Aluminum alloy

Surface Treatment

Mil-c-5541 military specification 1st treatment response and mil-a-8625 military specification 2nd treatment response

Thread Class

Fastener Length: Between 0.453 inches and 0.500 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.052 inches and 0.072 inches
Head Height: Between 0.109 inches and 0.141 inches
Material Specification: Qq-a-200 federal specification single material response or qq-a-225 federal specification single material response or qq-a-430 federal specification single material response
Min. Tensile Strength (psi): 62000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.374 inches and 0.453 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.365 inches and 0.377 inches
