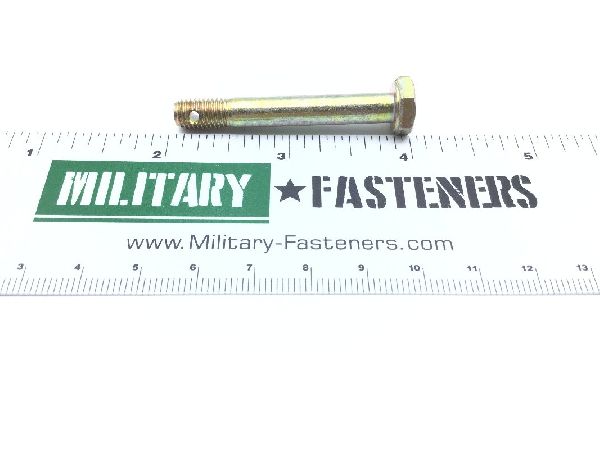

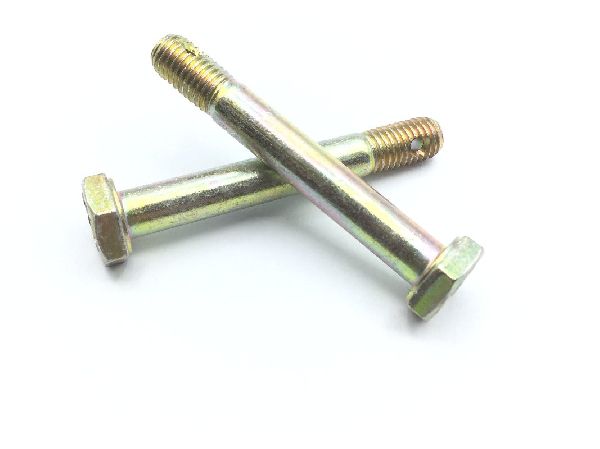

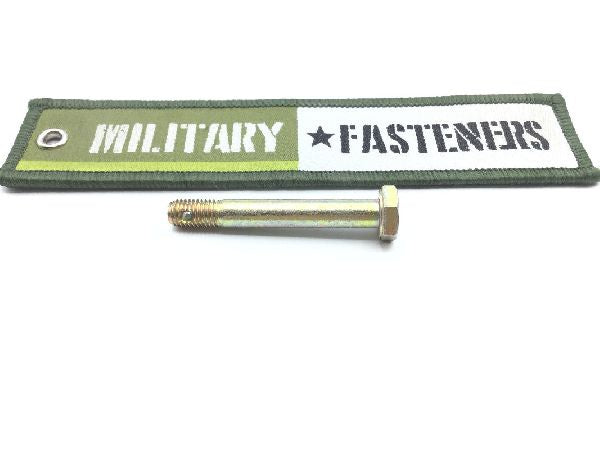

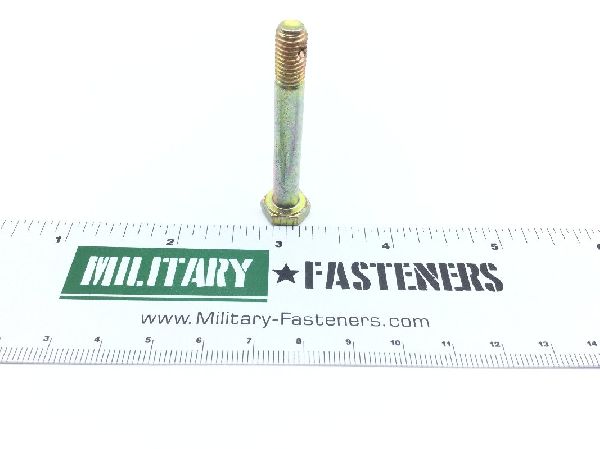

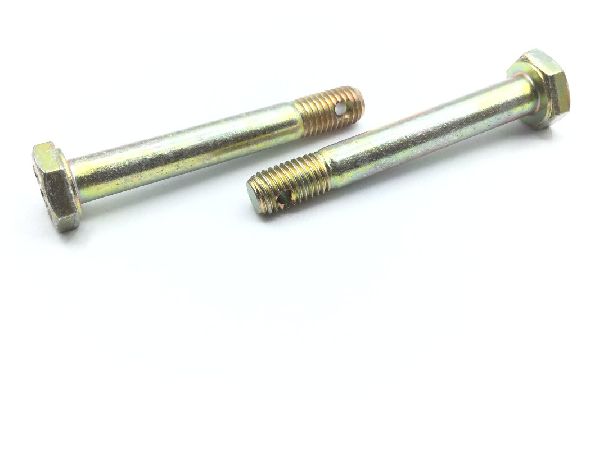

AN4-16 Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4037 or steel comp 4140 or steel comp 4130

Surface Treatment

Class 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.624 inches first hole
Fastener Length: 1.781 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 1.312 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.140 inches and 0.172 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.469 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.440 inches
