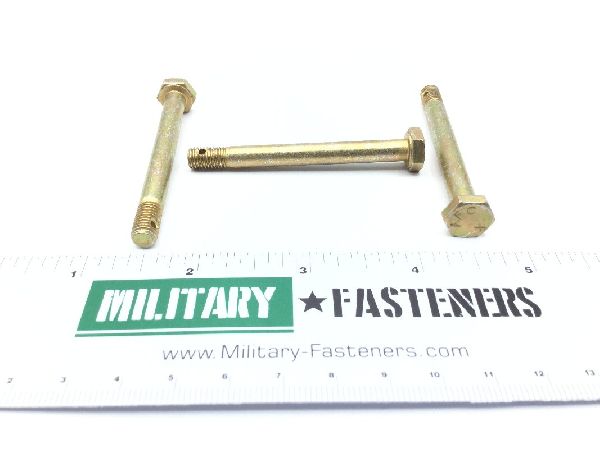

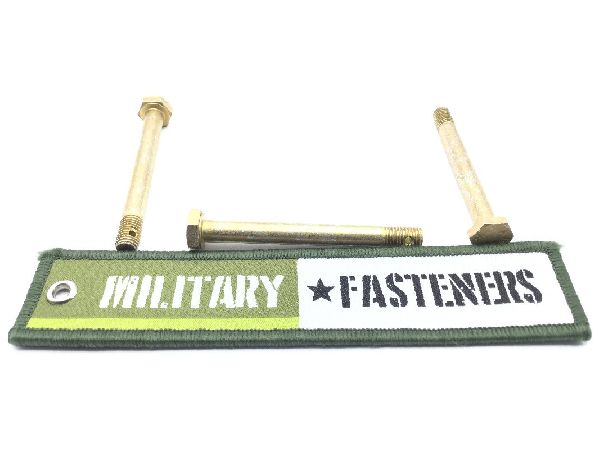

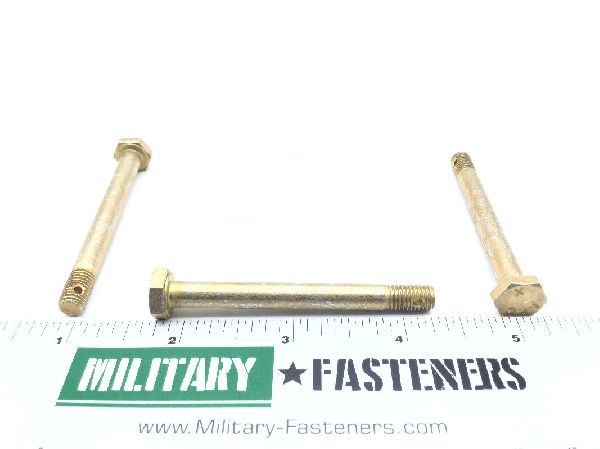

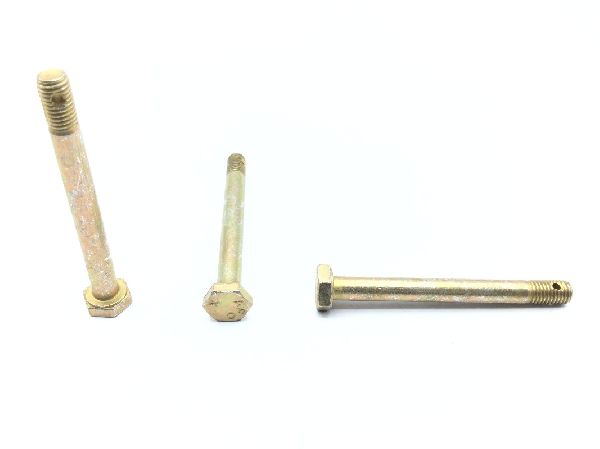

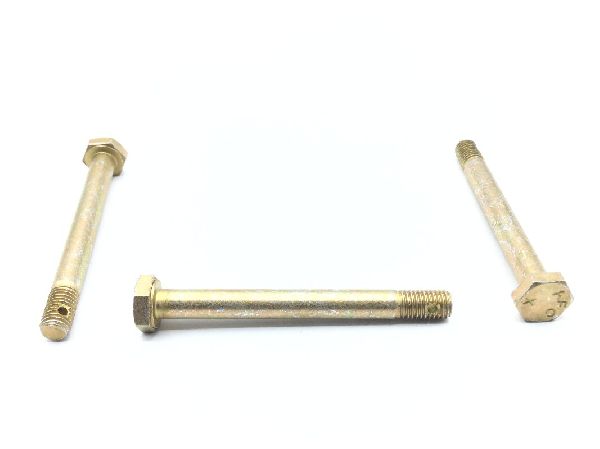

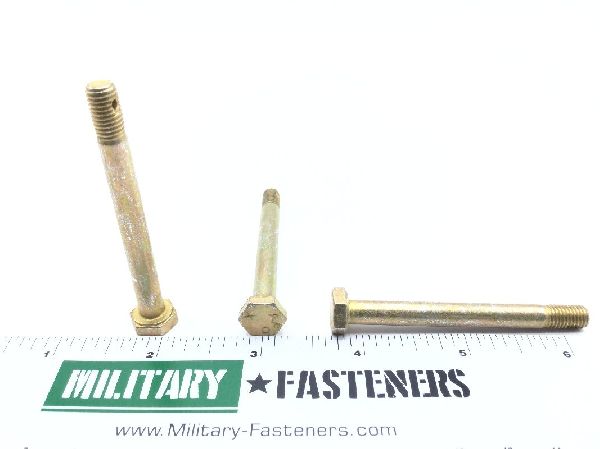

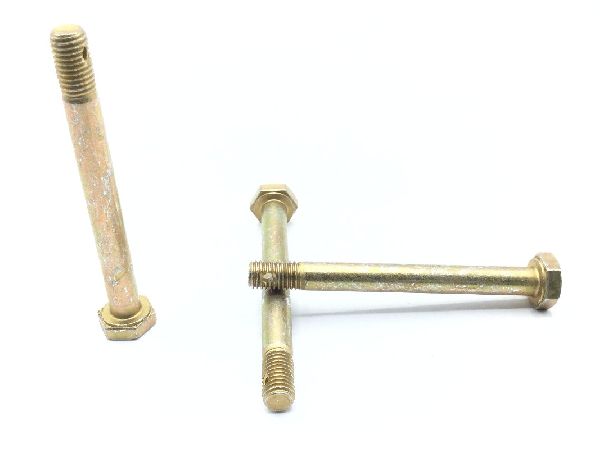

AN4-23 Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $1.52

Units per Pack 25

Price per Pack $38.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $38.00

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 3 federal specification all treatment responses

Thread Class

Thread Quantity Per Inch (tpi)

Distance From Head Largest Surface To Shank Hole Center: 2.234 inches first hole and 2.266 inches first hole
Fastener Length: Between 2.391 inches and 2.438 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 1.922 inches and 1.953 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.140 inches and 0.172 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.438 inches and 0.516 inches
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.440 inches
