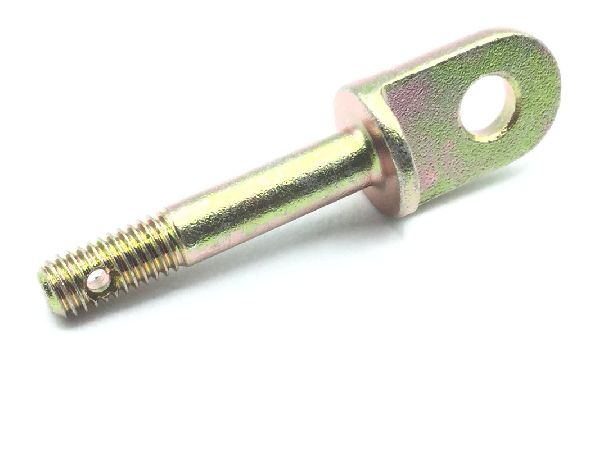

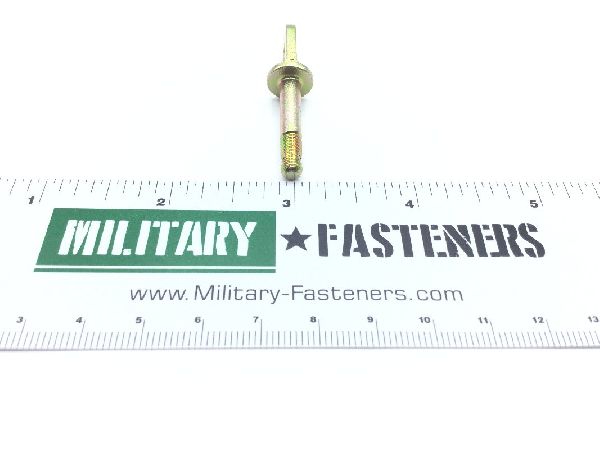

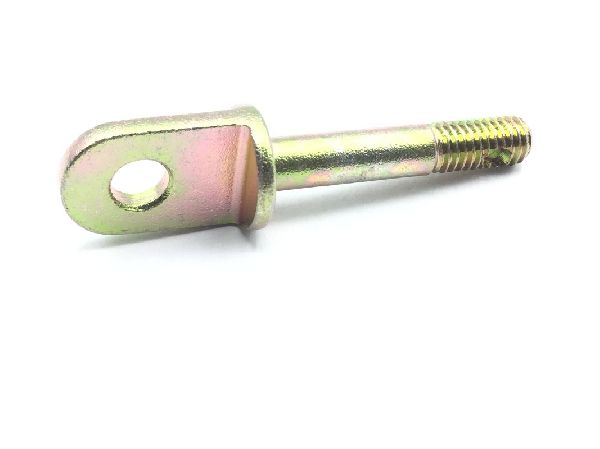

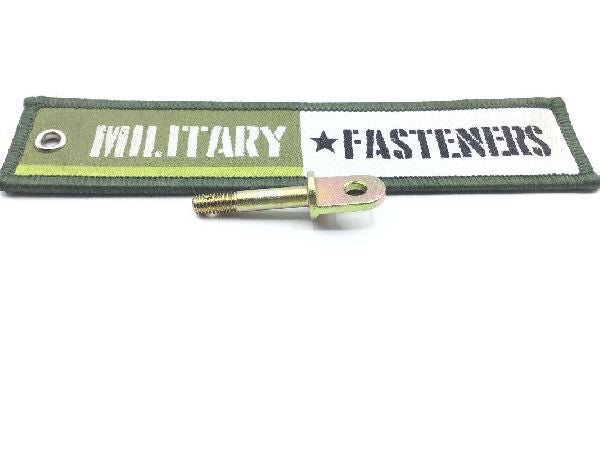

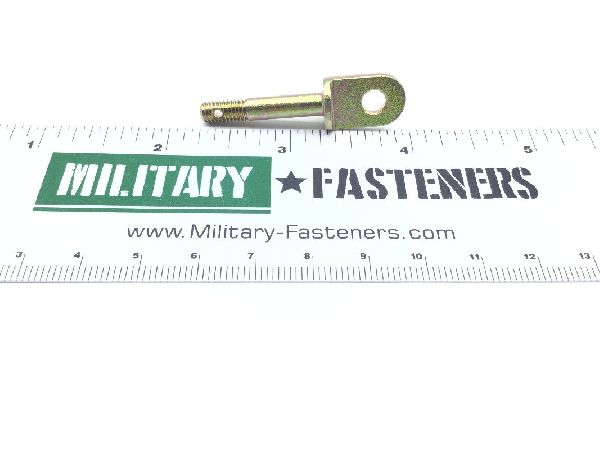

AN42B10 Eye Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $44.28

Units per Pack 1

Price per Pack $44.28

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $44.28

Add item to quote

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Overall Length

1.686 inches

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Distance From Threaded End To Shank Hole Center: 0.875 inches first hole and 0.906 inches first hole
Eye Inside Diameter: Between 0.190 inches and 0.192 inches
Eye Outside Width: 0.437 inches
Eye Stock Thickness: Between 0.089 inches and 0.099 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Length: Between 1.016 inches and 1.062 inches
Shank Unthreaded Hole Diameter: 0.060 inches first hole and 0.080 inches first hole
Shoulder Diameter: 0.437 inches
Shoulder Thickness: 0.062 inches
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.391 inches and 0.437 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
