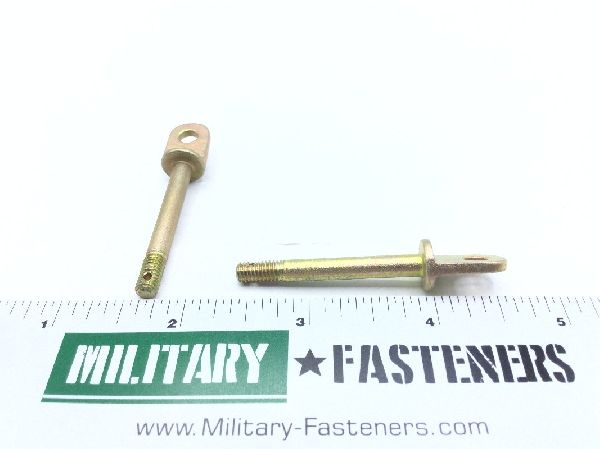

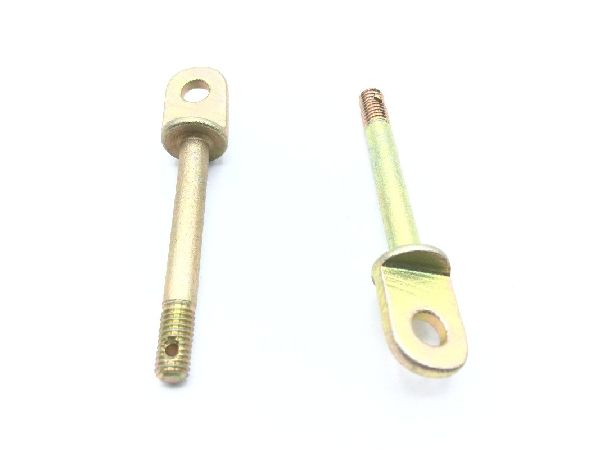

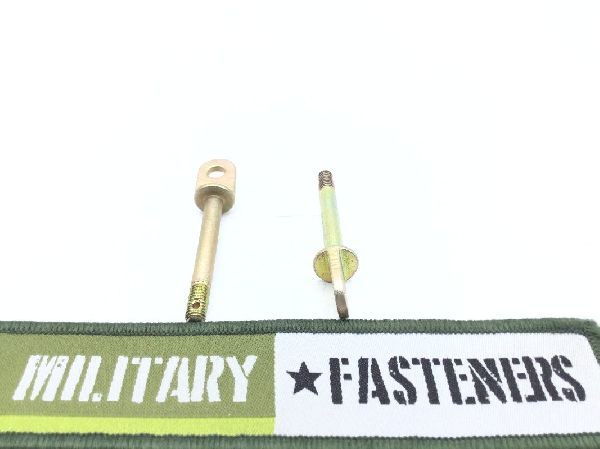

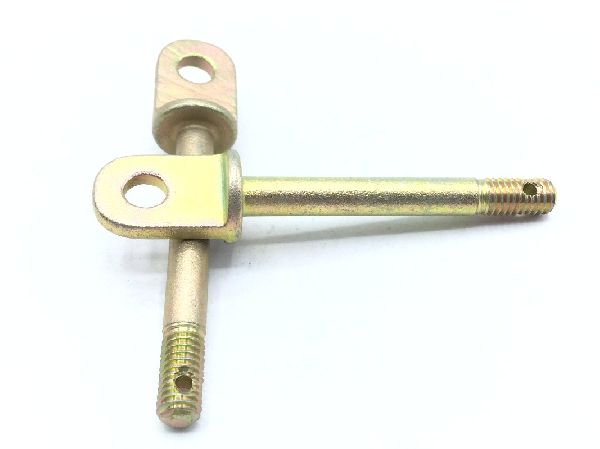

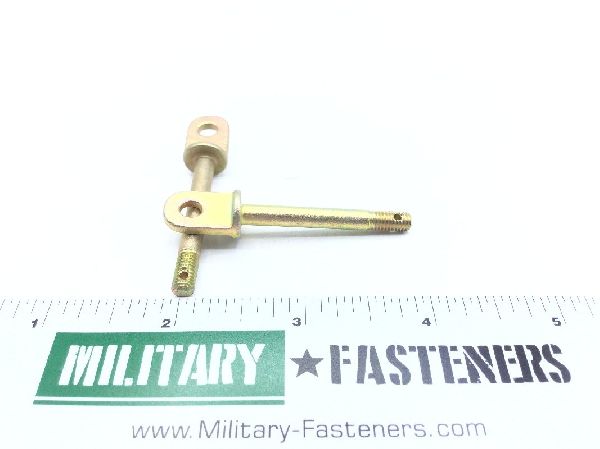

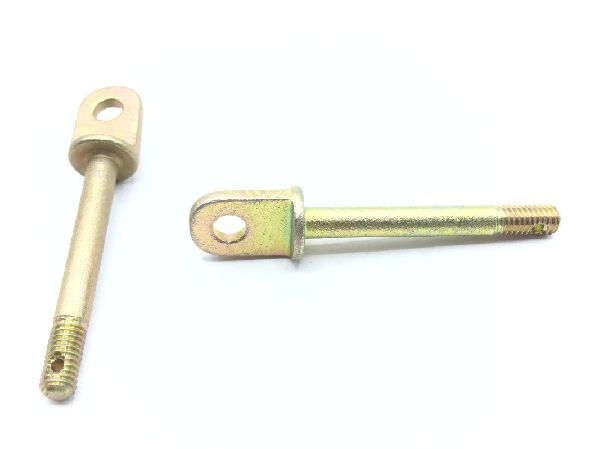

AN42B14 Eye Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $25.14

Units per Pack 2

Price per Pack $50.28

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $50.28

Add item to quote

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Overall Length

2.188 inches

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Distance From Center Of Eye To Shank End: 1.935 inches
Distance From Threaded End To Shank Hole Center: 1.391 inches first hole
Eye Inside Diameter: Between 0.190 inches and 0.192 inches
Eye Outside Width: 0.438 inches
Eye Stock Thickness: 0.094 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Length: Between 1.515 inches and 1.562 inches
Shank Unthreaded Hole Diameter: 0.070 inches first hole
Shoulder Diameter: 0.438 inches
Shoulder Thickness: 0.062 inches
Style Designator: closed w/shoulder round
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.406 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
