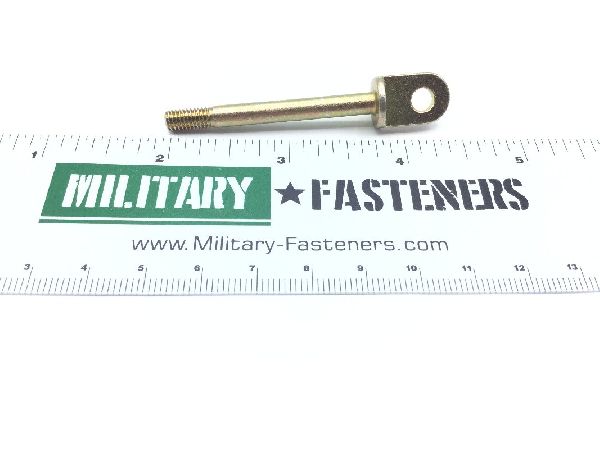

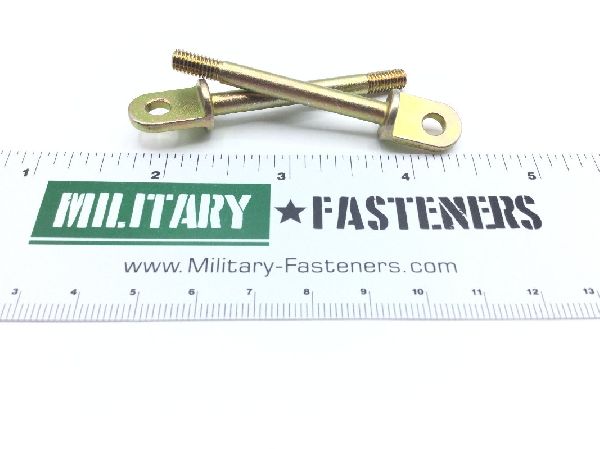

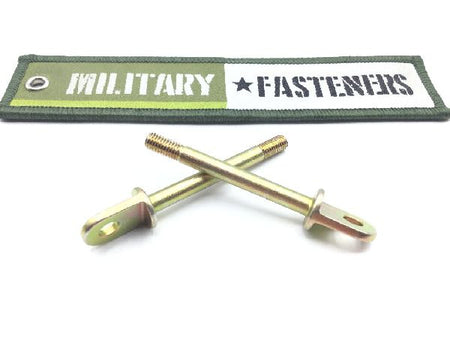

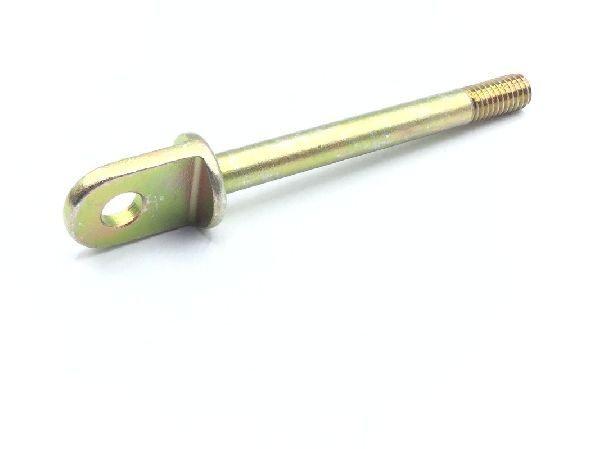

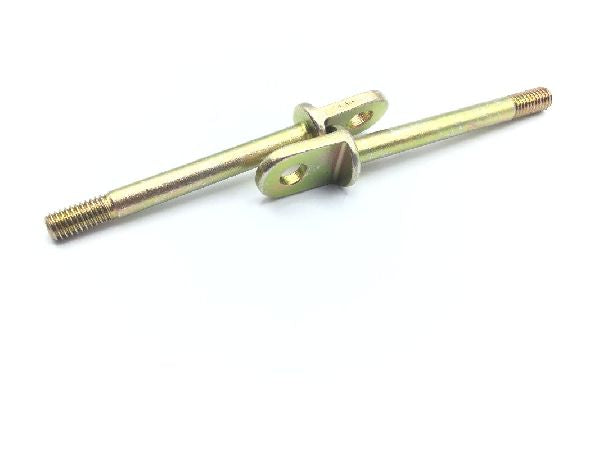

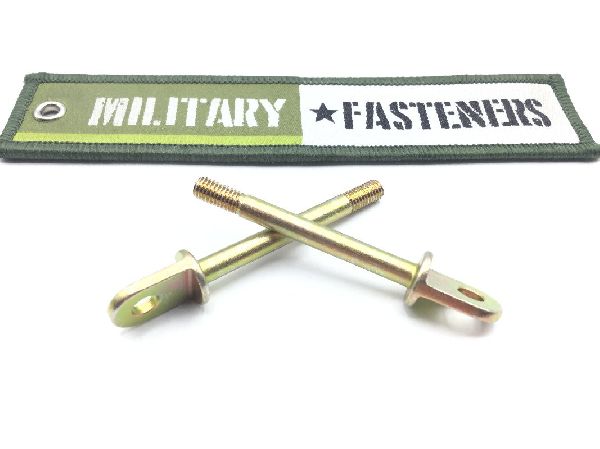

AN42B16A Eye Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $17.32

Units per Pack 5

Price per Pack $86.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $86.60

Add item to quote

Material

Steel comp

Overall Length

2.437 inches

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Eye Inside Diameter: Between 0.190 inches and 0.192 inches
Eye Outside Width: 0.437 inches
Eye Stock Thickness: Between 0.089 inches and 0.099 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Length: Between 1.766 inches and 1.812 inches
Shoulder Diameter: 0.437 inches
Shoulder Thickness: 0.062 inches
Style Designator: closed with shoulder round
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.391 inches and 0.437 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
