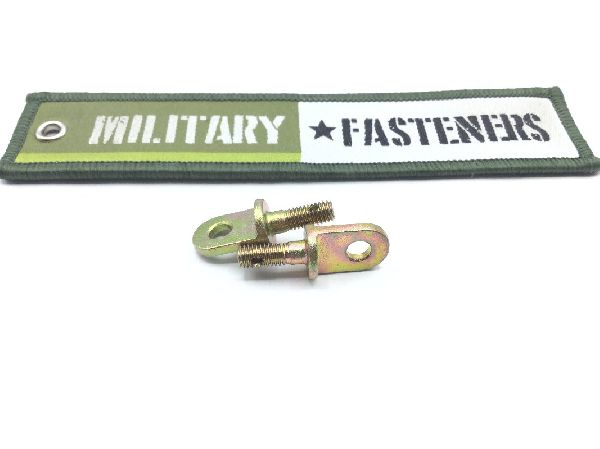

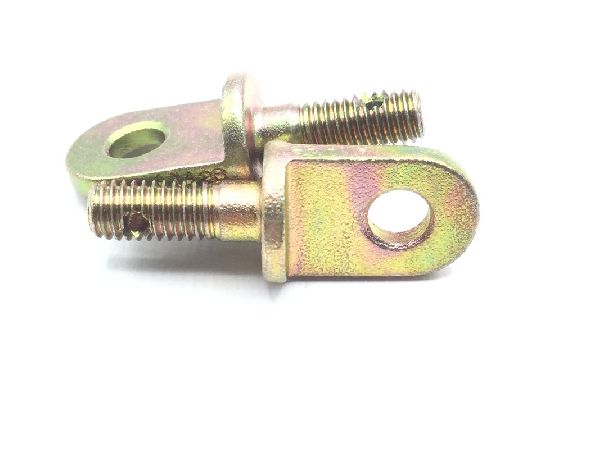

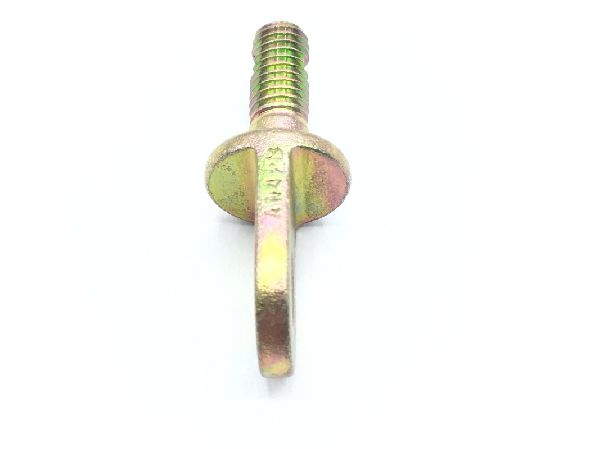

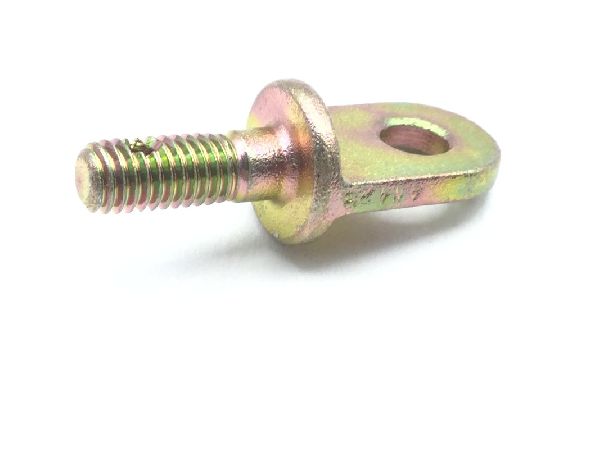

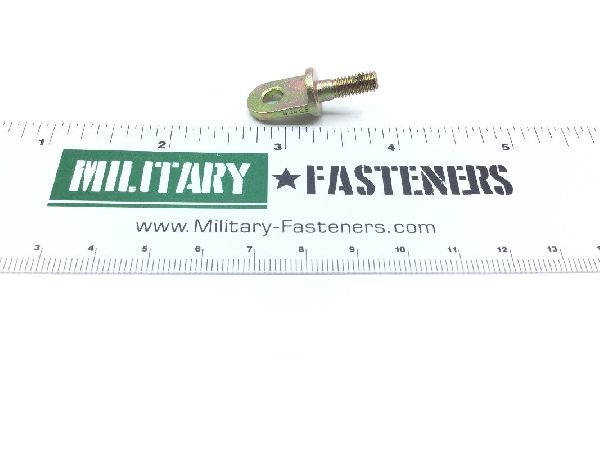

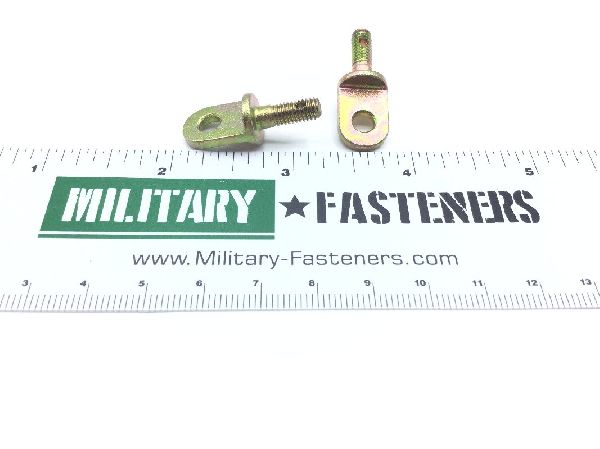

AN42B4 Eye Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $35.70

Units per Pack 2

Price per Pack $71.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $71.40

Add item to quote

Material

Steel

Overall Length

1.186 inches

Surface Treatment

Type 2 cl 3 federal specification single treatment response qq-p-416

Thread Class

Distance From Center Of Eye To Shank End: 0.968 inches
Distance From Threaded End To Shank Hole Center: 0.375 inches first hole and 0.406 inches first hole
Eye Inside Diameter: Between 0.190 inches and 0.192 inches
Eye Outside Width: 0.437 inches
Eye Stock Thickness: Between 0.089 inches and 0.099 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Length: Between 0.516 inches and 0.562 inches
Shank Unthreaded Hole Diameter: 0.060 inches first hole and 0.080 inches first hole
Shoulder Diameter: 0.437 inches
Shoulder Thickness: 0.062 inches
Style Designator: closed w/shoulder round
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.391 inches and 0.437 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
