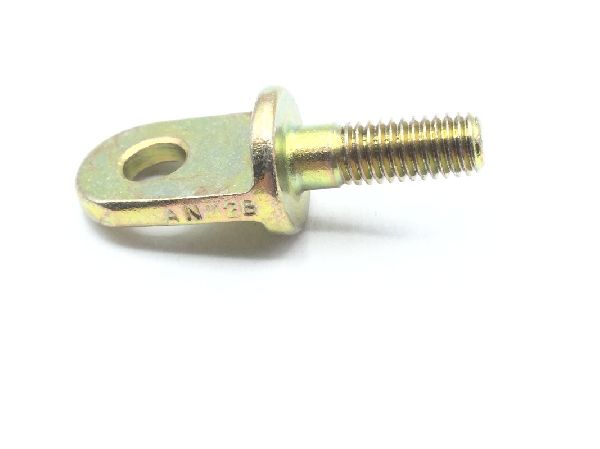

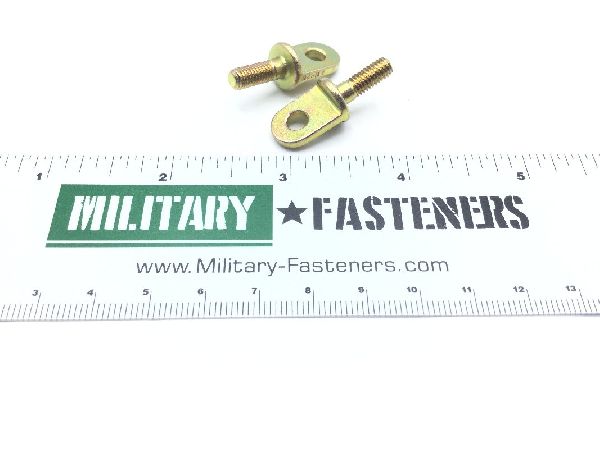

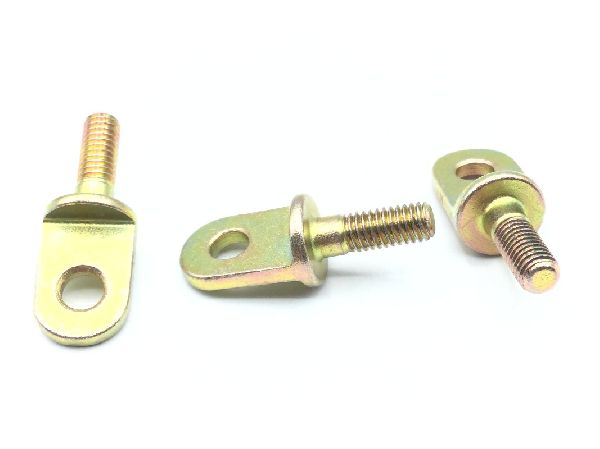

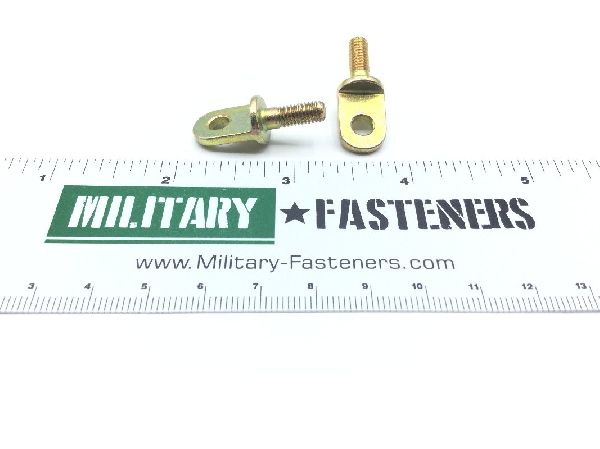

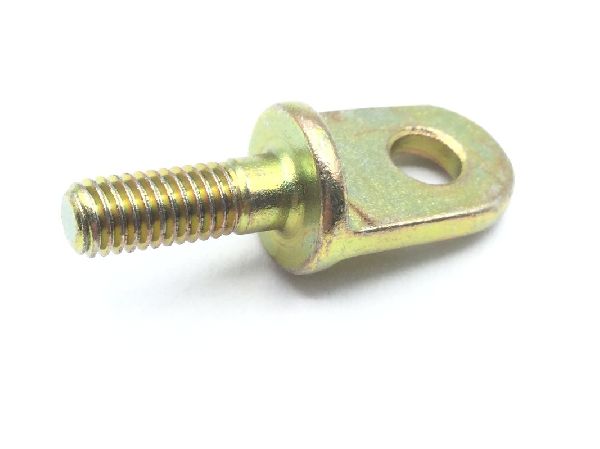

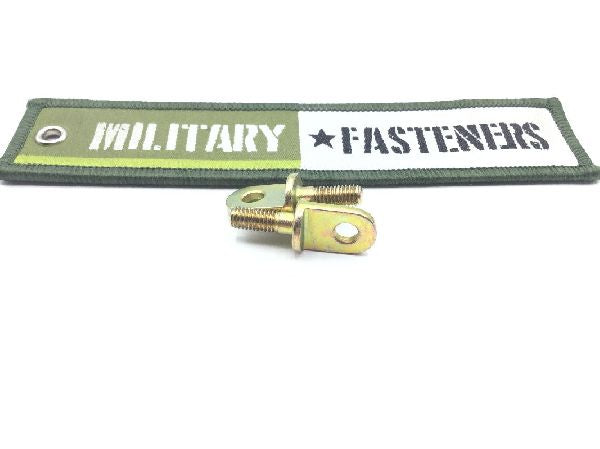

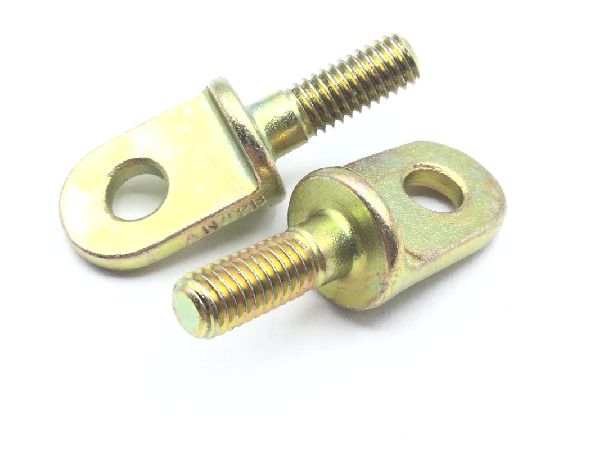

AN42B4A Eye Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Overall Length

1.187 inches

Thread Class

Distance From Center Of Eye To Shank End: Between 0.937 inches and 0.938 inches
Eye Inside Diameter: Between 0.190 inches and 0.192 inches
Eye Outside Width: 0.438 inches
Eye Stock Diameter: 0.094 inches
Shank Length: 0.531 inches
Shoulder Diameter: 0.438 inches
Shoulder Thickness: 0.063 inches
Style Designator: closed w/shoulder round
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.406 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
