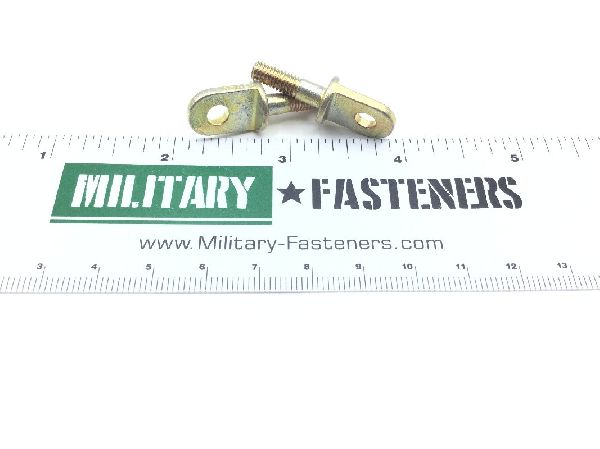

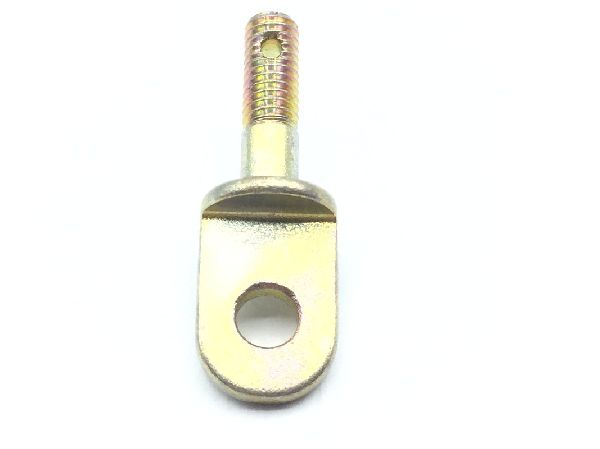

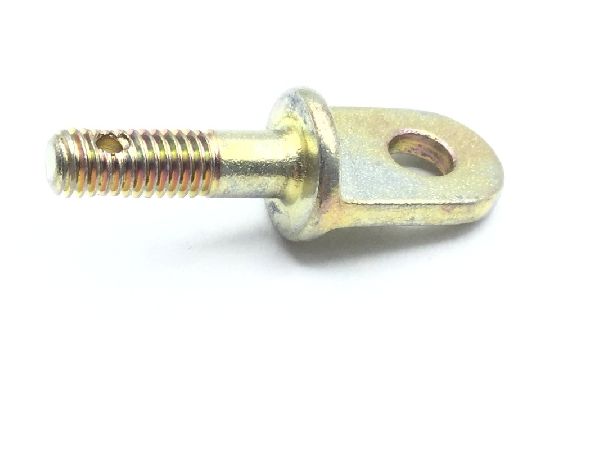

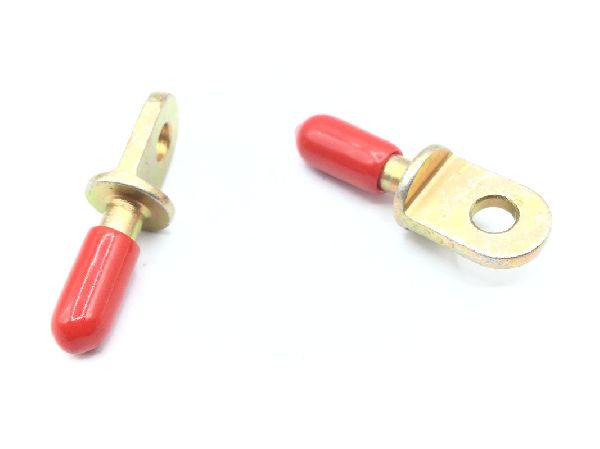

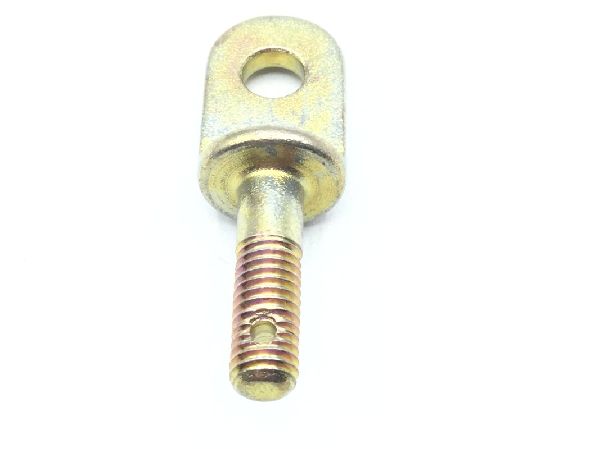

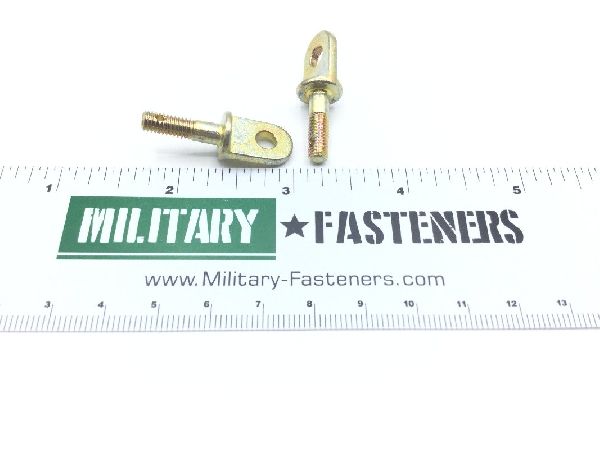

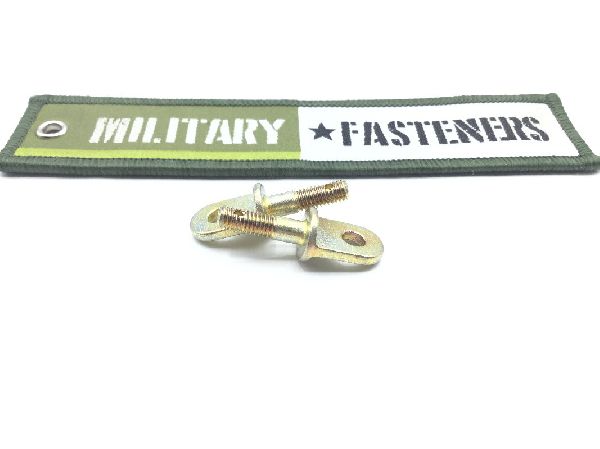

AN42B5 Eye Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Overall Length

1.311 inches

Surface Treatment

Type 2 cl 3 federal specification single treatment response qq-p-416

Thread Class

Distance From Center Of Eye To Shank End: 1.093 inches
Distance From Threaded End To Shank Hole Center: 0.500 inches first hole and 0.531 inches first hole
Eye Inside Diameter: Between 0.190 inches and 0.192 inches
Eye Outside Width: 0.437 inches
Eye Stock Thickness: Between 0.089 inches and 0.099 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Length: Between 0.641 inches and 0.688 inches
Shank Unthreaded Hole Diameter: 0.060 inches first hole and 0.080 inches first hole
Shoulder Diameter: 0.437 inches
Shoulder Thickness: 0.062 inches
Style Designator: closed w/shoulder round
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.391 inches and 0.437 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
