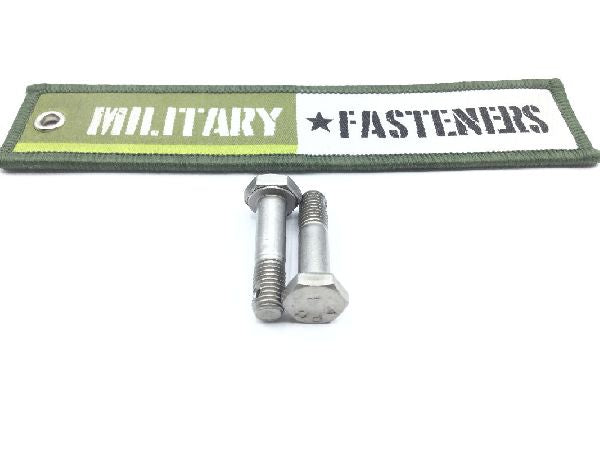

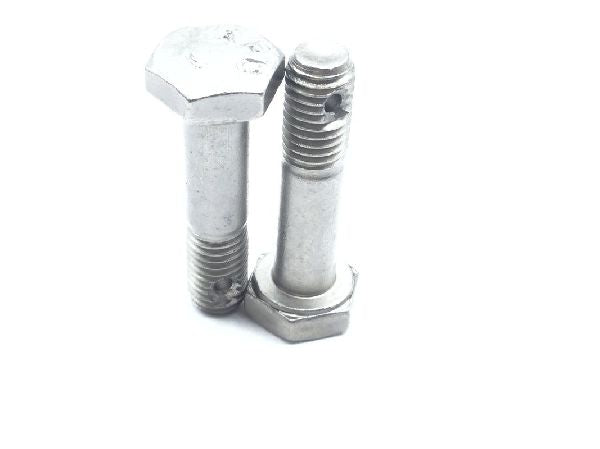

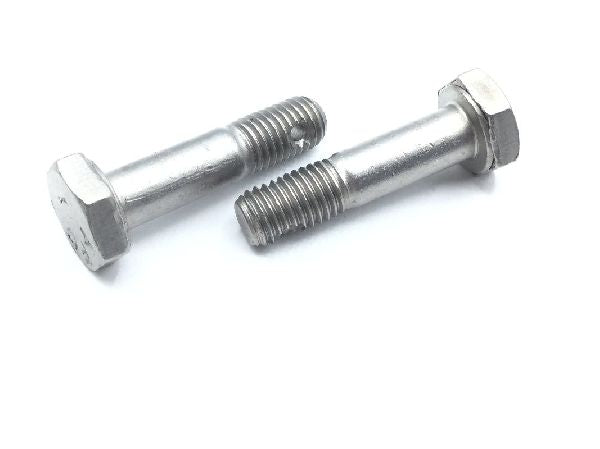

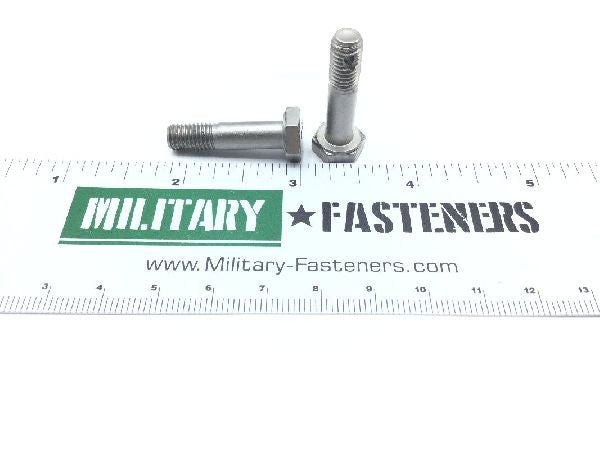

AN4C10 Machine Bolt

NSN: 5306-00-151-2538
Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $3.68

Units per Pack 10

Price per Pack $36.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $36.80

Add item to quote

Head Style

Hexagon

Material

Steel comp 431

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 0.859 inches first hole and 0.891 inches first hole
Fastener Length: Between 1.016 inches and 1.062 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.547 inches and 0.578 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.140 inches and 0.172 inches
Material Specification: Mil-s-18732 military specification single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.438 inches and 0.516 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.440 inches
