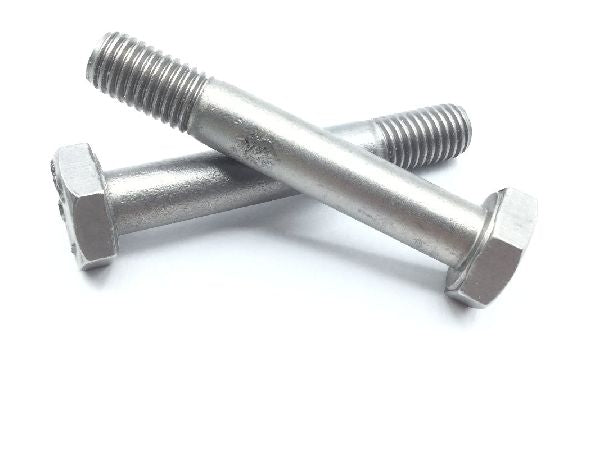

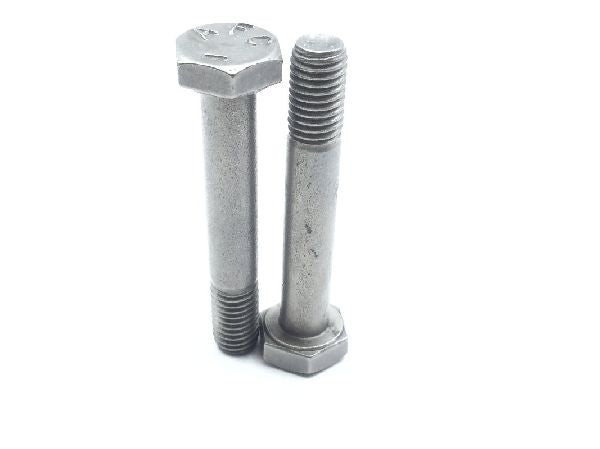

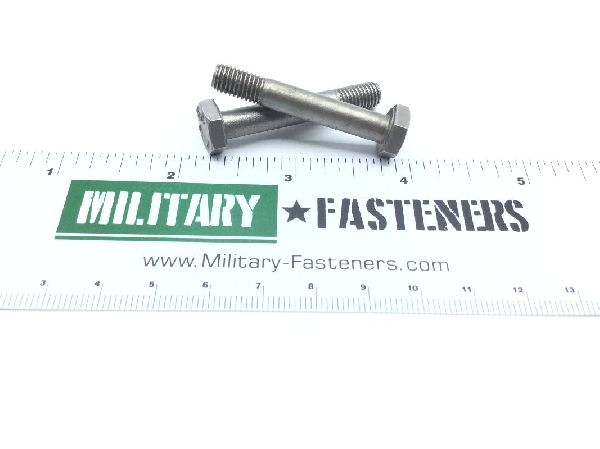

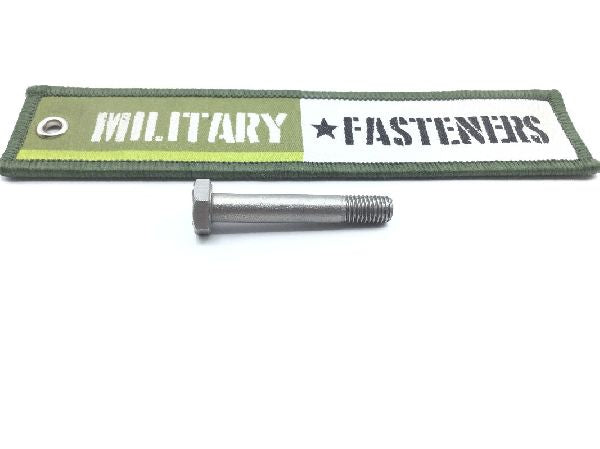

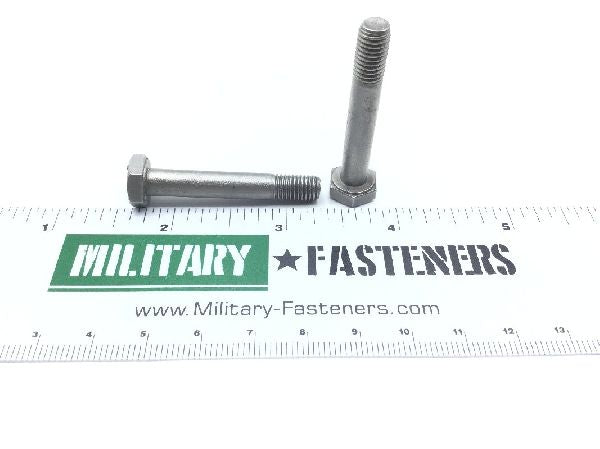

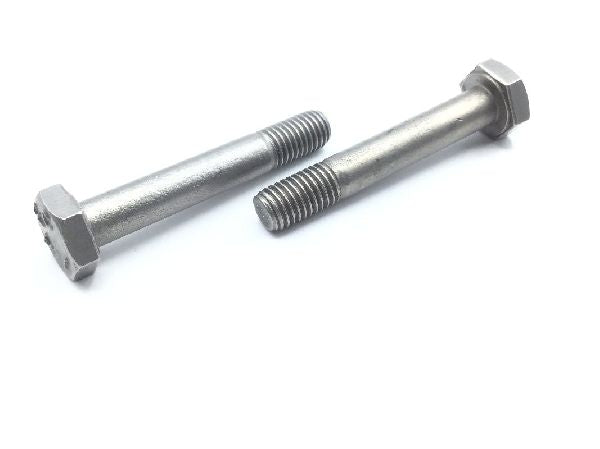

AN4C14A Machine Bolt

NSN: 5306-00-156-2344
Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $6.04

Units per Pack 10

Price per Pack $60.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $60.40

Add item to quote

Head Style

Hexagon

Material

Stainless Steel

Thread Class

Fastener Length: 1.531 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 1.062 inches
Head Height: Between 0.140 inches and 0.172 inches
Material Specification: Qq-s-770 federal specification single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: 0.469 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.440 inches
