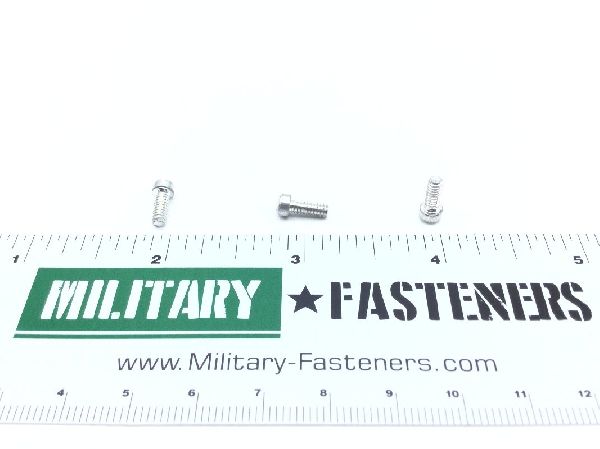

AN500-4-5 Machine Screw

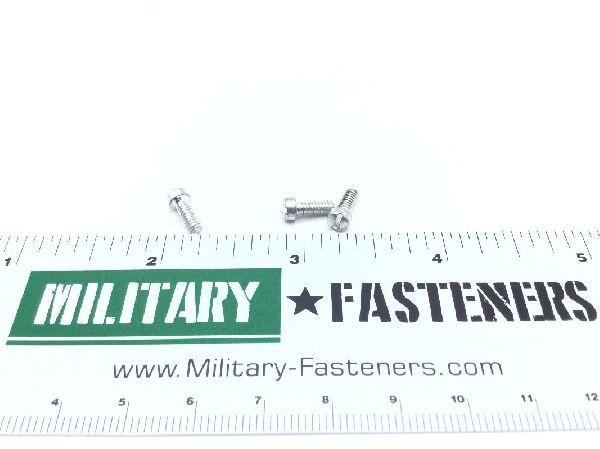

AN500-4-5 Machine Screw (2)

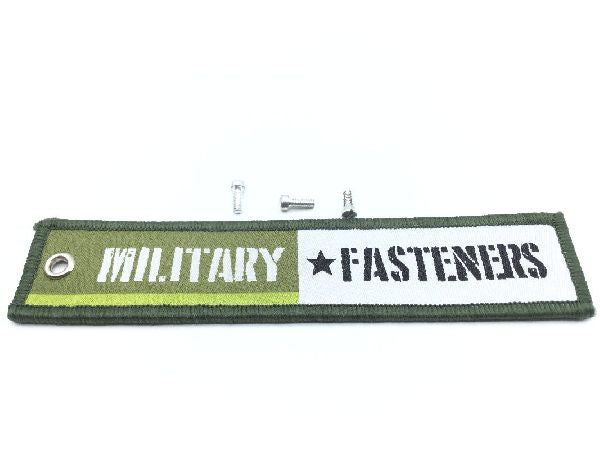

AN500-4-5 Machine Screw (3)
AN500-4-5 Machine Screw (4)

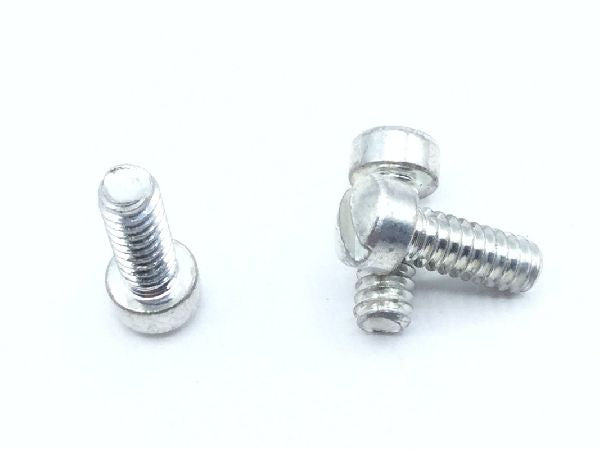

AN500-4-5 Machine Screw (5)

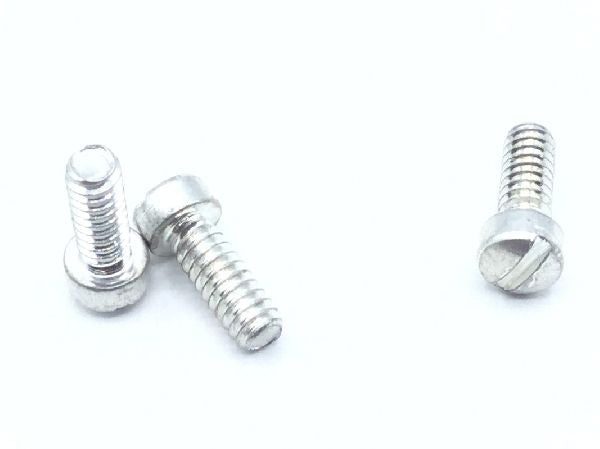

AN500-4-5 Machine Screw (6)
AN500-4-5 Machine Screw
AN500-4-5 Machine Screw (2)
AN500-4-5 Machine Screw (3)
AN500-4-5 Machine Screw (4)
AN500-4-5 Machine Screw (5)
AN500-4-5 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN500-4-5 Machine Screw

Product Series
AN
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $0.81
Units per Pack 50
Price per Pack $40.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $40.50
Add item to quote
Head Style
Fillister
Thread Class
2a
Fastener Length
Between 0.281 inches and 0.312 inches
Head Height
Between 0.072 inches and 0.079 inches
Internal Drive Style
Cross recess type 1
Min. Tensile Strength (psi)
60000 pounds per square inch
Screw Material
Steel
Screw Material Specification
Qq-s-630 federal specification 2nd material response or qq-s-631 federal specification 2nd material response or qq-s-634 federal specification 2nd material response
Screw Surface Treatment
Cadmium
Screw Surface Treatment Specification
Cl 3 federal specification single treatment response type 1 qq-p-416
Thread Diameter
0.112 inches
Thread Direction
Right-hand
Thread Length
Between 0.262 inches and 0.312 inches
Thread Qty Per Inch (tpi)
40
Thread Series Designator
Unc (coarse thread)
Head Diameter
Between 0.166 inches and 0.183 inches
