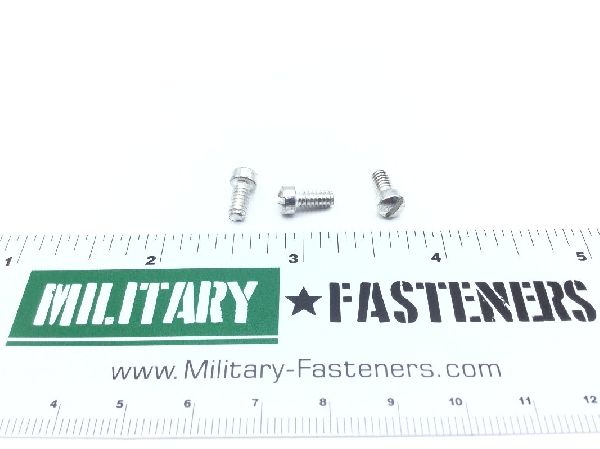

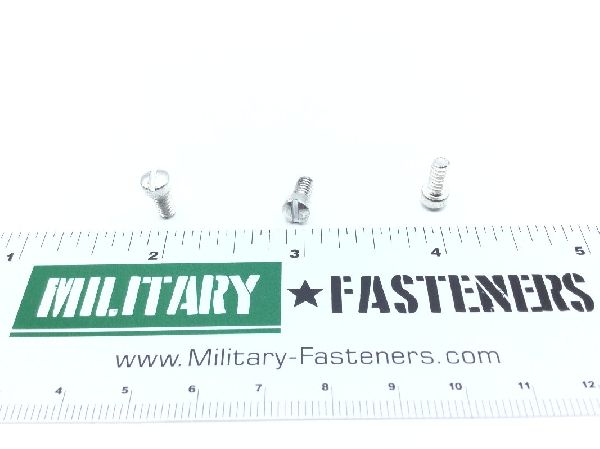

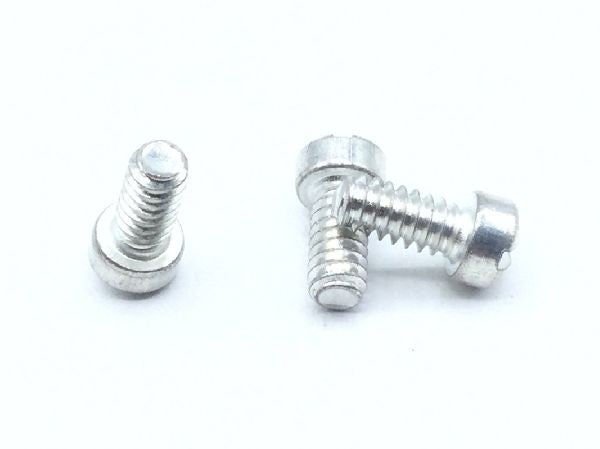

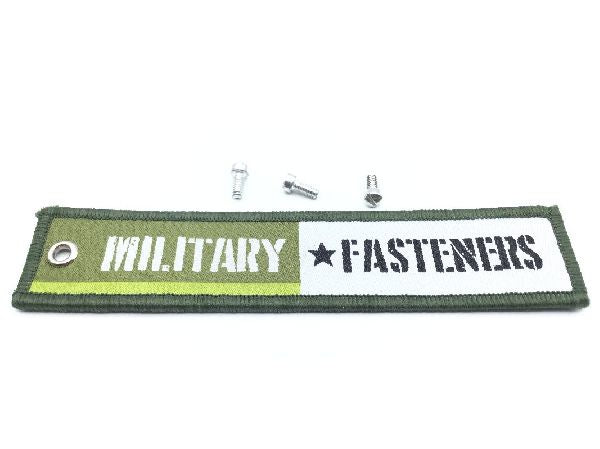

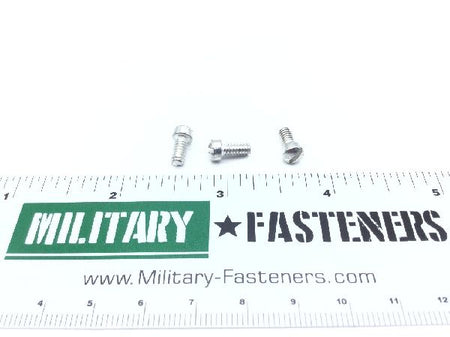

AN500-6-5 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.77

Units per Pack 50

Price per Pack $38.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $38.50

Add item to quote

Head Style

Fillister

Surface Treatment

Class 3 federal specification 2nd treatment response type 1 cl 3 federal specification 1st treatment response or qq-z-325 type 1 qq-p-416

Thread Class

2a

Fastener Length: Between 0.281 inches and 0.312 inches
Head Height: Between 0.086 inches and 0.096 inches
Internal Drive Style: Cross recess type 1
Material Specification: Sae assn standard all material responses
Thread Diameter: 0.138 inches
Thread Length: Between 0.25 inches and 0.312 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.208 inches and 0.226 inches
