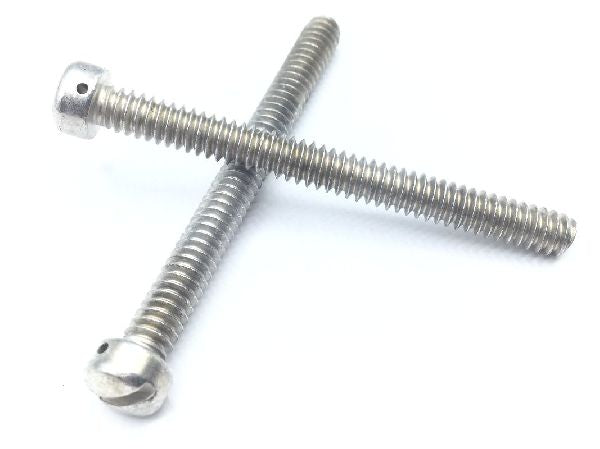

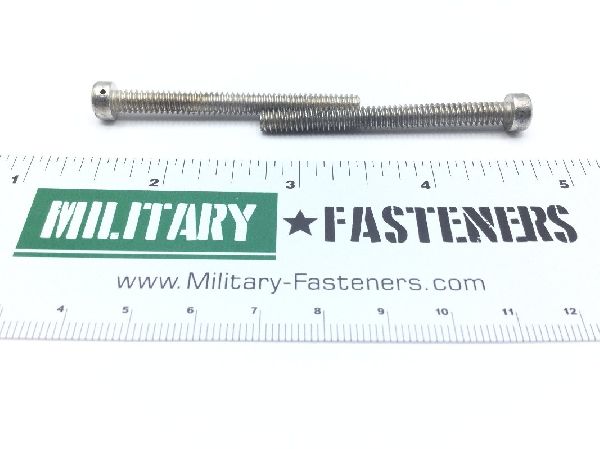

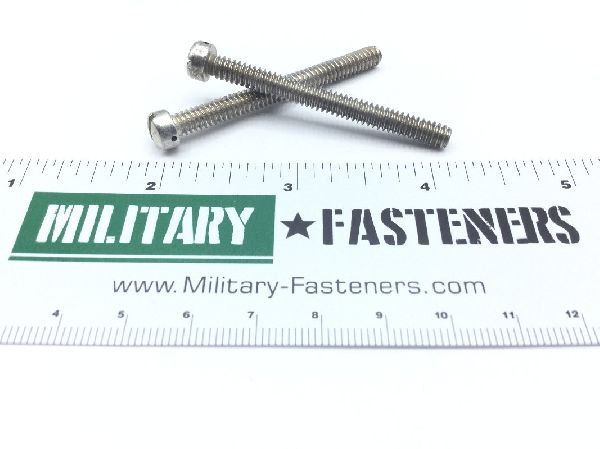

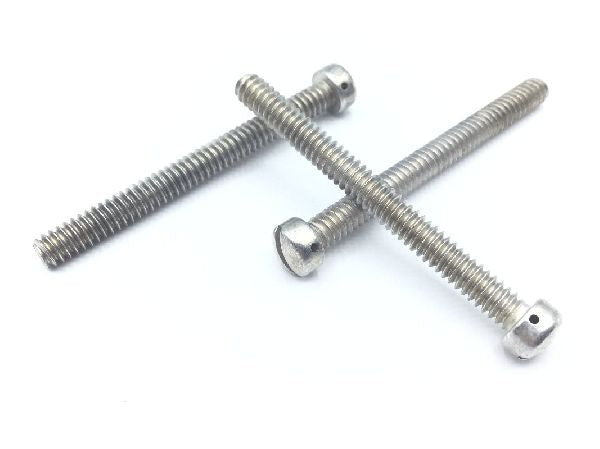

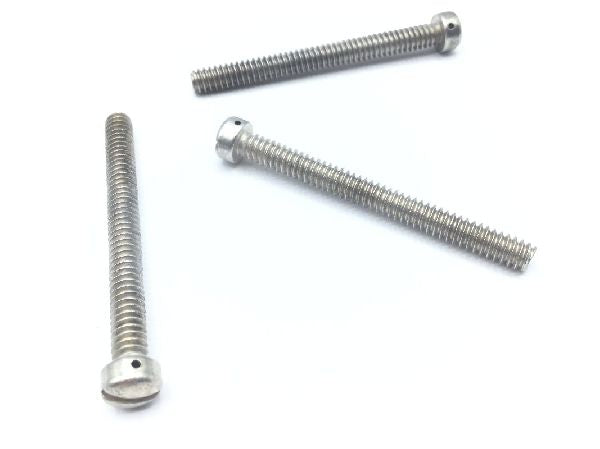

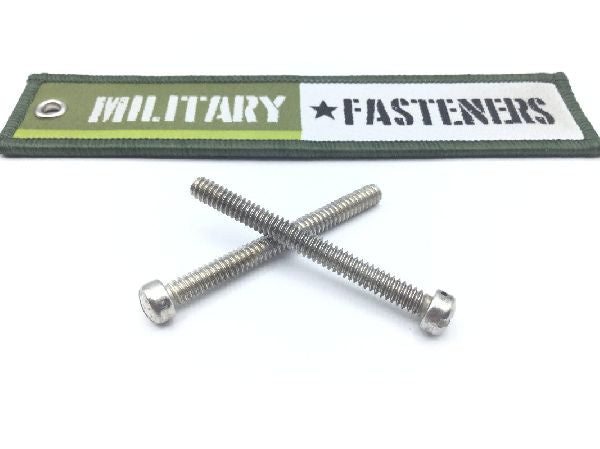

AN500A10-32 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $10.05

Units per Pack 5

Price per Pack $50.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $50.25

Add item to quote

Head Style

Fillister

Thread Class

Fastener Length: Between 1.938 inches and 2.000 inches
Head Height: Between 0.123 inches and 0.130 inches
Head Hole Configuration Style: Round longitudinal hole
Hole Quantity: 1
Internal Drive Style: Slot
Min. Tensile Strength (psi): 60000 pounds per square inch
Nondefinitive Specification/std Data: 1 type and 5s style
Screw Material: Steel comp 1010
Screw Material Specification: Qq-s-633 federal specification single material response
Screw Surface Treatment: Cadmium
Screw Surface Treatment Specification: Cl 3 federal specification single treatment response type 1 qq-p-416
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 1.938 inches and 2.000 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.292 inches and 0.313 inches
Hole Diameter: 0.047 inches
