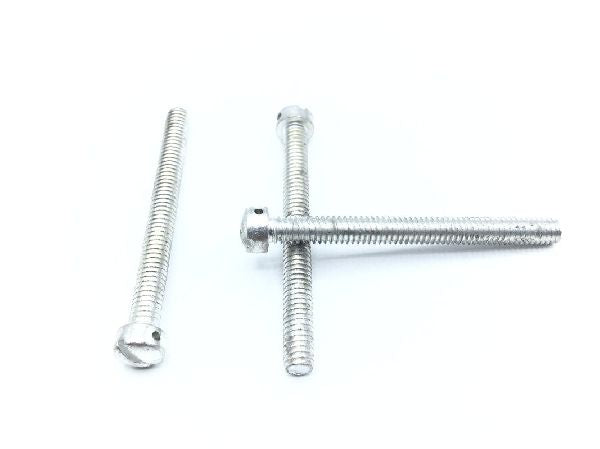

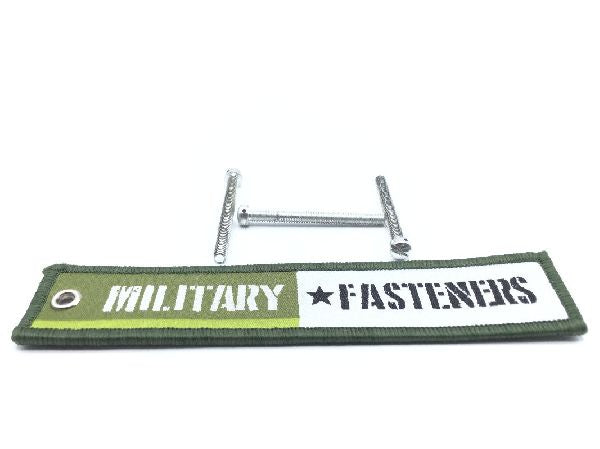

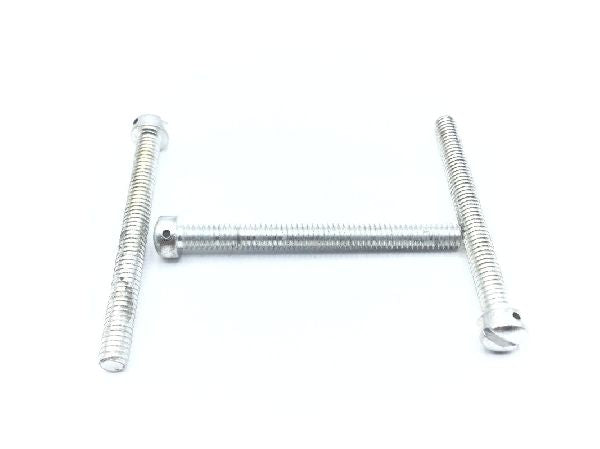

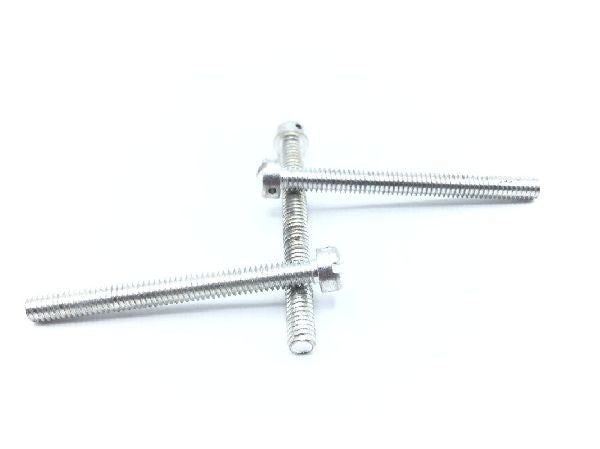

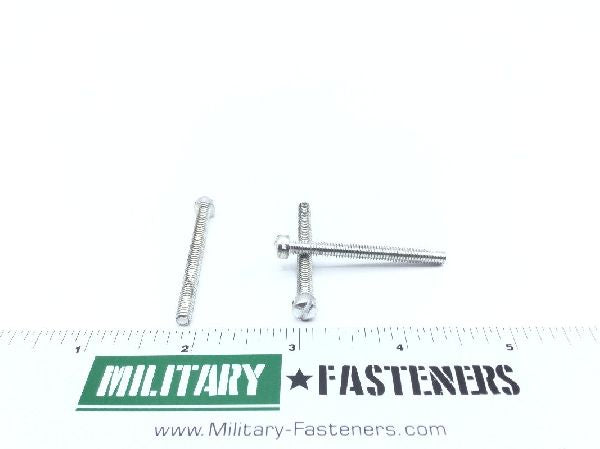

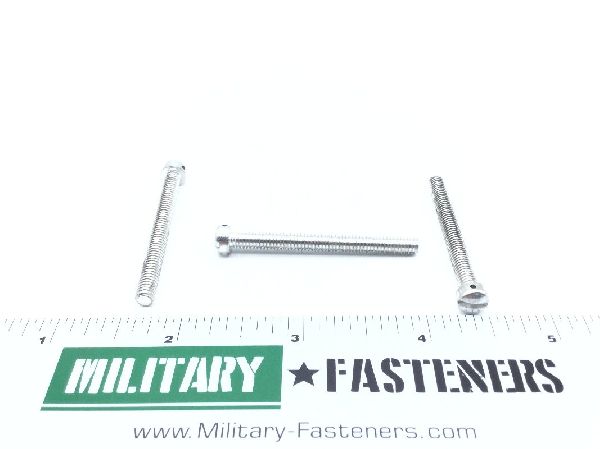

AN500A8-28 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $7.62

Units per Pack 10

Price per Pack $76.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $76.20

Add item to quote

Head Style

Fillister

Thread Class

Fastener Length: 1.750 inches
Head Height: Between 0.106 inches and 0.113 inches
Head Hole Configuration Style: Round
Hole Quantity: 1
Internal Drive Style: Slot
Min. Tensile Strength (psi): 55000 pounds per square inch
Screw Material: Steel
Screw Material Specification: Qq-s-633 federal specification single material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Class 3 federal specification all treatment responses type 2 qq-p-416
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 1.688 inches and 1.750 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.250 inches and 0.270 inches
Hole Diameter: 0.046 inches
