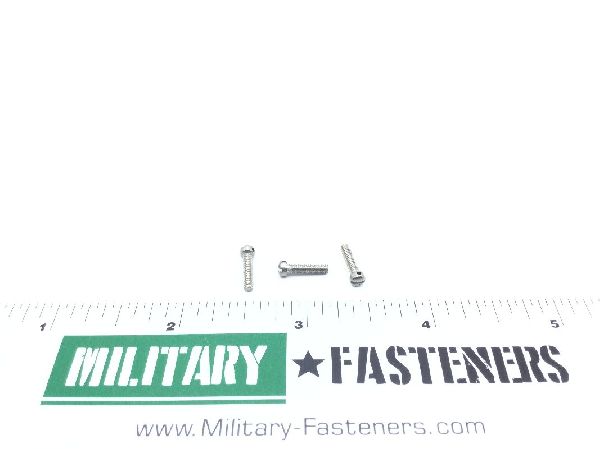

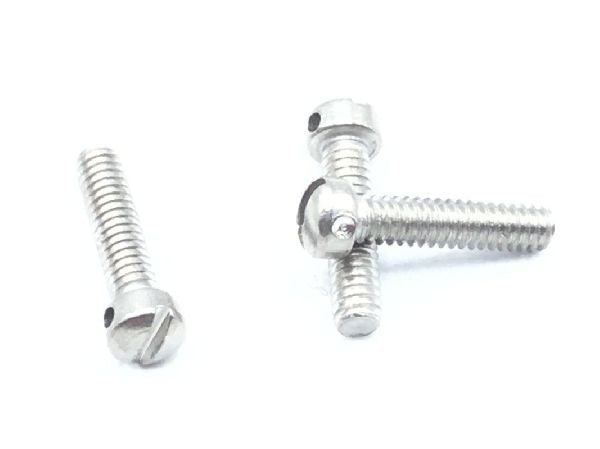

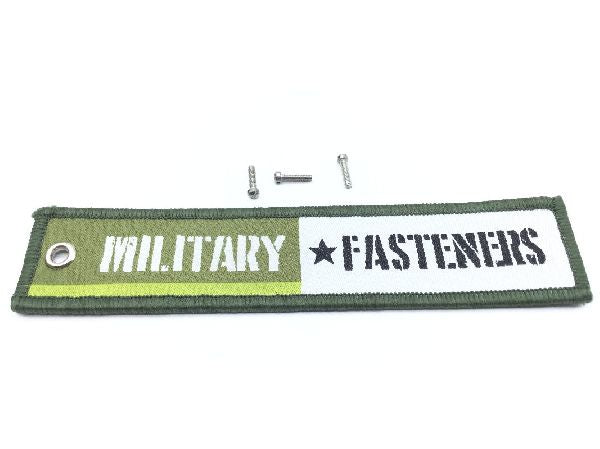

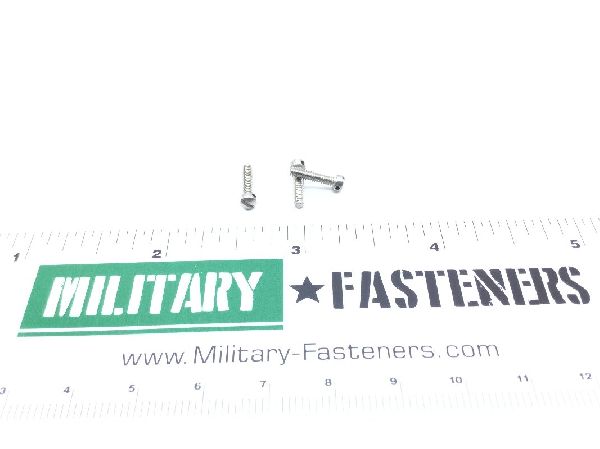

AN500AD2-6 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.82

Units per Pack 50

Price per Pack $41.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $41.00

Add item to quote

Head Style

Fillister

Thread Class

Fastener Length: 0.375 inches
Head Height: Between 0.055 inches and 0.062 inches
Head Hole Configuration Style: Round
Hole Quantity: 1
Internal Drive Style: Cross recess type 1
Screw Material: Steel comp 302 or steel comp 303se or steel comp 304 or steel comp 316
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Passivate
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.339 inches and 0.375 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.124 inches and 0.140 inches
Hole Diameter: 0.031 inches
