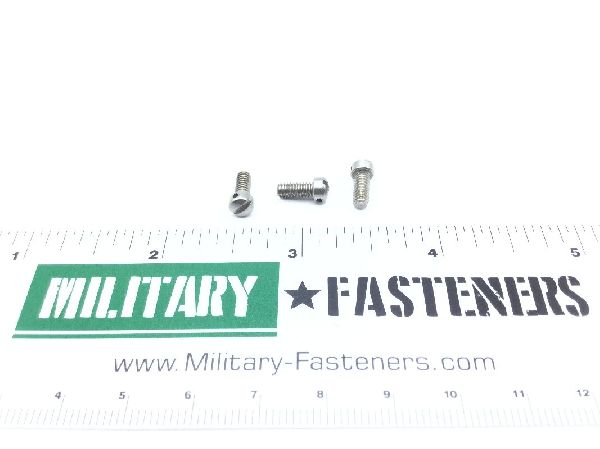

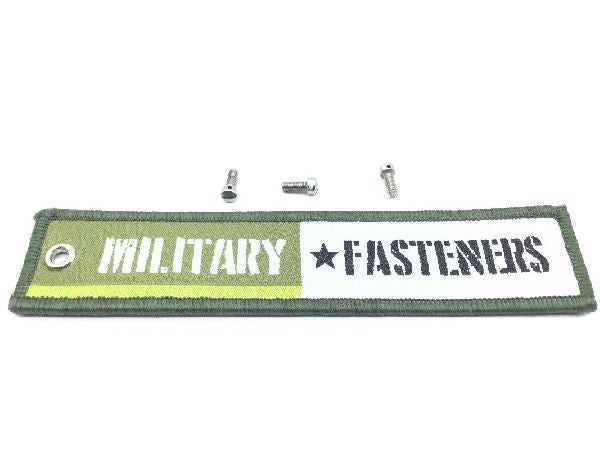

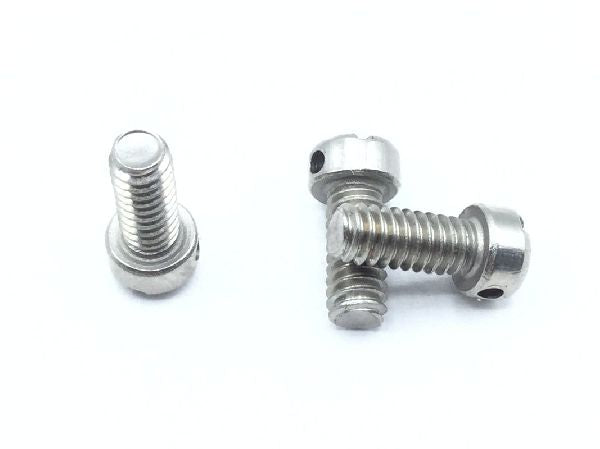

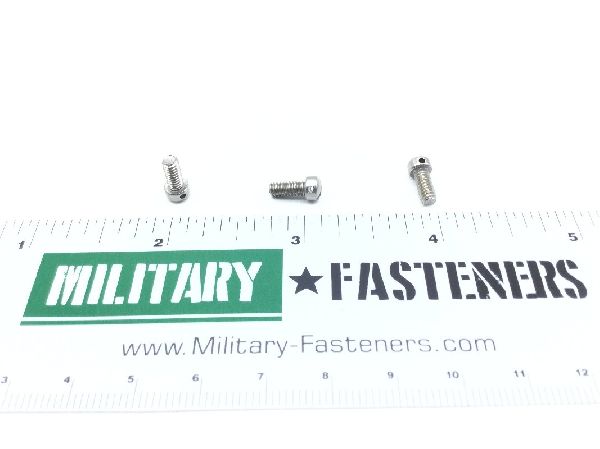

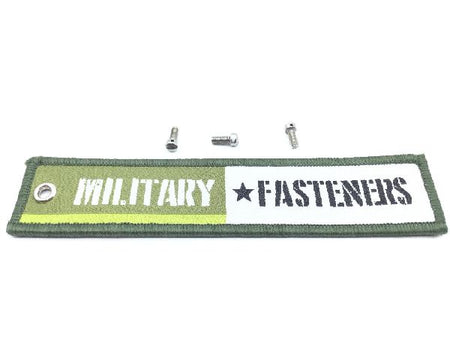

AN500AD5-5 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.73

Units per Pack 25

Price per Pack $43.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $43.25

Add item to quote

Head Style

Fillister

Material

Steel comp

Thread Class

Fastener Length: Between 0.281 inches and 0.312 inches
Head Height: Between 0.081 inches and 0.088 inches
Head Hole Configuration Style: Round
Hole Quantity: 1
Internal Drive Style: Cross recess type 1
Material Specification: 66 federal standard all material responses
Thread Diameter: 0.125 inches
Thread Direction: Right-hand
Thread Length: Between 0.262 inches and 0.312 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.187 inches and 0.205 inches
Hole Diameter: 0.046 inches
